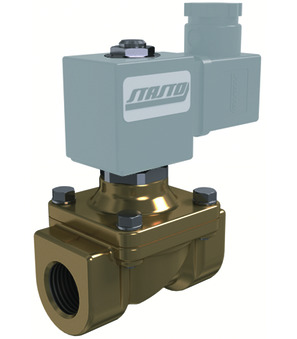

21HT4K0V160-BDA08223DS
21HT4K0V160-BDA08110DS-C003-32-LV-1
21HT4K0V160-BDA08110DS-C003-32-LV-1
142,42 €
142,42 €
21HT4K0V160-BDA08223DS-C003-32-6
21HT4K0V160-BDA08223DS-C003-32-6
133,63 €
133,63 €

21HT4K0V160-BDA08223DS

21HT4K0V160
2/2-way solenoid valve series 21H..K0V; combined operated; NC; body brass; stainless steel tube; seal FKM; connector size 32mm; G 1/2"; DN 16mm; pressure AC 0-14bar; pressure DC 0-2,5bar; medium -10/+120°C; length 70mm; standard coil BDA
BDA08223DS
coil type BDA; standard; connector size 32mm; voltage 220-230V/50-60Hz

Intrastat No.: 84818099
Country of origin: Italy
Weight: 0.55 Kg
Short Itemnumber:21HT4K0V160BDA08223DS
https://www.stasto.eu/web/image/product.template/217990/image_1920?unique=88bc4be

21HT4K0V160
2/2-way solenoid valve series 21H..K0V; combined operated; NC; body brass; stainless steel tube; seal FKM; connector size 32mm; G 1/2"; DN 16mm; pressure AC 0-14bar; pressure DC 0-2,5bar; medium -10/+120°C; length 70mm; standard coil BDA
BDA08223DS
coil type BDA; standard; connector size 32mm; voltage 220-230V/50-60Hz

131,32 € 131.32 EUR 131,32 €

price on request

  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Pressure AC
  • Pressure DC
  • Seal
  • Coil
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 1/2"
DN 16 mm
Length 70 mm
Designs
Connector size 32 mm
Electrical key figures
Voltage 220-230V/50-60Hz
Voltage type AC
pressure
Pressure AC 0...14 bar
Pressure DC 0...2,5 bar
materials
Seal FKM
characteristics
Coil BDA
Medium temperature -10...+120 °C
Approval CE
