2/2-way solenoid valve 21HF8K0B400-GDV

Price.

324,30 €
2/2-way solenoid valve Series 21H..K0Y Store
  1. Products
  2. Armatures
  3. Solenoid valves for liquids and gases
  4. 2/2-way solenoid valves - combined operated
  5. 2/2-way solenoid valve Series 21H..K0Y
  6. 21HF8K0B400-GDV

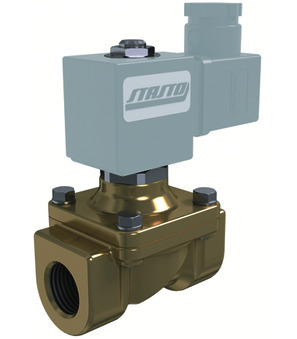

2/2-way solenoid valve 21HF8K0B400-GDV
21HF8K0B400-BDA08223DS-C003-32-LV-1
21HF8K0B400-BDA08223DS-C003-32-LV-1
355,40 €
355,40 €
2/2-way solenoid valve 21IH8K1V400-S-GDV-GDH14012CS-C003-32-LV-2
2/2-way solenoid valve 21IH8K1V400-S-GDV-GDH14012CS-C003-32-LV-2
967,60 €
967,60 €

2/2-way solenoid valve 21HF8K0B400-GDV

2/2-way solenoid valve Series 21H..K0Y; Combined operated; NC; Body Brass; Stainless steel tube; Seal NBR; Medium temperature -10...+90°C; Connector size 32mm; G 11/2"; DN 40mm; Pressure AC 0-16bar; Pressure DC 0-6bar; Length 128mm; Standard coil GDV

Intrastat No.: 84812090
Country of origin: Italy
Weight: 2.09 Kg
Short Itemnumber:21HF8K0B400GDV
https://www.stasto.eu/web/image/product.template/118294/image_1920?unique=e04ce20

2/2-way solenoid valve series 21H..K0Y; combined operated; NC; body brass; stainless steel tube; seal NBR; medium temperature -10...+90°C; connector size 32mm; G 11/2"; DN 40mm; pressure AC 0-16bar; pressure DC 0-6bar; length 128mm; standard coil GDV

324,30 € 324.3 EUR 324,30 €

price on request

  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Pressure AC
  • Pressure DC
  • Seal
  • Coil
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 1 1/2"
DN 40 mm
Length 128 mm
Designs
Connector size 32 mm
pressure
Pressure AC 0...16 bar
Pressure DC 0...6 bar
materials
Seal NBR
characteristics
Coil GDV
Medium temperature -10...+90 °C
