STASTO Allgemeine Preisliste (EUR)
21HF7K0B350-GDV-GDV14024DY-C003-31-CV20-6

21HF7K0B350-GDV-GDV14024DY-C003-31-CV20-6

21HF7K0B350-GDV

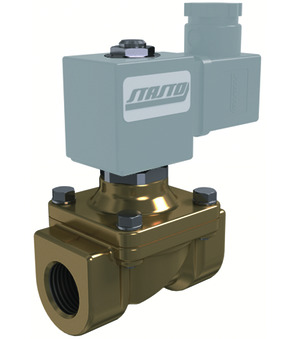

2/2-way solenoid valve Series 21H..K0Y; Combined operated; NC; Body Brass; Stainless steel tube; Seal NBR; Medium temperature -10...+90°C; Connector size 32mm; G 11/4"; DN 35mm; Pressure AC 0-16bar; Pressure DC 0-6bar; Length 128mm; Standard coil GDV
GDV14024DY
Coil Type GDV/GDH; For higher pressures/temperatures; Connector size 32mm; Voltage 24V/50-60Hz; Approval CSA/UL/VDE
C003-31-CV20-6
Connector; Connector size 32mm; With moulded PVC-cable (2 m); Voltage 0...250VAC/DC

2/2-Wege-Magnetventil Serie 21H..K0Y
Intrastat No.: 84812090
Country of origin: Italy Made in Europe
Weight: 3.02 Kg
Short Itemnumber: 21HF7K0B350GDVGDV14024DYC00331CV206
https://www.stasto.eu/web/image/product.template/193739/image_1920?unique=e04ce20

21HF7K0B350-GDV
2/2-way solenoid valve series 21H..K0Y; combined operated; NC; body brass; stainless steel tube; seal NBR; medium temperature -10...+90°C; connector size 32mm; G 11/4"; DN 35mm; pressure AC 0-16bar; pressure DC 0-6bar; length 128mm; standard coil GDV
GDV14024DY
coil type GDV/GDH; for higher pressures/temperatures; connector size 32mm; voltage 24V/50-60Hz; approval CSA/UL/VDE
C003-31-CV20-6
connector; connector size 32mm; with moulded PVC-cable (2 m); voltage 0...250VAC/DC

378,30 € 378.3 EUR 378,30 €

Not Available For Sale

excl. tax
  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Pressure AC
  • Pressure DC
  • Seal
  • Coil
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Female thread G 1 1/4"
DN 35 mm
Length 128 mm
Pressure AC 0...16 bar
All specifications (10)
Documents
Data sheets, drawings and CAD files
Female thread G 1 1/4"
DN 35 mm
Length 128 mm
Pressure AC 0...16 bar
Pressure DC 0...6 bar
Seal NBR
Medium temperature -10...+90 °C
Voltage 24V/50-60Hz
Approval UL/CSA/VDE
Design With moulded PVC-cable (2 m)
