STASTO Allgemeine Preisliste (EUR)
2/2-way solenoid valve Series SL200, 21H Store
  1. Products
  2. Armatures
  3. Solenoid valves for liquids and gases
  4. 2/2-way solenoid valves - pilot operated
  5. 2/2-way solenoid valve Series SL200, 21H
  6. 21H9KB180-BDV08024CY-C003-32-6

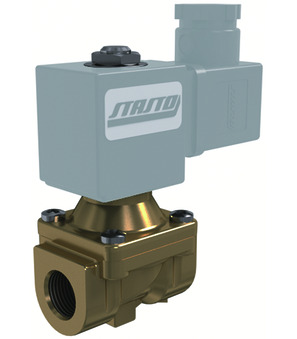

21H9KB180-BDV08024CY-C003-32-6

21H9KB180-BDV08024CY-C003-32-6

21H9KB180
2/2-way solenoid valve Series SL200, 21H; pilot-operated; NC; Body brass; Gasket NBR; Medium temperature -10...+90°C; Standard coil BDA; Plug width 32mm; G 3/4"; DN 18mm; Pressure AC 0,1...16bar; Pressure DC 0,1...6bar; Overall length 65mm
BDV08024CY
Solenoid coil Type BDV; for humid environments; Authorisation CSA/UL/VDE; Plug width 32mm; Tension 24VDC
C003-32-6
Cable plug; Plug width 32mm; Standard; Tension 0...250VAC/DC

Intrastat No.: 84818099
Country of origin: Italy
Weight: 0.77 Kg
Short Itemnumber: 21H9KB180BDV08024CYC003326
https://www.stasto.eu/web/image/product.template/221005/image_1920?unique=d8b08ef

21H9KB180
2/2-way solenoid valve Series SL200, 21H; pilot-operated; NC; Body brass; Gasket NBR; Medium temperature -10...+90°C; Standard coil BDA; Plug width 32mm; G 3/4"; DN 18mm; Pressure AC 0,1...16bar; Pressure DC 0,1...6bar; Overall length 65mm
BDV08024CY
Solenoid coil Type BDV; for humid environments; Authorisation CSA/UL/VDE; Plug width 32mm; Tension 24VDC
C003-32-6
Cable plug; Plug width 32mm; Standard; Tension 0...250VAC/DC

108,80 € 108.8 EUR 108,80 €

price on request

  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Pressure AC
  • Pressure DC
  • Seal
  • Coil
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
Contact Us

Share

dimension
Female thread G 3/4"
DN 18 mm
Length 65 mm
Designs
Connector size 32 mm
design
Design Standard
Electrical key figures
Voltage 24VDC
Voltage type DC
pressure
Pressure AC 0,1...16 bar
Pressure DC 0,1...6 bar
materials
Seal NBR
characteristics
Coil BDV
Medium temperature -10...+90 °C
Approval UL/CSA/VDE
