STASTO Allgemeine Preisliste (EUR)
21H9KB180-BDA08012CS-C003-31-CV20-6

21H9KB180-BDA08012CS-C003-31-CV20-6

21H9KB180

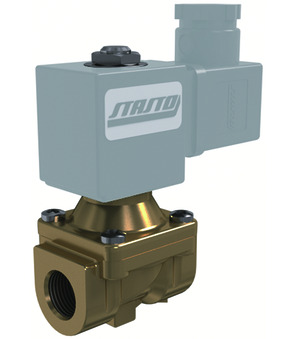

2/2-way solenoid valve Series SL200, 21H; Pilot-operated; NC; Body Brass; Seal NBR; Medium temperature -10...+90°C; Standard coil BDA; Connector size 32mm; G 3/4"; DN 18mm; Pressure AC 0,1...16bar; Pressure DC 0,1...6bar; Length 65mm
BDA08012CS
Coil Type BDA; Standard; Connector size 32mm; Voltage 12VDC
C003-31-CV20-6
Connector; Connector size 32mm; With moulded PVC-cable (2 m); Voltage 0...250VAC/DC

2/2-Wege-Magnetventil Serie SL200, 21H
Intrastat No.: 84818099
Country of origin: Italy
Weight: 0.88 Kg
Short Itemnumber: 21H9KB180BDA08012CSC00331CV206
https://www.stasto.eu/web/image/product.template/191619/image_1920?unique=d8b08ef

21H9KB180
2/2-way solenoid valve series SL200, 21H; pilot-operated; NC; body brass; seal NBR; medium temperature -10...+90°C; standard coil BDA; connector size 32mm; G 3/4"; DN 18mm; pressure AC 0,1...16bar; pressure DC 0,1...6bar; length 65mm
BDA08012CS
coil type BDA; standard; connector size 32mm; voltage 12VDC
C003-31-CV20-6
connector; connector size 32mm; with moulded PVC-cable (2 m); voltage 0...250VAC/DC

112,40 € 112.4 EUR 112,40 €

Not Available For Sale

excl. tax
  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Pressure AC
  • Pressure DC
  • Seal
  • Coil
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Female thread G 3/4"
DN 18 mm
Length 65 mm
Pressure AC 0,1...16 bar
All specifications (11)
Documents
Data sheets, drawings and CAD files
Female thread G 3/4"
DN 18 mm
Length 65 mm
Pressure AC 0,1...16 bar
Pressure DC 0,1...6 bar
Seal NBR
Medium temperature -10...+90 °C
Voltage 12VDC
Voltage type DC
Design With moulded PVC-cable (2 m)
Approval CE

21H9KB180-BDA08012CS-C003-31-CV20-6

Documents

11 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

4

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

4
Danish / Dansk
ZIP

Data Sheets

4

CAD / 3D

4
German / Deutsch
ZIP

Data Sheets

4

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

4
Greek / Ελληνικά
ZIP

Data Sheets

4

CAD / 3D

4
English
ZIP

Data Sheets

4

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

4
Spanish / Español
ZIP

Data Sheets

4

CAD / 3D

4
Finnish / Suomi
ZIP

Data Sheets

4

CAD / 3D

4
French / Français
ZIP

Data Sheets

4

CAD / 3D

4
Croatian / hrvatski jezik
ZIP

Data Sheets

4

CAD / 3D

4
Hungarian / Magyar
ZIP

Data Sheets

4

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

4
Italian / Italiano
ZIP

Data Sheets

4

CAD / 3D

4
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

4

CAD / 3D

4
Dutch / Nederlands
ZIP

Data Sheets

4

CAD / 3D

4
Polish / Język polski
ZIP

Data Sheets

4

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

4
Romanian / română
ZIP

Data Sheets

4

CAD / 3D

4
Slovenian / slovenščina
ZIP

Data Sheets

4

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

4
Serbian (Latin) / srpski
ZIP

Data Sheets

4

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

4
Swedish / Svenska
ZIP

Data Sheets

4

CAD / 3D

4
2/2-way solenoid valve 21H9KB180
21H9KB180 x 1.0 Pcs
2/2-way solenoid valve 21H9KB180
2/2-way solenoid valve Series SL200, 21H; Pilot-operated; NC; Body Brass; Seal NBR; Medium temperature -10...+90°C; Standard coil BDA; Connector size 32mm; G 3/4"; DN 18mm; Pressure AC 0,1...16bar; Pressure DC 0,1...6bar; Length 65mm
BDA08012CS
BDA08012CS x 1.0 Pcs
BDA08012CS
Coil Type BDA; Standard; Connector size 32mm; Voltage 12VDC
C003-31-CV20-6
C003-31-CV20-6 x 1.0 Pcs
C003-31-CV20-6
Connector; Connector size 32mm; With moulded PVC-cable (2 m); Voltage 0...250VAC/DC
