21A8KV45-GDV14230AY-C003-32-6

Price.

119,90 €
2/2-way solenoid valve Series 21A.K Store
  1. Products
  2. Armatures
  3. Solenoid valves for liquids and gases
  4. 2/2-way solenoid valves - directly operated
  5. 2/2-way solenoid valve Series 21A.K
  6. 21A8KV45-GDV14230AY-C003-32-6

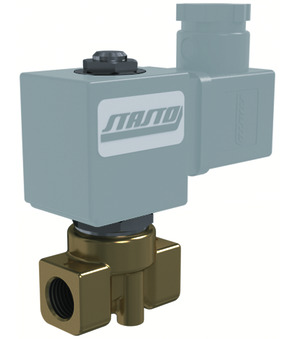

21A8KV45-GDV14230AY-C003-32-6
21A8KV45-GDV14024CY-C003-32-LV-2
21A8KV45-GDV14024CY-C003-32-LV-2
125,40 €
125,40 €
21A8KV45-BDA08223DS-C003-32-6
21A8KV45-BDA08223DS-C003-32-6
83,60 €
83,60 €

21A8KV45-GDV14230AY-C003-32-6

21A8KV45
2/2-way solenoid valve series 21A; directly operated; NC; body brass; tube stainless steel one-piece; seal FKM; medium temperature -10...+120°C; standard coil BDA; connector size 32mm; G 1/2"; DN 4,5mm; pressure AC 0...5bar; pressure DC 0...2bar; length 58mm
GDV14230AY
coil type GDV/GDH; for higher pressures/temperatures; connector size 32mm; voltage 230V/50Hz, 240V/60Hz; approval CSA/UL/VDE
C003-32-6
connector; connector size 32mm; standard; voltage 0...250VAC/DC

Intrastat No.: 84818099
Country of origin: Italy
Weight: 0.63 Kg
Short Itemnumber:21A8KV45GDV14230AYC003326
https://www.stasto.eu/web/image/product.template/220194/image_1920?unique=29ba511

21A8KV45
2/2-way solenoid valve series 21A; directly operated; NC; body brass; tube stainless steel one-piece; seal FKM; medium temperature -10...+120°C; standard coil BDA; connector size 32mm; G 1/2"; DN 4,5mm; pressure AC 0...5bar; pressure DC 0...2bar; length 58mm
GDV14230AY
coil type GDV/GDH; for higher pressures/temperatures; connector size 32mm; voltage 230V/50Hz, 240V/60Hz; approval CSA/UL/VDE
C003-32-6
connector; connector size 32mm; standard; voltage 0...250VAC/DC

119,90 € 119.9 EUR 119,90 €

price on request

  • Female thread
  • DN
  • Length
  • Connector size
  • Type of coil 2
  • Design
  • Voltage
  • Voltage type
  • Pressure AC
  • Pressure DC
  • Seal
  • Coil
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 1/2"
DN 4,5 mm
Length 58 mm
Designs
Connector size 32 mm
design
Design Standard
Electrical key figures
Voltage 230V/50Hz-240V/60Hz
pressure
Pressure AC 0...5 bar
Pressure DC 0...2 bar
materials
Seal FKM
characteristics
Coil BDA
Medium temperature -10...+120 °C
Approval UL/CSA/VDE

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
3
Data sheet_2/2-way solenoid valve Series 21A.K_EN.pdf
Download
Data sheet_Coil Type GDV/GDH_EN.pdf
GDV14230AY
Download
Data sheet_Connector_EN.pdf
C003-32-6
Download
Assembly and Operating Instructions
1
Assembly and operating instructions_2/2-way solenoid valves - directly operated_EN.pdf
Download
Declarations of Conformity
2
Declaration of conformity_2/2-way solenoid valves - directly operated_EN.pdf
Download
Declaration of conformity_Coil Type GDV/GDH_EN.pdf
GDV14230AY
Download
CAD / 3D
2
CADSTEP_C003326.stp
C003-32-6
Download
CADSTEP_GDV14230AY.stp
GDV14230AY
Download

ZIP
Datové listy
3
Datový list_2/2 cestný elektromagnetický ventil série 21A.K_CS.pdf
Download
Datový list_konektor_CS.pdf
C003-32-6
Download
Datový list_magnetická cívka typ GDV/GDH_CS.pdf
GDV14230AY
Download
Montážní a provozní návody
1
Návod k montáži a obsluze_2/2-cestné elektromagnetické ventily - přímo řízené_CS.pdf
Download
Prohlášení o shodě
2
Prohlášení o shodě_2/2-cestné elektromagnetické ventily - přímo řízené_CS.pdf
Download
Prohlášení o shodě_magnetická cívka typ GDV/GDH_CS.pdf
GDV14230AY
Download

ZIP
Data Sheets
3
Datablad_2/2-vejs magnetventil Serie 21A.K_DA_DK.pdf
Download
Datablad_Apparatstikdåse_DA_DK.pdf
C003-32-6
Download
Datablad_Magnetspole Type GDV/GDH_DA_DK.pdf
GDV14230AY
Download

ZIP
Datenblätter
3
Datenblatt_2/2-Wege-Magnetventil Serie 21A.K_DE.pdf
Download
Datenblatt_Gerätesteckdose_DE.pdf
C003-32-6
Download
Datenblatt_Magnetspule Typ GDV/GDH_DE.pdf
GDV14230AY
Download
Montage- und Betriebsanleitungen
1
Montage- und Betriebsanleitung_2/2-Wege Magnetventile - direktgesteuert_DE.pdf
Download
Konformitätserklärungen
2
Konformitätserklärung_2/2-Wege Magnetventile - direktgesteuert_DE.pdf
Download
Konformitätserklärung_Magnetspule Typ GDV/GDH_DE.pdf
GDV14230AY
Download

ZIP
Data Sheets
3
Δελτίο δεδομένων_Ηλεκτρομαγνητική βαλβίδα 2/2 οδών Σειρά 21A.K_EL_GR.pdf
Download
Δελτίο δεδομένων_Πηνίο ηλεκτρομαγνήτη Τύπος GDV/GDH_EL_GR.pdf
GDV14230AY
Download
Δελτίο δεδομένων_Συσκευαστική πρίζα συσκευής_EL_GR.pdf
C003-32-6
Download

ZIP
Data Sheets
3
Ficha técnica_Bobina magnética Tipo GDV/GDH_ES.pdf
GDV14230AY
Download
Ficha técnica_Toma de equipo_ES.pdf
C003-32-6
Download
Ficha técnica_Válvula solenoide de 2/2 vías Serie 21A.K_ES.pdf
Download

ZIP
Data Sheets
3
Tietolehti_2/2-tie magneettiventtiili Sarja 21A.K_FI.pdf
Download
Tietolehti_Laiteliitinpistorasia_FI.pdf
C003-32-6
Download
Tietolehti_Magneettikela Tyyppi GDV/GDH_FI.pdf
GDV14230AY
Download

ZIP
Data Sheets
3
Fiche technique_Bobine électromagnétique Type GDV/GDH_FR.pdf
GDV14230AY
Download
Fiche technique_Prise d’appareil_FR.pdf
C003-32-6
Download
Fiche technique_Électrovanne 2/2 voies Série 21A.K_FR.pdf
Download

ZIP
Data Sheets
3
Podatkovni list_2/2-putni elektromagnetski ventil Serija 21A.K_HR.pdf
Download
Podatkovni list_Magnetska zavojnica Tip GDV/GDH_HR.pdf
GDV14230AY
Download
Podatkovni list_Utičnica za uređaj_HR.pdf
C003-32-6
Download

ZIP
Adatlapok
3
Adatlap_2/2-es mágnesszelep sorozat 21A.K_HU.pdf
Download
Adatlap_mágnestekercs típus GDV/GDH_HU.pdf
GDV14230AY
Download
Adatlap_stekker_HU.pdf
C003-32-6
Download
Szerelési és kezelési útmutatók
1
Összeszerelési és kezelési útmutató_2/2-es elektromos vezérlésű útszelepek - közvetlen vezérléssel_HU.pdf
Download
Megfelelőségi nyilatkozatok
2
Megfelelőségi nyilatkozat_2/2-es elektromos vezérlésű útszelepek - közvetlen vezérléssel_HU.pdf
Download
Megfelelőségi nyilatkozat_mágnestekercs típus GDV/GDH_HU.pdf
GDV14230AY
Download

ZIP
Data Sheets
3
Scheda tecnica_Bobina magnetica Tipo GDV/GDH_IT.pdf
GDV14230AY
Download
Scheda tecnica_Elettrovalvola 2/2 vie Serie 21A.K_IT.pdf
Download
Scheda tecnica_Presa per apparecchi_IT.pdf
C003-32-6
Download

ZIP
Data Sheets
3
Datablad_2/2-veis magnetventil Serie 21A.K_NB_NO.pdf
Download
Datablad_Apparatkontakt_NB_NO.pdf
C003-32-6
Download
Datablad_Magnetspole Type GDV/GDH_NB_NO.pdf
GDV14230AY
Download

ZIP
Data Sheets
3
Datasheet_2/2-weg magneetventiel Serie 21A.K_NL.pdf
Download
Datasheet_Apparaatcontactdoos_NL.pdf
C003-32-6
Download
Datasheet_Magneetspoel Type GDV/GDH_NL.pdf
GDV14230AY
Download

ZIP
Karty katalogowe
3
Arkusz danych_2/2-drogowy zawór elektromagnetyczny Seria 21A.K_PL.pdf
Download
Arkusz danych_cewka elektromagnetyczna typ GDV/GDH_PL.pdf
GDV14230AY
Download
Arkusz danych_wtyczka_PL.pdf
C003-32-6
Download
Instrukcje montażu i obsługi
1
Instrukcja montażu i obsługi_2/2-drogowe zawory elektromagnetyczne - sterowanie bezpośrednie_PL.pdf
Download
Deklaracje zgodności
2
Deklaracja zgodności_2/2-drogowe zawory elektromagnetyczne - sterowanie bezpośrednie_PL.pdf
Download
Deklaracja zgodności_cewka elektromagnetyczna typ GDV/GDH_PL.pdf
GDV14230AY
Download

ZIP
Data Sheets
3
Fișă de date_Bobină solenoid tip GDV/GDH_RO.pdf
GDV14230AY
Download
Fișă de date_Supapă electromagnetică cu 2/2 căi serie 21A.K_RO.pdf
Download
Fișă de date_conector_RO.pdf
C003-32-6
Download

ZIP
Podatkovni listi
3
Podatkovni list_2/2-potni magnetni ventil serija 21A.K_SL.pdf
Download
Podatkovni list_Magnetna tuljava Tip GDV/GDH_SL.pdf
GDV14230AY
Download
Podatkovni list_vtičnica_SL.pdf
C003-32-6
Download
Navodila za montažo in uporabo
1
Navodila za montažo in uporabo_2/2-potni magnetni ventili - direktno krmiljeni_SL.pdf
Download
Izjave o skladnosti
2
Izjava o skladnosti_2/2-potni magnetni ventili - direktno krmiljeni_SL.pdf
Download
Izjava o skladnosti_Magnetna tuljava Tip GDV/GDH_SL.pdf
GDV14230AY
Download

ZIP
Data Sheets
3
Tehnički list_2/2-kraki elektromagnetni ventil serije 21A.K_SRLATIN.pdf
Download
Tehnički list_konektor_SRLATIN.pdf
C003-32-6
Download
Tehnički list_namotaj tip GDV/GDH_SRLATIN.pdf
GDV14230AY
Download
Assembly and Operating Instructions
1
Uputstvo za montažu i upotrebu_2/2 elektromagnetni ventili - direktno upravljani_SRLATIN.pdf
Download
Declarations of Conformity
2
Deklaracija o usklađenosti_2/2 elektromagnetni ventili - direktno upravljani_SRLATIN.pdf
Download
Deklaracija o usklađenosti_namotaj tip GDV/GDH_SRLATIN.pdf
GDV14230AY
Download

ZIP
Data Sheets
3
Datablad_2/2-vägs magnetventil Serie 21A.K_SV.pdf
Download
Datablad_Apparatuttag_SV.pdf
C003-32-6
Download
Datablad_Magnetspole Typ GDV/GDH_SV.pdf
GDV14230AY
Download
2/2-way solenoid valve 21A8KV45
21A8KV45 x 1.0
2/2-way solenoid valve 21A8KV45
2/2-way solenoid valve Series 21A; Directly operated; NC; Body Brass; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm; G 1/2"; DN 4,5mm; Pressure AC 0...5bar; Pressure DC 0...2bar; Length 58mm
Add to Cart
GDV14230AY
GDV14230AY x 1.0
GDV14230AY
Coil Type GDV/GDH; For higher pressures/temperatures; Connector size 32mm; Voltage 230V/50Hz, 240V/60Hz; Approval CSA/UL/VDE
Add to Cart
