STASTO Allgemeine Preisliste (EUR)

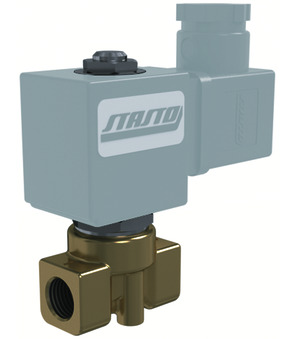

21A3KV20-BDA08012CS-C003-31-CV20-6

21A3KV20-BDA08012CS-C003-31-CV20-6

21A3KV20
2/2-way solenoid valve Series 21A; Directly operated; NC; Body Brass; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm; G 1/8"; DN 2mm; Pressure AC 0-22bar; Pressure DC 0-16bar; Length 40mm
BDA08012CS
Coil Type BDA; Standard; Connector size 32mm; Voltage 12VDC
C003-31-CV20-6
Connector; Connector size 32mm; With moulded PVC-cable (2 m); Voltage 0...250VAC/DC

2/2-Wege-Magnetventil Serie 21A
2/2-Wege-Magnetventil Serie 21A
Intrastat No.: 84818099
Country of origin: Italy
Weight: 0.47 Kg
Short Itemnumber: 21A3KV20BDA08012CSC00331CV206
https://www.stasto.eu/web/image/product.template/190487/image_1920?unique=287ba14

21A3KV20
2/2-way solenoid valve series 21A; directly operated; NC; body brass; tube stainless steel one-piece; seal FKM; medium temperature -10...+120°C; standard coil BDA; connector size 32mm; G 1/8"; DN 2mm; pressure AC 0-22bar; pressure DC 0-16bar; length 40mm
BDA08012CS
coil type BDA; standard; connector size 32mm; voltage 12VDC
C003-31-CV20-6
connector; connector size 32mm; with moulded PVC-cable (2 m); voltage 0...250VAC/DC

87,50 € 87.5 EUR 87,50 €

Not Available For Sale

excl. tax
  • Female thread
  • DN
  • Length
  • Connector size
  • Type of coil 2
  • Design
  • Voltage
  • Voltage type
  • Pressure AC
  • Pressure DC
  • Seal
  • Coil
  • Medium temperature
  • Approval
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Female thread G 1/8"
DN 2,0 mm
Length 40 mm
Pressure AC 0...22 bar
All specifications (11)
Documents
Data sheets, drawings and CAD files
Female thread G 1/8"
DN 2,0 mm
Length 40 mm
Pressure AC 0...22 bar
Pressure DC 0...16 bar
Seal FKM
Medium temperature -10...+120 °C
Voltage 12VDC
Voltage type DC
Design With moulded PVC-cable (2 m)
Approval CE

21A3KV20-BDA08012CS-C003-31-CV20-6

Documents

10 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

4

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

3
Danish / Dansk
ZIP

Data Sheets

4

CAD / 3D

3
German / Deutsch
ZIP

Data Sheets

4

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

3
Greek / Ελληνικά
ZIP

Data Sheets

4

CAD / 3D

3
English
ZIP

Data Sheets

4

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

3
Spanish / Español
ZIP

Data Sheets

4

CAD / 3D

3
Finnish / Suomi
ZIP

Data Sheets

4

CAD / 3D

3
French / Français
ZIP

Data Sheets

4

CAD / 3D

3
Croatian / hrvatski jezik
ZIP

Data Sheets

4

CAD / 3D

3
Hungarian / Magyar
ZIP

Data Sheets

4

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

3
Italian / Italiano
ZIP

Data Sheets

4

CAD / 3D

3
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

4

CAD / 3D

3
Dutch / Nederlands
ZIP

Data Sheets

4

CAD / 3D

3
Polish / Język polski
ZIP

Data Sheets

4

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

3
Romanian / română
ZIP

Data Sheets

4

CAD / 3D

3
Slovenian / slovenščina
ZIP

Data Sheets

4

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

3
Serbian (Latin) / srpski
ZIP

Data Sheets

4

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

3
Swedish / Svenska
ZIP

Data Sheets

4

CAD / 3D

3
2/2-way solenoid valve 21A3KV20
21A3KV20 x 1.0 Pcs
2/2-way solenoid valve 21A3KV20
2/2-way solenoid valve Series 21A; Directly operated; NC; Body Brass; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm; G 1/8"; DN 2mm; Pressure AC 0-22bar; Pressure DC 0-16bar; Length 40mm
BDA08012CS
BDA08012CS x 1.0 Pcs
BDA08012CS
Coil Type BDA; Standard; Connector size 32mm; Voltage 12VDC
C003-31-CV20-6
C003-31-CV20-6 x 1.0 Pcs
C003-31-CV20-6
Connector; Connector size 32mm; With moulded PVC-cable (2 m); Voltage 0...250VAC/DC
