STASTO Allgemeine Preisliste (EUR)
21A2KV30-Y224VDC-2

21A2KV30-Y224VDC-2

21A2KV30

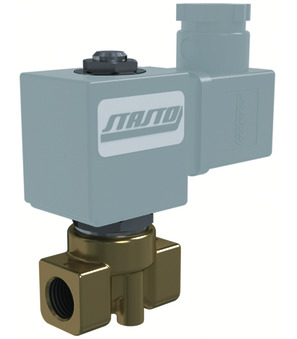

2/2-way solenoid valve Series 21A; directly controlled; NC; Body brass; Guide tube Stainless steel one-piece; Gasket FKM; Medium temperature -10...+120°C; Standard coil BDA; Plug width 32mm; G 1/4"; DN 3mm; Pressure AC 0-10bar; Pressure DC 0-6bar; Overall length 40mm
Y224VDC-2
mounted coil; Solenoid coil Type Y2, ATEX- II 2G Exmb IIC T4/ II 2D Exmb tb IIIC T130°C; Cable length 3 m; Tension 24VDC; Medium temperature max. 80°C

2/2-Wege-Magnetventil Serie 21A
2/2-Wege-Magnetventil Serie 21A
Intrastat No.: 84818099
Country of origin: Hungary
Weight: 0.845 Kg
Short Itemnumber: 21A2KV30Y224VDC2
https://www.stasto.eu/web/image/product.template/221129/image_1920?unique=8837849

21A2KV30
2/2-way solenoid valve Series 21A; directly controlled; NC; Body brass; Guide tube Stainless steel one-piece; Gasket FKM; Medium temperature -10...+120°C; Standard coil BDA; Plug width 32mm; G 1/4"; DN 3mm; Pressure AC 0-10bar; Pressure DC 0-6bar; Overall length 40mm
Y224VDC-2
mounted coil; Solenoid coil Type Y2, ATEX- II 2G Exmb IIC T4/ II 2D Exmb tb IIIC T130°C; Cable length 3 m; Tension 24VDC; Medium temperature max. 80°C

240,40 € 240.4 EUR 240,40 €

Not Available For Sale

excl. tax
  • Female thread
  • DN
  • Length
  • Connector size
  • Type of coil 2
  • Design
  • Voltage
  • Voltage type
  • Pressure AC
  • Pressure DC
  • Seal
  • Coil
  • Medium temperature
  • Approval
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Female thread G 1/4"
DN 3 mm
Length 40 mm
Pressure AC 0...10 bar
All specifications (8)
Documents
Data sheets, drawings and CAD files
Female thread G 1/4"
DN 3 mm
Length 40 mm
Pressure AC 0...10 bar
Pressure DC 0...6 bar
Seal FKM
Medium temperature -10...+120 °C
Design ATEX

21A2KV30-Y224VDC-2

Documents

4 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Danish / Dansk
ZIP

Data Sheets

1

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Greek / Ελληνικά
ZIP

Data Sheets

1

CAD / 3D

1
English
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Spanish / Español
ZIP

Data Sheets

1

CAD / 3D

1
Finnish / Suomi
ZIP

Data Sheets

1

CAD / 3D

1
French / Français
ZIP

Data Sheets

1

CAD / 3D

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Italian / Italiano
ZIP

Data Sheets

1

CAD / 3D

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1

CAD / 3D

1
Dutch / Nederlands
ZIP

Data Sheets

1

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Romanian / română
ZIP

Data Sheets

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

Declarations of Conformity

1

CAD / 3D

1
Swedish / Svenska
ZIP

Data Sheets

1

CAD / 3D

1
2/2-way solenoid valve 21A2KV30
21A2KV30 x 1.0 Pcs
2/2-way solenoid valve 21A2KV30
2/2-way solenoid valve Series 21A; Directly operated; NC; Body Brass; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm; G 1/4"; DN 3mm; Pressure AC 0-10bar; Pressure DC 0-6bar; Length 40mm
Y224VDC-2 x 1.0 Pcs
Y224VDC-2
Mounted solenoid coil; Solenoid coil Type Y2, ATEX- II 2G Exmb IIC T4/ II 2D Exmb tb IIIC T130°C; Cable length 3 m; Tension 24VDC; Medium temperature max. 80°C
