STASTO Allgemeine Preisliste (EUR)
2/2-way solenoid valve Series 21A.K Store
  1. Products
  2. Armatures
  3. Solenoid valves for liquids and gases
  4. 2/2-way solenoid valves - directly operated
  5. 2/2-way solenoid valve Series 21A.K
  6. 21A2KV30-BDV08230AY

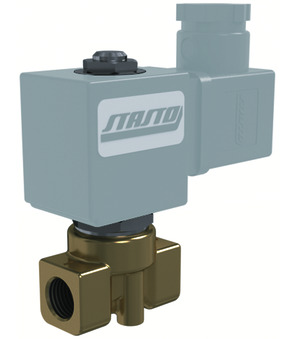

21A2KV30-BDV08230AY

21A2KV30-BDV08230AY

21A2KV30
2/2-way solenoid valve Series 21A; Directly operated; NC; Body Brass; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm; G 1/4"; DN 3mm; Pressure AC 0-10bar; Pressure DC 0-6bar; Length 40mm
BDV08230AY
Coil Type BDV; For humid area; Approval CSA/UL/VDE; Connector size 32mm; Voltage 230V/50Hz, 240V/60Hz

Intrastat No.: 84818099
Country of origin: Italy
Weight: 0.47 Kg
Short Itemnumber: 21A2KV30BDV08230AY
https://www.stasto.eu/web/image/product.template/244026/image_1920?unique=ff5a7ed

NWT40-100
profile magnetic cylinder series NWT; according to ISO 15552, VDMA; double acting; pressure range 0,5...10bar; adjustable cushions; diameter 40mm; stroke 100mm; piston rod thread M12x1,25; connection 1/4"; push force at 6 bar 754N

79,60 € 79.6 EUR 79,60 €

price on request

  • Female thread
  • DN
  • Length
  • Connector size
  • Type of coil 2
  • Design
  • Voltage
  • Voltage type
  • Pressure AC
  • Pressure DC
  • Seal
  • Coil
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
Contact Us

Share

dimension
Female thread G 1/4"
DN 3 mm
Length 40 mm
Designs
Connector size 32 mm
Electrical key figures
Voltage 230V/50Hz-240V/60Hz
Voltage type AC
pressure
Pressure AC 0...10 bar
Pressure DC 0...6 bar
materials
Seal FKM
characteristics
Coil BDA
Medium temperature -10...+120 °C
Approval UL/CSA/VDE
