2/2-way solenoid valve Series 21A.K Store

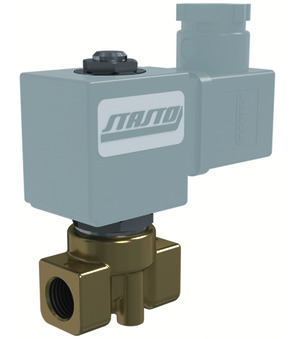

2/2-way solenoid valve 21A2KE20-BDA08024CS-C003-32-6

2/2-way solenoid valve 21A2KE20-BDA08024CS-C003-32-6

21A2KE20
2/2-way solenoid valve; directly operated; NC; body brass; tube stainless steel one-piece; seal EPDM; medium temperature -10...+140°C; standard coil BDA; connector size 32mm; G 1/4"; DN 2mm; pressure AC 0-22bar; pressure DC 0-16bar; length 40mm
BDA08024CS
coil type BDA; standard; connector size 32mm; voltage 24VDC
C003-32-6
connector; connector size 32mm; Standard; voltage 0...250VAC/DC

Intrastat No.: 84818099
Country of origin: Italy
Weight: 0.37 Kg
Short Itemnumber: 21A2KE20BDA08024CSC003326

21A2KE20
2/2-way solenoid valve; directly operated; NC; body brass; tube stainless steel one-piece; seal EPDM; medium temperature -10...+140°C; standard coil BDA; connector size 32mm; G 1/4"; DN 2mm; pressure AC 0-22bar; pressure DC 0-16bar; length 40mm
BDA08024CS
coil type BDA; standard; connector size 32mm; voltage 24VDC
C003-32-6
connector; connector size 32mm; Standard; voltage 0...250VAC/DC

This product has no valid combination.

Designs
Connector size	32 mm
design
Design	Standard
Electrical key figures
Voltage	24VDC
Voltage type	DC
characteristics
Coil	BDA
Approval	CE

Data sheets, Instructions, 3D-files and Certificates...

In your language

Data Sheets

2

Data sheet_Coil Type BDA_EN.pdf

BDA08024CS

Data sheet_Connector_EN.pdf

C003-32-6

Declarations of Conformity

1

Declaration of conformity_Coil Type BDA_EN.pdf

BDA08024CS

CAD / 3D

2

.stp

BDA08024CS

CADSTEP_C003326.stp

C003-32-6

Datové listy

2

Datový list_konektor_CS.pdf

C003-32-6

Datový list_magnetická cívka typ BDA_CS.pdf

BDA08024CS

Prohlášení o shodě

1

Prohlášení o shodě_magnetická cívka typ BDA_CS.pdf

BDA08024CS

Data Sheets

2

Datablad_Apparatstikdåse_DA_DK.pdf

C003-32-6

Datablad_Magnetspole Type BDA_DA_DK.pdf

BDA08024CS

Datenblätter

2

Datenblatt_Gerätesteckdose_DE.pdf

C003-32-6

Datenblatt_Magnetspule Typ BDA_DE.pdf

BDA08024CS

Konformitätserklärungen

1

Konformitätserklärung_Magnetspule Typ BDA_DE.pdf

BDA08024CS

Data Sheets

2

Δελτίο δεδομένων_Πηνίο ηλεκτρομαγνήτη Τύπος BDA_EL_GR.pdf

BDA08024CS

Δελτίο δεδομένων_Συσκευαστική πρίζα συσκευής_EL_GR.pdf

C003-32-6

Data Sheets

2

Ficha técnica_Bobina magnética Tipo BDA_ES.pdf

BDA08024CS

Ficha técnica_Toma de equipo_ES.pdf

C003-32-6

Data Sheets

2

Tietolehti_Laiteliitinpistorasia_FI.pdf

C003-32-6

Tietolehti_Magneettikela Tyyppi BDA_FI.pdf

BDA08024CS

Data Sheets

2

Fiche technique_Bobine électromagnétique Type BDA_FR.pdf

BDA08024CS

Fiche technique_Prise d’appareil_FR.pdf

C003-32-6

Data Sheets

2

Podatkovni list_Magnetska zavojnica Tip BDA_HR.pdf

BDA08024CS

Podatkovni list_Utičnica za uređaj_HR.pdf

C003-32-6

Adatlapok

2

Adatlap_mágnestekercs típus BDA_HU.pdf

BDA08024CS

Adatlap_stekker_HU.pdf

C003-32-6

Megfelelőségi nyilatkozatok

1

Megfelelőségi nyilatkozat_mágnestekercs típus BDA_HU.pdf

BDA08024CS

Data Sheets

2

Scheda tecnica_Bobina magnetica Tipo BDA_IT.pdf

BDA08024CS

Scheda tecnica_Presa per apparecchi_IT.pdf

C003-32-6

Data Sheets

2

Datablad_Apparatkontakt_NB_NO.pdf

C003-32-6

Datablad_Magnetspole Type BDA_NB_NO.pdf

BDA08024CS

Data Sheets

2

Datasheet_Apparaatcontactdoos_NL.pdf

C003-32-6

Datasheet_Magneetspoel Type BDA_NL.pdf

BDA08024CS

Karty katalogowe

2

Arkusz danych_cewka elektromagnetyczna typ BDA_PL.pdf

BDA08024CS

Arkusz danych_wtyczka_PL.pdf

C003-32-6

Deklaracje zgodności

1

Deklaracja zgodności_cewka elektromagnetyczna typ BDA_PL.pdf

BDA08024CS

Data Sheets

2

Fișă de date_Bobină solenoid tip BDA_RO.pdf

BDA08024CS

Fișă de date_conector_RO.pdf

C003-32-6

Podatkovni listi

2

Podatkovni list_Magnetna tuljava Tip BDA_SL.pdf

BDA08024CS

Podatkovni list_vtičnica_SL.pdf

C003-32-6

Izjave o skladnosti

1

Izjava o skladnosti_Magnetna tuljava Tip BDA_SL.pdf

BDA08024CS

Data Sheets

2

Tehnički list_konektor_SRLATIN.pdf

C003-32-6

Tehnički list_namotaj tip BDA_SRLATIN.pdf

BDA08024CS

Declarations of Conformity

1

Deklaracija o usklađenosti_namotaj tip BDA_SRLATIN.pdf

BDA08024CS

Data Sheets

2

Datablad_Apparatuttag_SV.pdf

C003-32-6

Datablad_Magnetspole Typ BDA_SV.pdf

BDA08024CS

21A2KE20 x 1.0

21A2KE20

2/2-way solenoid valve; Directly operated; NC; Body Brass; Tube Stainless steel One-piece; Seal EPDM; Medium temperature -10...+140°C; Standard coil BDA; Connector size 32mm; G 1/4"; DN 2mm; Pressure AC 0-22bar; Pressure DC 0-16bar; Length 40mm

BDA08024CS

BDA08024CS x 1.0

BDA08024CS

Coil Type BDA; Standard; Connector size 32mm; Voltage 24VDC

C003-32-6

C003-32-6 x 1.0

C003-32-6

Connector; Connector size 32mm; Standard; Voltage 0...250VAC/DC
