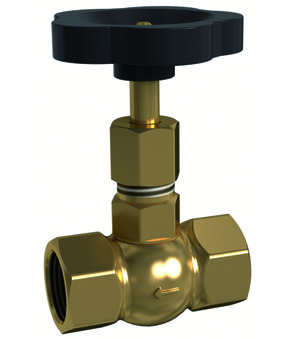

Needle valve Series 110VA; Body Brass; Stem seal PTFE; Medium temperature -20...+60°C; Free of oil and grease for oxygen; G 3/4"; DN 8,5mm; Pressure range 0…100bar; Length 67mm; Material handwheel Polyamid
Intrastat No.: 84818079
Country of origin: Germany
Weight: 0.51 Kg
Short Itemnumber: 110MS34S
Country of origin: Germany
Weight: 0.51 Kg
Short Itemnumber: 110MS34S
Needle valve Series 110VA; Body Brass; Stem seal PTFE; Medium temperature -20...+60°C; Free of oil and grease for oxygen; G 3/4"; DN 8,5mm; Pressure range 0…100bar; Length 67mm; Material handwheel Polyamid
Technical specifications
| Pressure range | 0...100 bar |
|---|---|
| Female thread | G 3/4" |
| DN | 8,5 mm |
| Length | 67 mm |
| Pressure range | 0...100 bar |
| Female thread | G 3/4" |
| DN | 8,5 mm |
| Length | 67 mm |
| Material handwheel | Polyamide |
No spare parts are available for this product.
