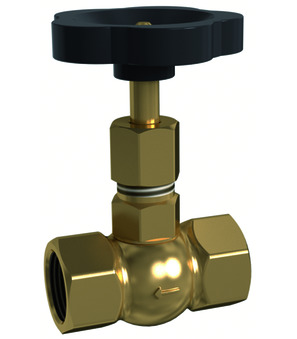

Needle valve 110MS-11/4"
Needle valve Series 110Ms; Body Brass; Stem seal PTFE; Medium temperature -20...+100°C; G 11/4"; DN 13mm; Pressure range 0-100bar; Length 110mm; Material handwheel Stahl
Intrastat No.: 84818079
Country of origin: Germany
Weight: 1.83 Kg
Short Itemnumber:110MS114
Country of origin: Germany
Weight: 1.83 Kg
Short Itemnumber:110MS114
Needle valve Series 110Ms; Body Brass; Stem seal PTFE; Medium temperature -20...+100°C; G 11/4"; DN 13mm; Pressure range 0-100bar; Length 110mm; Material handwheel Stahl
| dimension | |
|---|---|
| Female thread | G 1 1/4" |
| DN | 13 mm |
| Length | 110 mm |
| pressure | |
| Pressure range | 0...100 bar |
| materials | |
| Material handwheel | Steel |
Data sheets, Instructions, 3D-files and Certificates...
In your language
ZIPData Sheets
1Data sheet_Needle valve Series 110Ms_EN.pdf
Download
Assembly and Operating Instructions
1Assembly and operating instructions_Needle valve Series 110Ms_EN.pdf
Download
CAD / 3D
1CADSTEP_110MS114.stp
Download
No spare parts are available for this product.
