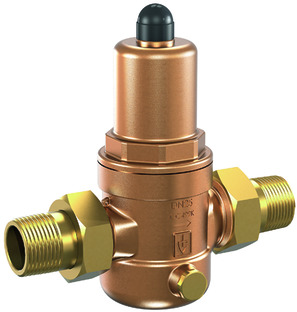

Pressure regulator PR03-10-5/15-01
Pressure regulator Series PR03-ATEX; Body Bronze; Fine screen Stainless steel; Seals EPDM; ATEX zone 1 and 21; Medium temperature -20...+95°C; Operating pressure range 5...15bar; Maximum inlet pressure 40bar; R 1"; Mesh size 0,6mm; Suitable manometer MA001-50R-25-D
Intrastat No.: 84811099
Country of origin: Germany
Weight: 2.4 Kg
Short Itemnumber:PR031051501
Country of origin: Germany
Weight: 2.4 Kg
Short Itemnumber:PR031051501
pressure regulator series PR03-ATEX; body bronze; fine screen stainless steel; seals EPDM; ATEX zone 1 and 21; medium temperature -20...+95°C; operating pressure range 5...15bar; maximum inlet pressure 40bar; R 1"; mesh size 0,6mm; suitable manometer MA001-50R-25-D
| dimension | |
|---|---|
| R | 1" |
| Mesh size | 0,6 mm |
| design | |
| Design | ATEX |
| pressure | |
| Outlet pressure | 5...15 bar |
| Inlet pressure | Max. 40 bar |
| characteristics | |
| Medium temperature | -20...+95 °C |
| Suitable manometer | MA001-50R-25-D |
No spare parts are available for this product.
