Valves, butterfly valves and gate valves - manually operated

STASTO Allgemeine Preisliste (EUR)
DN Length Flange Pressure range Type Sequence
350 mm 92 mm PN10/16/25, ANSI150 0...25 bar BUW9-350-SSRS-G 28700012
400 mm 102 mm PN10/16/25, ANSI150 0...25 bar BUW9-400-SSRS-G 28700013
500 mm 127 mm PN16 0...25 bar BUW3A-500-SSRS-G 28700014
500 mm 127 mm PN25 0...25 bar BUWV-500-SSRS-G 28700015

Butterfly valve with bare shaft Series BULG-B, BULC-B

; Lug type; Length According to EN558−1R20; Body; Disc And Shaft 1.4408Liner Silicone; Medium temperature -60...+190°C
To Series: Butterfly valve with bare shaft Series BULG-B, BULC-B
Grundversion
DN Length Flange Pressure range Type Sequence
100 mm 52 mm PN10/16 0...16 bar BULG-100-SSES-B 28710000
100 mm 52 mm PN10/16 0...16 bar BULG-100-SSES-B-3C 28710001
100 mm 52 mm PN10/16 0...16 bar BULG-100-SSSS-B 28710002
BULG-100-SSSS-R
Butterfly valve with hand lever Adjustable Series BULG-R, BULC-R; Lug type; Length According to EN558−1R20; Body; Disc And Shaft 1.4408Liner Silicone; Medium temperature -60...+190°C; DN 100mm; Length 52mm; Pressure range 0...16bar; Nominal flange pressure 10/16bar
To Series: Butterfly valve with hand lever Adjustable Series BULG-R, BULC-R
DN Length Flange Pressure range Type
100 mm 52 mm PN10/16 0...16 bar BULG-100-SSSS-R
Butterfly valve with hand lever Series BUW6-DN-L-A

Butterfly valve with hand lever Series BUW6-DN-L-A

ATEX II 2 G/D Ex h X; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+100°C; Pressure range 0...16bar
To Series: Butterfly valve with hand lever Series BUW6-DN-L-A
Grundversion
DN Length Disc Design Type Sequence
125 mm 56 mm GGG40 Zinc plated ATEX BUW6-125-DPN-L-A 28730000
150 mm 56 mm GGG40 Zinc plated ATEX BUW6-150-DPN-L-A 28730001
250 mm 68 mm GGG40 Zinc plated ATEX BUW6-250-DPN-L-A 28730002
Knife gate valve with handwheel Series A1V

Knife gate valve with handwheel Series A1V

Wafer type; Rising stem; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Metal sealing; Packing PTFE-Synthetic; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Medium temperature -10...+270 °C; Prepared for 2 inductive limit switches M18

To Series: Knife gate valve with handwheel Series A1V
Grundversion
DN Length Pressure range Type Sequence
100 mm 50 mm 0...10 bar A1V1H1-B-100-PIB 28740000
150 mm 60 mm 0...10 bar A1V1H1-B-150-PIB 28740001

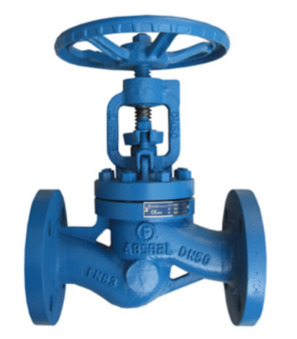

Globe valve Series GL114

Globe valve Series GL114

; PN100; Body Steel; Seat, Cone, Stem Stainless steel Handwheel Cast iron; Packing gland Graphite; Rising stem; Medium temperature -10...+400°C; Pressure range 0...100Bar
To Series: Globe valve Series GL114
Grundversion
DN Length Type Sequence
50 mm 300 mm GL114-15-W 28750000
50 mm 300 mm GL114-50-W 28750001
80 mm 380 mm GL114-80-W 28750002
100 mm 430 mm GL114-65-W 28750003
100 mm 430 mm GL114-100-W 28750004
100 mm 430 mm GL114-150-W 28750005
GL129-50-W
Globe valve Series GL129; PN63; Body Steel; Seat, Cone, Stem Stainless steel Handwheel Cast iron; Packing gland Graphite; Rising stem; Medium temperature -10...+400°C; Pressure range 0...63Bar; DN 50mm; Length 300mm
To Series: Globe valve Series GL129
DN Length Type
50 mm 300 mm GL129-50-W
