Valves, butterfly valves and gate valves - manually operated

STASTO Allgemeine Preisliste (EUR)
BUWV-400-CT1QD-G-01
Butterfly valve with manual gear box Triple eccentric; Wafer type; Length According to ISO 5752-20; Body Carbon steel; Disc 1.4021 Stellited, Shaft 1.4021; Seat 1.4401+Graphite; Nominal flange pressure PN25; Medium temperature -30…+320°C; Pressure range 0...25bar; DN 400mm; Length 103mm; Tightness According to API 598, EN ISO 12266-1 A (For liquids); B (For gases)
BUWV-400-CTQD-G
Butterfly valve with manual gear box Triple eccentric; Wafer type; Length According to ISO 5752-20; Body Carbon steel; Disc 1.4021 Nitrided, Shaft 1.4021; Seat 1.4401+Graphite; Nominal flange pressure PN25; Medium temperature -30…+320°C; Pressure range 0...25bar; DN 400mm; Length 103mm; Tightness According to API 598, EN ISO 12266-1 A (For liquids); B (For gases)
BUWV-500-SSRS-B-A
butterfly valve with bare shaft; wafer type; length according to EN558−1R20; housing, disc AISI 316; shaft AISI 630; seat RTFE; medium temperature -10...+230°C; pressure range 0...25bar; DN 500mm; length 127mm; nominal flange pressure PN25

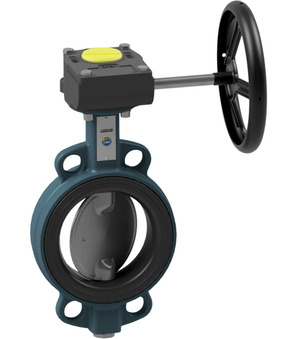

BUWZ-600-DSE-G
Butterfly valve with manual gear box; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN16; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 600mm; Length 154mm
C3M-A1N3I3-7-200-PI
Inspection certificate EN-10204-3.1 For material, pressure, function and tightness
C7N2B2-5-350X350
knife gate valve with double acting actuator; housing AISI 304; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/EPDM; unidirectional sealed; control pressure 5,5...8bar; medium temperature -5...+90 °C; max. operating pressure 0,6bar; dimensions 350x350mm; length 100mm
C7N2B3-BS-600X400-PI01
Knife gate valve with double acting actuator; Body 1.4301; Gate 1.4301; Soft sealed FKM; Packing Synthetic-PTFE With Copper-Scraper; Unidirectional sealed; Medium temperature -5...+120 °C; Max. operating pressure 0,5bar; Prepared for 2 inductive limit switches M18; Dimensions 600x400mm According to Drawing LAB10-02-BAR-FL9041PE1T20
C7V1I1-5-450
knife gate valve with handwheel; rising stem; housing AISI 316; gate AISI 316; metal sealing; packing synthetic-PTFE; unidirectional sealed; medium temperature -5...+120 °C; max. operating pressure 0,5bar; dimensions 450x450mm
C7V2A2-5-350X600-01
Knife gate valve with handwheel; Rising stem; With gas-tight packing gland cap; Body Steel; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Unidirectional sealed; Medium temperature -5...+90 °C; Dimensions 350x600mm; Max. operating pressure 0,5bar
C7V2B2-5-350X350
knife gate valve with handwheel; rising stem; housing AISI 304; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/EPDM; unidirectional sealed; medium temperature -5...+90 °C; max. operating pressure 0,6bar; dimensions 350x350mm; length 100mm
C7VN2B3-BS-400X400-01
Knife gate valve with handwheel; Non rising stem; Body 1.4301; Gate 1.4301; Soft sealed FKM; Packing Synthetic-PTFE With Copper-Scraper; Unidirectional sealed; Medium temperature -5...+120 °C; Max. operating pressure 0,5bar; Dimensions 400x400mm According to Drawing LAB09-03-BAR-FL4008PE1
C7VN2B3-BS-600X400-01
Knife gate valve with handwheel; Non rising stem; Body 1.4301; Gate 1.4301; Soft sealed FKM; Packing Synthetic-PTFE With Copper-Scraper; Unidirectional sealed; Medium temperature -5...+120 °C; Max. operating pressure 0,5bar; Dimensions 600x400mm According to Drawing LAB03-04-BAR-FL9115PE1T20
D1V5I3-5V-300
Knife gate valve, Series D, DN300, PN10 body 1.4408, gate plate 1.4401, seat seal FKM packing synth. PTFE/FKM incl. handwheel with rising stem
D4V2A2-5-150
Knife gate valve, Series D, DN150, PN25 body steel, gate plate 1.4301 seat seal EPDM, packing synth. PTFE/FKM incl. handwheel with rising stem
D7R1S1-6-150
Knife gate valve, Series D, DN150, PN16 flange with groove to DIN 2521, body 1.4571 gate plate 1.4571 reinforced, seat metal 1.5% leakage of the kvs value, packing graphite handwheel gearbox medium: heavy fuel oil/ bitumen
D7R1S1-6-200
Knife gate valve Series D; With manual gear box; Wafer type DIN2521;Body 1.4571; Gate 1.4571 Reinforced; Metal sealing; Packing Graphite; Nominal flange pressure PN16 ; DN 200mm; Leakage 1,5%
D7R2A2-5-300
Knife gate valve, Series D, DN300 PN64, body steel, gate plate 1.4301 seat seal EPDM, packing synt. PTFE with handwheel gearbox
D7S1S1-6-150
Knife gate valve, Series D, DN150, PN16 flange with groove to DIN 2521, body 1.4571 gate plate 1.4471 reinforced, seat metal 1.5% leakage of the kvs value, packing graphite pneumatic actuator single-acting, spring closes medium: heavy fuel oil/ bitumen
D7S1S1-6-200
Knife gate valve, Series D, DN200, PN16 flange with groove to DIN 2521, body 1.4571 gate plate 1.4571 reinforced, seat metal 1.5% leakage of the kvs value, packing graphite pneumatic actuator single-acting, spring closes medium: heavy fuel oil/bitumen
D7V2I6-7-200-01
Knife gate valve with handwheel; Wafer type; Rising stem; Body 1.4408; Gate 1.4401; Seat seal Silicone; Packing PTFE; Nominal flange pressure PN40; Unidirectional sealed; DN 200mm; Length 100mm; Pressure range 0-10bar; ATEX zone 2; 2 Flushing holes; Scraper 1.4401
