Valves, butterfly valves and gate valves - manually operated

Butterfly valve with pneumatic actuator Series BULG-SSXS-T2; Lug type; Length According to EN558−1R20; Body; Disc And Shaft 1.4408; Liner EPDM HT; Nominal flange pressure PN10/16; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -45...+150°C; Pressure range 0...10bar; DN 100mm; Length 52mm; Safety position NO; Actuator PAS1155-B

C3J-GL119-80-W

inspection certificate EN-10204-3.1; for material, pressure and tightness

BUW6-300-DSN-L-01

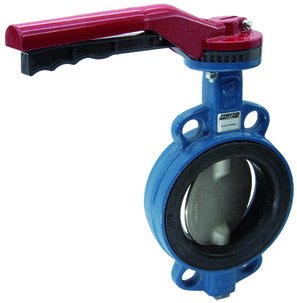

Butterfly valve with hand lever Series BUW6-DSN-L; ATEX II 2 G/D Ex h X; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+100°C; Pressure range 0...16bar; DN 300mm; Length 78mm;
Incl.Limit switch box; IP67; 2 Proximity switch; Switch type P&F NAMUR NJ2-V3-N; BX45-220MF33 - IP67 EEX ia; Material of case Aluminum; Temperature range -20...+80°C; Including visual indication

C3J-BUW6-080-DSN

inspection certificate EN-10204-3.1; for material, pressure and tightness

CAE-BUW6-080-DSN

inspection certificate API 598 for pressure and tightness; inspection certificate EN-10204-3.1 for material

BUW6-080-DSN-L-3H

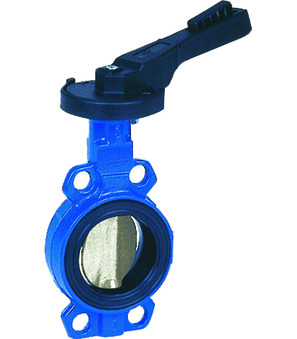

Butterfly valve with hand lever; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+100°C; Pressure range 0...16bar; DN 80mm; Length 46mm; Incl. Inspection certificate API 598 For pressure and tightness; Incl. Inspection certificate EN-10204-3.1 For material

C3J-BUW4-200-CSN

Inspection certificate EN-10204-3.1; For material, pressure and tightness

BUS3-032/040-GSED-L

butterfly valve with hand lever; wafer type; length according to EN558−1R20; body cast iron EN-GJL-250 epoxy coated; disc AISI 316; shaft AISI 420; liner EPDM; nominal flange pressure PN6/10/16/ANSI150; medium temperature -15...+120°C; pressure range 0...10bar; DN 32/40mm; length 32mm

BUW4-200-CSN-G-3C

butterfly valve with manual gear box series BUW4-CSN-G-3C; wafer type; length according to EN558−1R20; body carbon steel A216-WCB epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+100°C; pressure range 0...10bar; DN 200mm; length 60mm; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness

C3J-BUW6-300-SSES

Inspection certificate EN-10204-3.1; For material, pressure and tightness

BUW6-150-CSV-B

Butterfly valve with bare shaft Series BUW6-CSV-B; Wafer type; Length According to EN558−1 R20; Body Carbon steel A216-WCB Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+200°C; Pressure range 0...16bar; DN 150mm; Length 56mm

C3J-BUW6-150-CSV

Inspection certificate EN-10204-3.1; For material, pressure and tightness

BUW6-150-CSV-B-3C

Butterfly valve with bare shaft Series BUW6-CSV-B-3C; Wafer type; Length According to EN558−1 R20; Body Carbon steel A216-WCB Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+200°C; Pressure range 0...16bar; DN 150mm; Length 56mm; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

BUW6-150-CSV-L-3C

butterfly valve with hand lever series BUW-L-3C; wafer type; length according to EN558−1 R20; body carbon steel A216-WCB epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+200°C; pressure range 0...16bar; DN 150mm; length 56mm; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness

BULY-100-CSV-G

butterfly valve with manual gear box series BUL-G; lug type; length according to EN558−1 R20; body carbon steel A216-WCB epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; medium temperature -10...+200°C; DN 100mm; length 52mm; pressure range 0-16bar; nominal flange pressure ANSI150

BULY-100-CSV-G-3C01

butterfly valve with manual gear box series BUL-G-3C01; lug type; length according to EN558−1 R20; body carbon steel A216-WCB epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; medium temperature -10...+200°C; DN 100mm; length 52mm; pressure range 0-16bar; nominal flange pressure ANSI150; flange thread UNC; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness

C3J-BULG-065-DSN

inspection certificate EN-10204-3.1; for material, pressure and tightness

K1V2H2-9-125-B01

gate valve with handwheel; wafer type; rising stem; body ductile iron EN-GJS-500-7; gate AISI 304; soft sealed EPDM; packing NBR; screws stainless steel; nominal flange pressure PN10; medium temperature -5...+120 °C; DN 125mm; length 50mm; pressure range 0-10bar; locking device for open position

K1V2H2-9-50-B01

Gate valve with handwheel; Wafer type; Rising stem; Body Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing NBR; Screws Stainless steel; Nominal flange pressure PN10; Medium temperature -5...+120 °C; DN 50mm; Length 40mm; Pressure range 0-10bar; Locking device For Open position

BUW6-300-CSN-L-3E

Butterfly valve with hand lever; Wafer type; Length According to EN558−1 R20; Body Carbon steel A216-WCB Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -25...+100°C; Pressure range 0...16bar; DN 300mm; Length 78mm; Notch impact test -29°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
