Valves, butterfly valves and gate valves - manually operated

butterfly valve with bare shaft; wafer type; length according to EN558−1 R20; housing ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316 HALAR-coated; shaft AISI 316; liner PTFE/silicone; nominal flange pressure PN10/16/ANSI150; medium temperature -10...+190°C; pressure range 0...10bar; DN 50mm; length 43mm

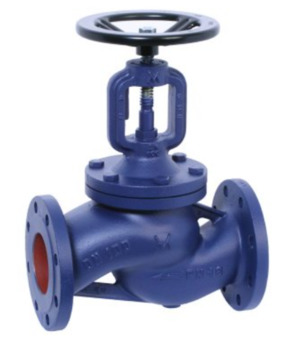

GL119-50-W-01

Globe valve; PN16; Body Cast iron EN-GJL-250; Seat, Cone, Stem Stainless steel 1.4021; Handwheel Steel; Packing gland Graphite; Back seal; Seal PTFE; Rising stem; Body Painted RAL5013 (Cobalt blue) Thickness 40ym; Medium temperature -10...+180°C; Pressure range 0...16bar; DN 50mm; Length 230mm

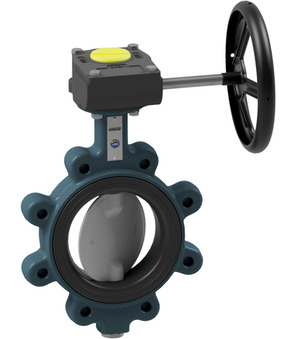

BULG-080-DSE-G-3C

Butterfly valve with manual gear box; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; DN 80mm; Length 46mm; Pressure range 0…16bar; Flange PN10/16

BULG-080-DSN-G-3C

Butterfly valve with manual gear box; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16; Medium temperature -10...+100°C; Pressure range 0...16bar; DN 80mm; Length 46mm; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

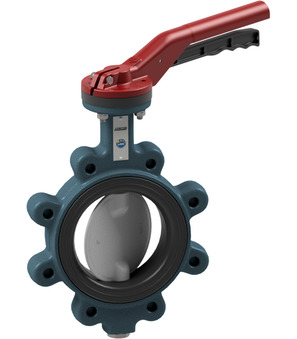

BULY-150-DSE-L-01

Butterfly valve with hand lever Series BULY-L-01; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 150mm; Length 56mm; Pressure range 0-16bar; Flange ANSI150; Flange thread UNC

BULG-150-DSE-G-3CA

Butterfly valve with manual gear box; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 150mm; Length 56mm; ; ATEX - Ex II 2GD c TX; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

BULG-150-DSES-B

Butterfly valve with bare shaft Series BULG-DSES-B; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4401; Liner EPDM; Medium temperature -10...+130°C; DN 150mm; Length 56mm; Pressure range 0…16bar; Nominal flange pressure PN10/16

BULV-100-DSE-B

Butterfly valve with bare shaft Series BULV-DSE-B; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 100mm; Length 52mm; Pressure range 0…25bar; Nominal flange pressure PN25

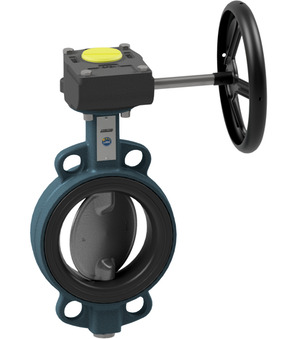

BUW6-100-DSN-G-01

Butterfly valve with manual gear box; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+100°C; Pressure range 0...16bar; DN 100mm; Length 52mm; Gear box Made of cast iron

250.38ES

Knife gate valve Series 250-ES; Body Stainless steel 1.4401/1.4408; Handwheel Aluminum; Stem seal PTFE; Medium temperature -20...+175°C; Pressure range 0...14bar; RP 11/2"; DN 40mm; Length 85mm

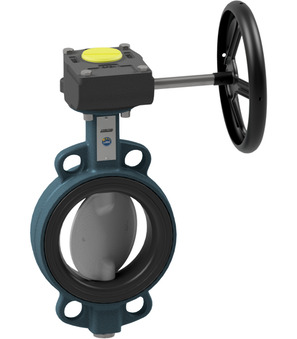

BUW6-100-DSE-G

Butterfly valve with manual gear box; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 100mm; Length 52mm

SE27-12-STW-01

Angle seat-Control valve; Manual operated; Body 1.4408; Cone, Stem, Head end Stainless steel 1.4571; Handwheel Steel Plastic coated; Seat seal PTFE; Packing PTFE filled with coal; Back seal; PTFE; Rising stem; Medium temperature -30…+200°C; Pressure range 0...40bar; Thread G1/2"; DN 15mm; Length 65mm; With control cone; Characteristic linear

APKTGB00XX

Mounting bracket For butterfly valve; BUW4-DN400 (F12); Key 12/40; Actuator F16/F25-55

BUW4-050-DSTS-B

Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/silicone; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+190°C; Pressure range 0...10bar; DN 50mm; Length 43mm

GL134-20-W-C

Globe valve With control cone; Body, Seat, Cone, Stem Stainless steel 1.4571; Handwheel Steel; Stem seal PTFE; Rising stem; Medium temperature -20...+250°C; Connection Butt weld ends 26,9mm; Pressure range 0...250bar; DN 20mm

BULC-200-DPN-L

Butterfly valve with hand lever; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 200mm; Length 60mm; Pressure range 0-10bar; Nominal flange pressure 10bar; Disc Zinc plated ductile iron EN-GJS-400-15

BUW6-150-DSE-G-01

Butterfly valve with manual gear box; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 150mm; Length 56mm; Actuator 90° Turned Mounted;

BUW6-125-DSP1-L

Butterfly valve with hand lever; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner Polyurethane; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+90°C; Pressure range 0...16bar; DN 250mm; Length 56mm

BUW6-150-DSN-G-01

GL152-10-W

Needle valve; Body Stainless steel 1.4571; Stem seal PTFE; Medium temperature -50...+250°C; G 1"; DN 12mm; Pressure range 0-200bar; Length 100mm; Material handwheel Steel; Low temperature design
