Valves, butterfly valves and gate valves - automatically operated

Category

Wafer type; Body 1.4408; Gate 1.4401; Metal sealing; Sliding guide Bronze; Gate And Seat Reinforced; Packing Graphite; Nominal flange pressure PN10; Unidirectional sealed; Medium temperature Max. +250°C; Control pressure 5,5...8bar

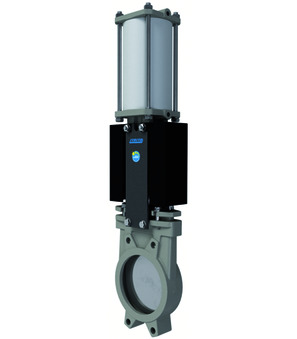

Knife gate valve with double acting actuator Series K1N

Directly operated; Connection flange according to DIN28459; Body And Flange Aluminum; Tube Natural rubber; Control pressure 1,8...2,5 bar higher than effective pressure; Medium temperature -10...+80 °C

Pinch valve Series PI12

Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Voltage 400V/3/50Hz; Medium temperature -5...+90°C

Knife gate valve with electric actuator Series A1ED

Wafer type; Body 1.4408; Gate 1.4401; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Nominal flange pressure PN10; Unidirectional sealed; Voltage 400V/3/50Hz; Medium temperature -5...+90°C

Knife gate valve with electric actuator Series A1ED

Suitable for Pneumatic cylinder For knife gate valve Series A, AB, AD, F, L And U; NBR; Without piston

Seal kit

Wafer type; Body Cast iron EN-GJL-250; Gate Hardox 600; Soft sealed Flucast-R; With reinforced fixing ring; Packing PTFE-Synthetic/EPDM/Scraper; Nominal flange pressure PN10; Sealed in both directions; Control pressure 5,5...8bar; Prepared for 2 mechanical switches MSU01

Gate valve with double acting pneumatic actuator Series ABZ1

NC; Body Stainless steel 1.4408; Seal PTFE; Weld ends according to DIN 11850 Row 2; For gaseous media; Closing with flow; Medium temperature -30...+170°C

Pneumatically operated seat valve Series SE01-D-ST

NC; Body Stainless steel 1.4408; Cap Plastic; Seal PTFE; Weld ends according to DIN 11850 Row 2; For gaseous media; Closing with flow; Medium temperature -30...+135°C

Pneumatically operated seat valve Series SE18-D-ST

Directly operated; Body Aluminum; Aluminum flange with steel socket; Tube Natural rubber Food safe; Control pressure 1,8...2,5 bar higher than effective pressure; Medium temperature -10...+80 °C

Pinch valve Series VF

Suitable for Pneumatic cylinder For knife gate valve Series A, AB, AD, F, L And U; NBR

Piston

Suitable for Pneumatic cylinder For knife gate valve Series A, AB, AD, F, L And U

Piston-rod

Wafer type; Body Cast iron EN-GJL-250; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C

Knife gate valve with double acting actuator Series L1N

Directly operated; Connection Female thread; Tube EPDM Food safe White; Control pressure 1,8...2,5 bar higher than effective operating pressure; Medium temperature -10...+120 °C

Pinch valve Series PI08

Wafer type; Body Cast iron EN-GJL-250; Gate 1.4301; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Sealed in both directions; Control pressure 5,5...8bar; Prepared for 2 inductive limit switches M18

Knife gate valve with double acting actuator Series AB1N

Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016

Butterfly valve with pneumatic actuator Series BUW6-DSE

Wafer type; Length According to EN558−1R20; Body; Disc And Shaft 1.4408; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -25...+100°C; Pressure range 0...10bar

Butterfly valve with pneumatic actuator Series BUW6-SSNS-D2

Wafer type; Length According to EN558−1R20; Body Aluminum, Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+100°C; Pressure range 0...10bar

Butterfly valve with bare shaft Series BUW6-ASN-D2

Suitable for Knife gate valve Series AZ, ABZ, ADZ, FZ, LZ And UZ

Spare cylinder

Wafer type; Double eccentric; Length According to EN558−1R20; Body And Disc 1.4408, Shaft 1.4542; Seat RTFE; Medium temperature -10...+230°C; Single acting actuator; Control pressure 5,5...8bar

Butterfly valve with pneumatic actuator Series BUW9-SSRS-S

ATEX II 2 G/D Ex h X; Wafer type;Double eccentric; Length According to EN558−1R20; Body And Disc 1.4408, Shaft 1.4542; Seat RTFE; Medium temperature -10...+230°C; Single acting actuator; Control pressure 5,5...8bar

Butterfly valve with pneumatic actuator Series BUW9-SSRS-S-A

1.4301 Hard chrome plated; Suitable for ABZ1-N3HX61A

Scraper ring Series SR

Wafer type; Double eccentric; Length According to EN558−1R20; Body, Disc 1.4408; Shaft 1.4542; Seat RTFE; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+230°C

Butterfly valve with pneumatic actuator Series BUW9-SSRS-D

Suitable for Pneumatic cylinder Series SHD

Piston-rod

Suitable for Pneumatic cylinder Series PC500

Cylinder tube

Wafer type; Body 1.4408; Gate 1.4401; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; Prepared for 2 mechanical switches MSU01A

Knife gate valve with double acting actuator Series A1N

Wafer type; Body 1.4408; Gate 1.4401; Soft sealed PTFE; Packing PTFE; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -20...+180 °C

Knife gate valve with double acting actuator Series A1N

Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner Carboxylated NBR; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Pressure range 0...10bar

Butterfly valve with pneumatic actuator Series BUW6-DSC-D2

Wafer type; Body Cast iron EN-GJL-250; Gate Hardox 600; Soft sealed Flucast-R; With reinforced fixing ring 1.4301 Hard chrome plated; Packing PTFE-Synthetic/EPDM/Scraper; Nominal flange pressure PN10; Sealed in both directions; Control pressure 5,5...8bar; Prepared for 2 mechanical switches MSU01

Gate valve with double acting pneumatic actuator Series ABZ1

Female thread; Body Brass; Disc PEI (Ultem 1000); Pressure range 0...16Bar; Medium temperature -10...+130°C; Double acting actuator; Control pressure 6...8bar

Butterfly valve with pneumatic actuator Series BU900-D0

Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...6bar

Butterfly valve with electrical actuator Series BUW2-DSE-0

Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Pressure range 0...10bar

Butterfly valve with pneumatic actuator Series BUW6-DSN-D2

Butterfly valve with electrical actuator Series BUW6-DSE-01

NC; Connection parts 1.4435; Tube FKM; Medium temperature -10...+130°C

Pinch valve Series PI03

Wafer type; Length According to EN558−1R20; Body Steel; Disc And Shaft 1.4408; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...10bar

Butterfly valve with electrical actuator Series BUW6-CSES-0

Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+200°C; Pressure range 0...10bar

Butterfly valve with pneumatic actuator Series BULG-S, BULC-S

Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+200°C; Pressure range 0...10bar

Butterfly valve with pneumatic actuator Series BUW6-DSV-S2

Butterfly valve with pneumatic actuator Series BUW6-DSV-S2-3C

Wafer type; Body Cast iron EN-GJL-250; Gate 1.4301; Packing PTFE-Synthetic/EPDM With Copper Scraper; Screws Stainless steel; Nominal flange pressure PN10; Sealed in both directions; Control pressure 5,5...8bar; Prepared for 2 inductive limit switches M18

Knife gate valve with double acting actuator With emergency handwheel Series AB1NE

ATEX II 2 G/D Ex h X; Wafer type; Length According to EN558−1R20; For abrasive medias (e.g. sand, cement, etc.); Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner Carboxylated NBR; Nominal flange pressure PN10/16/ANSI150; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Pressure range 0...6bar

Butterfly valve with pneumatic actuator Series BUW2-DSC-D-A

Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner Polyurethane; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+90°C; Pressure range 0...10bar

Butterfly valve with pneumatic actuator Series BUW6-DSP1-D2

ATEX II 2 G/D Ex h X; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner Polyurethane; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+90°C; Pressure range 0...10bar

Butterfly valve with pneumatic actuator Series BUW6-DSP1-D2-A

ATEX II 2 G/D Ex h X; Lug type; Double eccentric; Length According to EN558−1R20; Body And Disc 1.4408, Shaft 1.4542; Seat RTFE/Inconel 625-Graphite; Nominal flange pressure PN25; Medium temperature -10...+230°C Single acting actuator; Control pressure 5,5...8bar; Fire-safe; ATEX II 2 G/D c TX

Butterfly valve with pneumatic actuator Series BULV-S

Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Sealed in both directions; Control pressure 5,5...8bar; Medium temperature -5...+90°C

Knife gate valve with double acting actuator Series AB1N

Directly operated; Body Aluminum; Aluminum flange with stainless steel socket; Tube Natural rubber; Control pressure 1,8...2,5 bar higher than effective pressure; Medium temperature -10...+80°C

Pinch valve Series PI02

Directly operated; Body Aluminum; Aluminum flange with stainless steel socket; Tube Natural rubber food-safe FDA-approved; Control pressure 1,8...2,5 bar higher than effective pressure; Medium temperature -10...+80°C

Pinch valve Series PI02-WRA

Distribution function; 3-way-type; Body Stainless steel AISI 316; Seal PTFE; Female thread; Medium temperature -30...+200°C; Control actuator CA24C 24VAC/DC; Control signal 4-20mA; Position feedback 4-20mA; 2 Limit switch; Characteristic linear; With control cone

Electrical seat valve Series SEC14-CA24C

Wafer type; With DVGW certificate For water; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4021; Liner EPDM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -15...+80°C; Medium Water; Pressure range 0...10Bar

Butterfly valve with pneumatic actuator Series BUA-D-DVGW

Suitable for Pinch valve Series PI08

Spare tubes

Lug type; Length According to EN558−1R20; For abrasive medias (e.g. sand, cement, etc.); Body EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner Carboxylated NBR; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Pressure range 0...6bar

Butterfly valve with pneumatic actuator Series BULI-D, BULB-D

Lug type; Length According to EN558−1R20; For abrasive medias (e.g. sand, cement, etc.); Body EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner Carboxylated NBR; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; Pressure range 0...6bar

Butterfly valve with pneumatic actuator Series BULI-S, BULB-S

Wafer type; Body Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed NBR; Packing PTFE-Synthetic/NBR; Screws Stainless steel; Nominal flange pressure PN10; Sealed in both directions; Control pressure 5,5...8bar; Medium temperature -5...+90°C

Knife gate valve with double acting actuator Series AB1N

; Suitable for Series SE01, SE02, SE03; Body Brass, Bronze; Seal EPDM

Seal kit

High temperature design; ATEX Area 1,21; NC; Body Stainless steel 1.4408; Seal PTFE; Female thread; For gaseous media; Closing with flow; Medium temperature -30...+200°C; Incl. Splash water protection

Pneumatically operated seat valve Series SE01-ST-HT

Spare body Pneumatically operated seat valves

Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat RTFE; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+230°C

Butterfly valve with pneumatic actuator Series BUW9-CSRS-D

Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+425°C

Butterfly valve with pneumatic actuator Series BUW9-CSIS-S

Wafer type; Double eccentric; Length According to EN558−1R20; Body, Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Nominal flange pressure PN10/16/25/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+425°C; Pressure range 0...25bar

Butterfly valve with pneumatic actuator Series BUW9-SSIS-S4

Lug type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+425°C

Butterfly valve with pneumatic actuator Series BUL-CSIS-D

Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+425°C

Butterfly valve with pneumatic actuator Series BUW-CSIS-D

ATEX II 2 G/D Ex h X; Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat RTFE; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+230°C

Butterfly valve with pneumatic actuator Series BUW9-CSRS-D-A

Butterfly valve with pneumatic actuator Series BUW9-CSRS-D

Wafer type; Double eccentric; Length According to EN558−1R20; Body, Disc 1.4408; Shaft 1.4542; Seat RTFE; Medium temperature -10...+230°C

Butterfly valve with electrical actuator Series BUW9-SSRS-0

Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat RTFE; Medium temperature -10...+230°C

Butterfly valve with electrical actuator Series BUW9-CSRS-0

;ATEX II 2 G/D Ex h X; Wafer type; Double eccentric; Length According to EN558−1R20; Body, Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+425°C; Pressure range 0...25bar

Butterfly valve with pneumatic actuator Series BUW9-SSIS-D4-A

Wafer type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat RTFE; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+230°C

Butterfly valve with pneumatic actuator Series BUW9-CSRS-S

Lug type; Double eccentric; Length According to EN558−1R20; Body, Disc 1.4408; Shaft 1.4542; Seat RTFE; Medium temperature -10...+230°C; Single acting actuator; Control pressure 5,5...8bar

Butterfly valve with pneumatic actuator Series BUL-SSRS-S2

ATEX II 2 G/D Ex h X; Lug type; Double eccentric; Length According to EN558−1R20; Body, Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Medium temperature -10...+425°C; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar

Butterfly valve with pneumatic actuator Series BUL-SSIS-S2-A

ATEX II 2 G/D Ex h X; Lug type;Double eccentric; Length According to EN558−1R20; Body, Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Medium temperature -10...+425°C; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8b

Butterfly valve with pneumatic actuator Series BUL-SSIS-D2-A

ATEX II 2 G/D Ex h X; Wafer type;Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat Inconel 625; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+425°C

Butterfly valve with pneumatic actuator Series BUW9-CSIS-S-A

NO; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+130°C; Pressure range 0...10bar

Butterfly valve with pneumatic actuator Series BULG-DSE-T22, BULC-DSE-T22

Width 22mm

Coil Type C015

Connector size 22mm; Form B-ISO

Connector Series C004

Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; Incl. 2 mechanical limit switches OPEN/CLOSED

Knife gate valve with double acting actuator Series A1N2H2-5-2EM-B

Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; Incl. 2 inductive limit switches OPEN/CLOSED

Knife gate valve with double acting actuator Series A1N2H2-5-2EM-B

Directly operated; Connection Female thread; Connection part POM White; Tube Natural rubber; Control pressure 1,8...2,5 bar higher than effective operating pressure; Medium temperature -10...+80 °C

Pinch valve Series PI08

Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4401; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...10bar

Butterfly valve with electrical actuator Series BUW6-DSE-02

NC; Connection parts 1.4435; Tube EPDM Food safe; Medium temperature -30...+95°C

Pinch valve Series PI03

NO; Connection parts 1.4435; Tube EPDM Food safe; Control pressure has to be adjusted acc. to diagram in data-sheet; Medium temperature -30...+95°C

Pinch valve Series PI04

Directly operated; Body Aluminum; Aluminum flange; Tube Natural rubber; Control pressure 1,8...2,5 bar higher than effective pressure; Medium temperature -10...+80°C

Pinch valve Series PI02-RAA

Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; Prepared for 2 mechanical switches MSU01A

Knife gate valve with double acting actuator Series A1N2H2-5-PMB

ATEX II 2 G/D Ex h X; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+130°C

Butterfly valve with pneumatic actuator Series BULG-DSE-S22-A, BULC-DSE-S22-A, BULY-DSE-S22-A

NC; Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; Prepared for 2 inductive limit switches M18

Knife gate valves with single acting pneumatic actuator Series A1S2H2-5-PIB

Knife gate valves with single acting pneumatic actuator Series A1S2H2-5-B

NC (Double acting-Compressed air tank); Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C

Knife gate valves with single acting pneumatic actuator Series A1S2H2-5-B

Knife gate valves with single acting pneumatic actuator Series A1S2H2-5-PMB

Lug type; Double eccentric; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat RTFE; Medium temperature -10...+230°C; Single acting actuator; Control pressure 5,5...8bar

Butterfly valve with pneumatic actuator Series BUL-CSRS-S2

Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed FKM; Packing PTFE-Synthetic/FKM; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature 0...+120°C

Knife gate valve with double acting actuator Series A1N2H3-5V

Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed FKM; Screws Stainless steel; Packing PTFE-Synthetic/FKM; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature 0...+120°C

Knife gate valve with double acting actuator Series A1N2H3-5V-B

Knife gate valve with double acting actuator Series A1N2H3-5V-PIB

Wafer type; Body Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed NBR; Screws Stainless steel; Packing PTFE-Synthetic/NBR; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; Prepared for 2 inductive limit switches M18

Knife gate valve with double acting actuator Series A1N2H5-5N-PIB

Knife gate valve with double acting actuator Series A1N2H3-5V-PMB

NC; Body Stainless steel 1.4408; Seal PTFE; Female thread; For gaseous media and liquids; Closing against flow; Medium temperature -40...+180°C

Pneumatically operated seat valve Series 21IA.GC

Suitable for Pneumatic cylinder For knife gate valve Series A, AB, AD, F, L And U; Consists of Seal kit NBR And Piston

Set of wear parts

Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/Silicone; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+190°C; Pressure range 0...10bar

Butterfly valve with pneumatic actuator Series BUW4-DSTS-D22

ATEX II 2 G/D Ex h; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/Silicone; Nominal flange pressure PN10/16/ANSI150; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+190°C; Pressure range 0...10bar

Butterfly valve with pneumatic actuator Series BUW4-DSTS-D22-A

Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/Silicone; Nominal flange pressure PN10/16/ANSI150; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+190°C; Pressure range 0...10bar

Butterfly valve with pneumatic actuator Series BUW4-DSTS-S22

ATEX II 2 G/D Ex h; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/Silicone; Nominal flange pressure PN10/16/ANSI150; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+190°C; Pressure range 0...10bar

Butterfly valve with pneumatic actuator Series BUW4-DSTS-S22-A

ATEX II 3 G/D; Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Metal seal with abrasion protection; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C

Knife gate valve with double acting actuator Series A1N4H1-5-B

Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Sealed in both directions; Control pressure 5,5...8bar; Medium temperature -5...+90°C; Prepared for 2 mechanical switches MSU01A

Knife gate valve with double acting actuator Series AB1N

Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; Prepared for 2 inductive switches MSU03, MSU04, MSU05

Knife gate valve with double acting actuator Series A1N-PI

Directly operated; Tri-Clamp connection According to DIN32676 Row A; Connection part Stainless steel; Tube Natural rubber; Control pressure 1,8...2,5 bar higher than effective operating pressure; Medium temperature -10...+80 °C

Pinch valve Series PI08

Other materiales - A05

Wafer type; Rising stem; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Sealed in both directions; Voltage 400V/3/50Hz; Medium temperature -5...+90°C

Knife gate valve with electric actuator Series AB1EM2H2-5-B

Wafer type; Rising stem; Body 1.4408; Gate 1.4401; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Nominal flange pressure PN10; Sealed in both directions; Voltage 400V/3/50Hz; Medium temperature -5...+90°C

Knife gate valve with electric actuator Series AB1EM2I2-5

Body Aluminum; Seals PTFE/FKM; Female thread; Medium temperature -20...+120°C; Back pressure tight; Bi-directional flow

2/2-way coaxial valve Series CSE01/02-AT

Body Stainless steel 1.4404 Seals PTFE/FKM; Female thread; Medium temperature -20...+120°C; Back pressure tight; Bi-directional flow

2/2-way coaxial valve Series CSE01/02-ZT

Pressure range

Loading...
Design

Loading...
Voltage

Loading...
Function

Loading...
Connection

Loading...
DN

Loading...
Flange

Loading...
Switch design

Loading...
Operating pressure

Loading...
Male thread

Loading...
Diameter

Loading...
Female thread

Loading...
Keywords
- Verpackungsmaterial/EPR-Recycling

Reset

Other materiales - A05

A1N2H2-5-200-B-ABS40-CS02400-6-14423-0525

A1N2H2-5-200-B
Knife gate valve with double acting actuator Series A1N; Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; DN 200mm; Length 60mm; Pressure range 0…8bar
ABS40
Mounted pilot valve Series ABS; Suitable for Pneumatically operated knife gate valves; 5/2-way solenoid valve; Flow control valves; Silencer; Mounted at cylinder; Type of coil CS; Connector size 16mm; 5/2-Wege-Magnetventil (K52W1014); DN gate valve 50-400mm
CS02400
Coil Type CS; Connector size 16mm; Voltage 24VDC
6-14423-0525
Connector; Connector size 16mm; With integrated LED-yellow and VDR; Voltage 24VAC/DC

To Series: Knife gate valve with double acting actuator Series A1N

DN	Length	Pressure range	Medium temperature	Voltage	Design	Connection	Function	Flow rate	Actuation	Type
200 mm	60 mm	0...8 bar	-5...+90 °C	24VDC	With integrated LED-yellow and VDR	-	-	-	-	A1N2H2-5-200-B-ABS40-CS02400-6-14423-0525

A1N2I2-5-150-PI-ABS40-CS23050-6-14123-0000-S-MSU05

A1N2I2-5-150-PI
knife gate valve with double acting actuator series A1N-PI; wafer type; body AISI 316; gate AISI 316; soft sealed EPDM; packing PTFE-synthetic/EPDM; nominal flange pressure PN10; unidirectional sealed; control pressure 5,5...8bar; medium temperature -5...+90°C; prepared for 2 inductive switches MSU03, MSU04, MSU05; DN 150mm; length 60mm; pressure range 0…8bar
ABS40
mounted pilot valve series ABS; suitable for pneumatically operated knife gate valves; 5/2-way solenoid valve; flow control valves; silencer; mounted at cylinder; type of coil CS; connector size 16mm; 5/2-Wege-Magnetventil (K52W1014); DN gate valve 50-400mm
CS23050
coil type CS; connector size 16mm; voltage 230V/50-60Hz
6-14123-0000-S
connector; connector size 16mm; Standard; voltage 0-250VAC/DC
MSU05
electrical position indication series MSU; suitable for knife gate valve; mounted inductive proximity switch, 20...250VAC/DC (1 pieces); cable length 2m

To Series: Knife gate valve with double acting actuator Series A1N-PI

DN	Length	Pressure range	Cable length	Function	Switch design	Voltage	Design	Connection	Flow rate	Actuation	Electrical connection	Type
150 mm	60 mm	0...10 bar	2m	NO contact	Inductive proximity switch (1 Pieces)	230V/50-60Hz	Standard	-	-	-	-	A1N2I2-5-150-PI-ABS40-CS23050-6-14123-0000-S-MSU05

Mounted pilot valve Series ABS

Speed control; Suitable for Pneumatically operated butterfly valve; Standard coil C001; Connector size 22mm

To Series: Mounted pilot valve Series ABS

Varianten

Voltage	Design	Type	Sequence
230V/50-60Hz	Standard	ABS54-C001-22-C002-31-6	31460010
230V/50-60Hz	With integrated LED-yellow and VDR	ABS54-C001-22-C002-31-LV-1	31460015
24VDC / 48V/50-60Hz	Standard	ABS55-C001-03-C002-31-6	31460023
0-250VAC/DC	Standard	ABS54-C001-03-UL-C002-31-6	31460027

Mounted pilot valve Series ABS

Suitable for Pneumatically operated knife gate valves; 5/2-way solenoid valve; Flow control valves; Silencer; Mounted at cylinder; Type of coil CS; Connector size 16mm

To Series: Mounted pilot valve Series ABS

Varianten

DN	Voltage	Design	Connection	Function	Flow rate	Pressure range	Actuation	Type	Sequence
50...400 mm	24V/50-60Hz	Standard	-	-	-	-	-	ABS40-CS02450-6-14123-0000-S	31470001
50...400 mm	24VDC	Standard	-	-	-	-	-	ABS40-CS02400-6-14123-0000-S	31470002

Mounted pilot valve Series ABS

Suitable for Pneumatically operated knife gate valves; 5/2-way solenoid valve; Flow control valves; Silencer; Mounted at cylinder; Standard coil C001; Connector size 22mm

To Series: Mounted pilot valve Series ABS

Varianten

DN	Voltage	Design	Electrical connection	Type	Sequence
50...400 mm	230V/50-60Hz	Standard	-	ABS42-C001-22-C002-31-6	31480002
50...400 mm	24VDC / 48V/50-60Hz	With integrated LED-yellow and VDR	-	ABS42-C001-03-C002-31-LV-2	31480003
450;500 mm	24VDC / 48V/50-60Hz	With integrated LED-yellow and VDR	-	ABS43-C001-03-C002-31-LV-2	31480005

ABS33-BDA08230CS-C003-32-6

ABS33
mounted pilot valve series ABS; silencer; suitable for pinch valves series PI08, series VF; connector size 32mm; 3/2-Wegemagnetventil (31A2FV15-U); standard coil BDA
BDA08230CS
coil type BDA; standard; connector size 32mm; voltage 230VDC
C003-32-6
connector; connector size 32mm; standard; voltage 0...250VAC/DC

To Series: Mounted pilot valve Series ABS

Voltage	Cable length	Design	Voltage type	Approval	Type
230VDC	-	Standard	DC	CE	ABS33-BDA08230CS-C003-32-6

ABS77-C001-03-C002-31-LV-2

ABS77
Mounted pilot valve Series ABS; Silencer; Suitable for Coax valve Series CSE; 3/2-Wegemagnetventil (PS125-18-C); Standard coil C001; Connector size 22mm
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-LV-2
Connector; Connector size 22mm; With integrated LED-yellow and VDR; Voltage 24VAC/DC

To Series: Mounted pilot valve Series ABS77/ABS78

Voltage	Design	Type
24VDC / 48V/50-60Hz	With integrated LED-yellow and VDR	ABS77-C001-03-C002-31-LV-2

Knife gate valve with double acting actuator Series K1N

To Series: Knife gate valve with double acting actuator Series K1N

Grundversion

DN	Length	Pressure range	Type	Sequence
65 mm	40 mm	0...10 bar	K1EM2DI2-N-65-B-01	31610000
65 mm	40 mm	0...10 bar	K1N1I1-6-65-01	31610001
80 mm	50 mm	0...10 bar	K1N1I1-6-80-01	31610002
125 mm	50 mm	0...10 bar	K1N1I1-6-125-01	31610003
150 mm	60 mm	0...10 bar	K1N1I1-6-150-01	31610004

PI12-100-RAA-14

Pinch valve Series PI12; Directly operated; Connection flange according to DIN28459; Body And Flange Aluminum; Tube Natural rubber; Control pressure 1,8...2,5 bar higher than effective pressure; Medium temperature -10...+80 °C; DN 100mm; Operating pressure 0-6bar; Length 280mm; Control port 1/4"

To Series: Pinch valve Series PI12

DN	Length	Control port	Operating pressure	Type
100 mm	280 mm	1/4"	0...6 bar	PI12-100-RAA-14

A1MD2HS3-B-125-B-01

Knife gate valve without actuator Series A1ED; Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7 High temperature-Coating; Gate 1.4401 Mirror polished; Soft sealed FKM; Packing PTFE-Synthetic; Screws Stainless steel; Sliding guide PTFE; Nominal flange pressure PN10; Unidirectional sealed; Medium temperature -5...+200°C; DN 125mm; Length 50mm; Pressure range 0-10bar; 5 Flushing holes in the housing; Reinforced fixing ring Stainless steel; Abrasion protection Stainless steel; Packing gland cap Stainless steel

To Series: Knife gate valve with electric actuator Series A1ED

DN	Length	Pressure range	Type
125 mm	50 mm	0...10 bar	A1MD2HS3-B-125-B-01

Search

Your Cart

Categories

Valves, butterfly valves and gate valves - automatically operated

Other materiales - A05
