Valves, butterfly valves and gate valves - automatically operated

STASTO Allgemeine Preisliste (EUR)

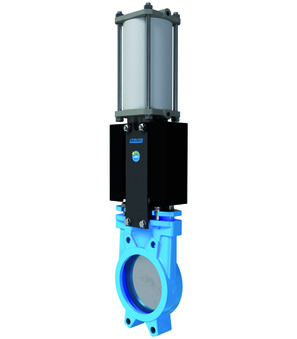

Knife gate valve with double acting actuator Series A1N2H3-5V-PMB

Knife gate valve with double acting actuator Series A1N2H3-5V-PMB

Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed FKM; Screws Stainless steel; Packing PTFE-Synthetic/FKM; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature 0...+120°C; Prepared for 2 mechanical switches MSU01A
To Series: Knife gate valve with double acting actuator Series A1N2H3-5V-PMB
Grundversion
DN Length Pressure range Type Sequence
100 mm 50 mm 0...10 bar A1N2H3-5V-100-PM-B 32500000
150 mm 60 mm 0...10 bar A1N2H3-5V-150-PM-B 32500001
21IA5T20GC2-H
Pneumatically operated seat valve Series 21IA.GC; NC; Body Stainless steel 1.4408; Seal PTFE; Female thread; For gaseous media and liquids; Closing against flow; Medium temperature -40...+180°C; G 3/4"; DN 20mm; Operating pressure 0…25bar; Control pressure 5…10bar
To Series: Pneumatically operated seat valve Series 21IA.GC
Female thread DN Operating pressure Control pressure Type
G 3/4" 20 mm 0...25 bar 5...10 bar 21IA5T20GC2-H
A1N2H5-5N-50-PIB
Knife gate valve with double acting actuator Series A1N; Wafer type; Body Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed NBR; Packing PTFE-Synthetic/NBR; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; DN 50mm; Length 40mm; Pressure range 0...10bar; Prepared for 2 inductive limit switches M18
To Series: Knife gate valve with double acting actuator Series A1N2H5-5N-PIB
DN Length Pressure range Type
50 mm 40 mm 0...10 bar A1N2H5-5N-50-PIB
WP-PC150-125
Set of wear parts; Suitable for Pneumatic cylinder For knife gate valve Series A, AB, AD, F, L And U; Consists of Seal kit NBR And Piston; Piston diameter 125mm
To Series: Set of wear parts
A1N2H5-5N-65-PIB
Knife gate valve with double acting actuator Series A1N; Wafer type; Body Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed NBR; Packing PTFE-Synthetic/NBR; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; DN 65mm; Length 40mm; Pressure range 0...10bar; Prepared for 2 inductive limit switches M18
To Series: Knife gate valve with double acting actuator Series A1N2H5-5N-PIB
DN Length Pressure range Type
65 mm 40 mm 0...10 bar A1N2H5-5N-65-PIB
WP-PC500-250
Set of wear parts; Suitable for Pneumatic cylinder For knife gate valve Series A, AB, AD, F, L And U; Consists of Seal kit NBR And Piston; Piston diameter 250mm
To Series: Set of wear parts
Piston diameter Type
250 mm WP-PC500-250
A1N2H5-5N-80-PIB
Knife gate valve with double acting actuator Series A1N; Wafer type; Body Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed NBR; Packing PTFE-Synthetic/NBR; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; DN 80mm; Length 50mm; Pressure range 0...10bar; Prepared for 2 inductive limit switches M18
To Series: Knife gate valve with double acting actuator Series A1N2H5-5N-PIB
DN Length Pressure range Type
80 mm 50 mm 0...10 bar A1N2H5-5N-80-PIB
WP-PC500-300
Set of wear parts; Suitable for Pneumatic cylinder For knife gate valve Series A, AB, AD, F, L And U; Consists of Seal kit NBR And Piston; Piston diameter 300mm
To Series: Set of wear parts
Piston diameter Type
250 mm WP-PC500-300
A1N2H5-5N-100-PIB
Knife gate valve with double acting actuator Series A1N; Wafer type; Body Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed NBR; Packing PTFE-Synthetic/NBR; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; DN 100mm; Length 50mm; Pressure range 0...10bar; Prepared for 2 inductive limit switches M18
To Series: Knife gate valve with double acting actuator Series A1N2H5-5N-PIB
DN Length Pressure range Type
100 mm 50 mm 0...10 bar A1N2H5-5N-100-PIB
WP-PC500R-150-160
Set of wear parts; Suitable for Pneumatic cylinder For knife gate valve Series A; Consists of Seal kit And Piston; Piston diameter 160mm
To Series: Set of wear parts
Piston diameter Type
160 mm WP-PC500R-150-160
Knife gate valve with double acting actuator Series A1N2H5-5N-PIB

Knife gate valve with double acting actuator Series A1N2H5-5N-PIB

Wafer type; Body Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed NBR; Screws Stainless steel; Packing PTFE-Synthetic/NBR; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; Prepared for 2 inductive limit switches M18
To Series: Knife gate valve with double acting actuator Series A1N2H5-5N-PIB
Grundversion
DN Length Pressure range Type Sequence
125 mm 50 mm 0...10 bar A1N2H5-5N-125-PIB 32520004
150 mm 60 mm 0...10 bar A1N2H5-5N-150-PIB 32520005
Butterfly valve with pneumatic actuator Series BUW4-DSTS-D22

Butterfly valve with pneumatic actuator Series BUW4-DSTS-D22

Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/Silicone; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+190°C; Pressure range 0...10bar

To Series: Butterfly valve with pneumatic actuator Series BUW4-DSTS-D22
Grundversion
DN Length Voltage Design Switch type Function Material of case Type Sequence
50 mm 43 mm - - - - - BUW4-050-DSTS-D22 32530000
65 mm 46 mm - - - - - BUW4-065-DSTS-D22 32530001
80 mm 46 mm - - - - - BUW4-080-DSTS-D22 32530002
100 mm 52 mm - - - - - BUW4-100-DSTS-D22 32530003
100 mm 52 mm - ATEX - - - BUW4-100-DSTS-D22-A 32530004
125 mm 56 mm - - - - - BUW4-125-DSTS-D22 32530006
Varianten
DN Length Voltage Design Switch type Function Material of case Type Sequence
100 mm 52 mm 24VDC / 48V/50-60Hz Standard - - - BUW4-100-DSTS-D22-ABS54-C001-03-C002-31-6 32530005
