Ball valves - manually operated

High pressure ball valve; Male thread According to DIN 2353; Body, Ball 1.4571/1.4404; Seals POM/NBR; For hydraulic liquids; Medium temperature -30...+100°C; Connection 35L/M45x2; Nominal diameter 25mm; Pressure range 0...350bar; Length 112mm; With Locking device Made of steel

BA234-38-L-01

High pressure ball valve; Female thread; Body, Ball 1.4571; Seals POM/EPDM; Medium temperature -40...+100°C; G 3/8"; Nominal diameter 10mm; Pressure range 0...500bar; Length 72mm

BA236-112-L-LD

High pressure ball valve; 3-way-type; Sealing on two sides; Pressure inlet just in front; Female thread; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Medium temperature -20...+100°C; For liquids; G 11/2"; Nominal diameter 40mm; Pressure range 0...350bar; Length 130mm; Ball L; With locking device

BA236-14-L-01

High pressure ball valve; 3-way-type; Sealing on two sides; Pressure inlet just in front; Female thread; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Medium temperature -20...+100°C; For liquids; G 1/4"; Nominal diameter 6mm; Pressure range 0...500bar; Length 69mm; Ball L; 2 Mounting holes 4,3mm

BA236-15L-L-01

High pressure ball valve; 3-way-type; Sealing on two sides; Pressure inlet just in front; Male thread According to DIN 2353; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Medium temperature -20...+100°C; Connection 15L/M22x1,5; Nominal diameter 13mm; Pressure range 0...500bar; Length 82mm; Ball L; Incl. mounting holes 2 x M5; Distance of the mounting holes 38mm

BA236-38-B

High pressure ball valve; 3-way-type; Sealing on two sides; Pressure inlet just in front; Female thread; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Medium temperature -20...+100°C; For liquids; G 3/8"; Nominal diameter 10mm; Pressure range 0...500bar; Length 72mm; Ball L; Drilled for mounting an actuator F03/M5; Square 9mm

BA237-25-L-01

Ball valve made of stainless steel; Full bore; Three-parts type; Socket weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Medium temperature -20...+160°C; Nominal diameter 25mm; Pressure range 0...40bar; Length 92mm; With control ball V 30...60

BA237-32-L-01

Ball valve made of stainless steel; Full bore; Three-parts type; Socket weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Medium temperature -20...+160°C; Nominal diameter 32mm; Pressure range 0...25bar; Length 106mm; With control ball V 30...60

BA237-40-L-01

Ball valve made of stainless steel; Full bore; Three-parts type; Socket weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Medium temperature -20...+160°C; Nominal diameter 40mm; Pressure range 0...25bar; Length 116mm; With control ball V 30...60

BA240-12-L-3H

Ball valve; Body Zinc plated steel; Ball Hard chrome plated steel; Seals PTFE/FPM; Medium temperature -10...+150°C; Pressure range 0...40Bar; Connection G 1/2"; Nominal diameter 15mm; Length 75mm; Incl. Inspection certificate EN-10204-3.1; For pressure, function and tightness; Test conditions According to DIN 3230; Part 5; Test pressure Max. 40bar

BA240-12N-L-3H

Ball valve; Body Zinc plated steel; Ball Hard chrome plated steel; Seals PTFE/FPM; Medium temperature -10...+150°C; Pressure range 0...40Bar; Connection 1/2"-NPT; Nominal diameter 15mm; Length 75mm; Incl. Inspection certificate EN-10204-3.1; For pressure, function and tightness; Test conditions According to DIN 3230; Part 5; Test pressure Max. 40bar

BA240-14-L-3H

Ball valve; Body Zinc plated steel; Ball Hard chrome plated steel; Seals PTFE/FPM; Medium temperature -10...+150°C; Pressure range 0...40Bar; Connection G 1/4" Nominal diameter 8mm; Length 60mm; Incl. Inspection certificate EN-10204-3.1; For pressure, function and tightness; Test conditions According to DIN 3230; Part 5; Test pressure Max. 40bar

BA240-14N-L-3H

Ball valve; Body Zinc plated steel; Ball Hard chrome plated steel; Seals PTFE/FPM; Medium temperature -10...+150°C; Pressure range 0...40Bar; Connection 1/4"-NPT; Nominal diameter 8mm; Length 60mm; Incl. Inspection certificate EN-10204-3.1; For pressure, function and tightness; Test conditions According to DIN 3230; Part 5; Test pressure Max. 40bar

BA241-32-L-0

Flanged ball valve; Flange According to ANSI 300, Full bore; Body Steel; Ball 1.4301; Seals PTFE/FKM; Pressure range 0...50bar; Medium temperature -10...+160°C; Nominal diameter 32mm; Length 54mm; Free of oil and grease for oxygen

BA241-40-L-0

Flanged ball valve; Flange According to ANSI 300, Full bore; Body Steel; Ball 1.4301; Seals PTFE/FKM; Pressure range 0...50bar; Medium temperature -10...+160°C; Nominal diameter 40mm; Length 63,5mm; Free of oil and grease for oxygen

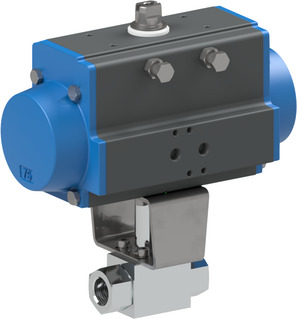

BA243-38-D0

Ball valve with pneumatic actuator; Female thread; Body; Ball 1.4571/1.4404; Seals PEEK/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+100°C; G 3/8"; Nominal diameter 10mm; Pressure range 0...500bar; Length 72mm; Actuator PAD063

BA246-12-2D0

Ball valve with pneumatic actuator; 3-way-type; Sealed on all sides; Female thread; Body 1.4571; Ball 1.4571 Hard chrome plated; Seals PEEK/NBR; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -30...+100°C; G 1/2"; Nominal diameter 13mm; Pressure range 0-400bar; Length 136mm; Ball T; Flow path 02; Actuator PAD063

BA246-12-B

High pressure ball valve; 3-way-type; Sealed on all sides; Female thread; Body 1.4571; Ball 1.4571 Hard chrome plated; Seals PEEK/NBR; Medium temperature -30...+100°C; G 1/2"; Nominal diameter 13mm; Pressure range 0-400bar; Length 136mm; Ball T; Flange ISO5211 F05; Square 14mm

BA246-12-L

BA247-15-L

Flanged ball valve; With Heating jacket; Flange PN16, Full bore; Body, Ball 1.4401; Seals PTFE/EPDM; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 15mm; Length 35mm; Nominal diameter Heating jacket DN15; Flange Heating jacket PN16
