Female thread; Body, Ball Brass; Seals PTFE/FKM/EPDM; Medium temperature 0...+100°C
Ball valve with electrical actuator Series 8E014 -
3-way-type; Sealing on three ports; Female thread; Body, Ball Brass; Seals PTFE/FKM; Medium temperature 0...+100°C
Ball valve with electrical actuator Series 8E029, 8E028 -
Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C
Ball valve with electrical actuator Series 8E004 -
Butt weld ends; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C
Ball valve with electrical actuator Series 8E033 -
Socket weld ends; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C
Ball valve with electrical actuator Series 8E032 -
Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature 0...+100°C
Ball valve with electrical actuator Series 8E003 -
Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C
Ball valve with electrical actuator Series 8E002 -
Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Medium temperature -20...+160°C
Ball valve with electrical actuator Series 8E031 -
Socket weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Medium temperature -20...+160°C
Ball valve with electrical actuator Series 8E030 -
3-way-type; Sealing on three ports; Body 1.4404 Polished, Ball 1.4404; Seals PTFE/FKM; Full bore; Medium temperature 0...+100°C
Ball valve with electrical actuator Series BA541, BA542
Ball valves - electrically operated
| Butt weld ends | DN | Length | Voltage | Pressure range | Operating time | Type |
|---|---|---|---|---|---|---|
| 10 mm | 10 mm | 57 mm | 24VAC/DC | 0...64 bar | 10 s | 8E033002-3/8" |
| Female thread | DN | Length | Voltage | Pressure range | Operating time | Type |
|---|---|---|---|---|---|---|
| RP 1" | 25 mm | 90 mm | 24VAC/DC | 0...64 bar | 10 s | 8E003002-1" |
| Butt weld ends | DN | Length | Voltage | Pressure range | Operating time | Type |
|---|---|---|---|---|---|---|
| 10 mm | 10 mm | 57 mm | 100-240VAC | 0...64 bar | 10 s | 8E033004-3/8" |
| Female thread | DN | Length | Voltage | Pressure range | Operating time | Type |
|---|---|---|---|---|---|---|
| RP 1" | 25 mm | 90 mm | 100-240VAC | 0...64 bar | 10 s | 8E003004-1" |

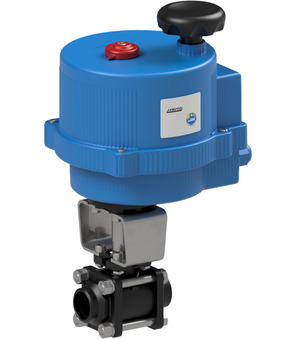

Ball valve with electrical actuator Series 8E033
Butt weld ends; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C
| Butt weld ends | DN | Length | Voltage | Pressure range | Operating time | Type | Sequence |
|---|---|---|---|---|---|---|---|
| 15 mm | 15 mm | 65 mm | 24VAC/DC | 0...64 bar | 10 s | 8E033002-1/2" | 25510008 |
| 15 mm | 15 mm | 65 mm | 100-240VAC | 0...64 bar | 10 s | 8E033004-1/2" | 25510009 |
| Female thread | DN | Length | Voltage | Pressure range | Operating time | Type |
|---|---|---|---|---|---|---|
| RP 1 1/4" | 32 mm | 100 mm | 24VAC/DC | 0...64 bar | 10 s | 8E003002-11/4" |

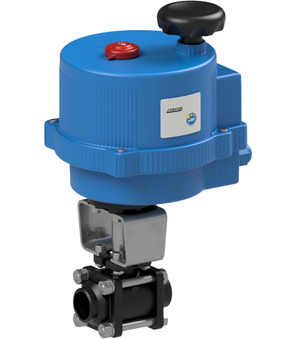

Ball valve with electrical actuator Series 8E033
Butt weld ends; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C
| Butt weld ends | DN | Length | Voltage | Pressure range | Operating time | Type | Sequence |
|---|---|---|---|---|---|---|---|
| 20 mm | 20 mm | 76 mm | 24VAC/DC | 0...40 bar | 10 s | 8E033002-3/4" | 25510010 |
| 20 mm | 20 mm | 76 mm | 100-240VAC | 0...40 bar | 10 s | 8E033004-3/4" | 25510011 |
| Female thread | DN | Length | Voltage | Pressure range | Operating time | Type |
|---|---|---|---|---|---|---|
| RP 1 1/4" | 32 mm | 100 mm | 100-240VAC | 0...64 bar | 10 s | 8E003004-11/4" |
| Butt weld ends | DN | Length | Voltage | Pressure range | Operating time | Type |
|---|---|---|---|---|---|---|
| 25 mm | 25 mm | 92 mm | 24VAC/DC | 0...40 bar | 8 s | 8E033002-1" |
| Female thread | DN | Length | Voltage | Pressure range | Operating time | Type |
|---|---|---|---|---|---|---|
| RP 1 1/2" | 40 mm | 112 mm | 24VAC/DC | 0...64 bar | 8 s | 8E003002-11/2" |
| Butt weld ends | DN | Length | Voltage | Pressure range | Operating time | Type |
|---|---|---|---|---|---|---|
| 25 mm | 25 mm | 92 mm | 100-240VAC | 0...40 bar | 8 s | 8E033004-1" |
| Female thread | DN | Length | Voltage | Pressure range | Operating time | Type |
|---|---|---|---|---|---|---|
| RP 1 1/2" | 40 mm | 112 mm | 100-240VAC | 0...64 bar | 8 s | 8E003004-11/2" |
| Butt weld ends | DN | Length | Voltage | Pressure range | Operating time | Type |
|---|---|---|---|---|---|---|
| 32 mm | 32 mm | 106 mm | 24VAC/DC | 0...25 bar | 8 s | 8E033002-11/4" |
| Female thread | DN | Length | Voltage | Pressure range | Operating time | Type |
|---|---|---|---|---|---|---|
| RP 2" | 50 mm | 135 mm | 24VAC/DC | 0...64 bar | 8 s | 8E003002-2" |
| Butt weld ends | DN | Length | Voltage | Pressure range | Operating time | Type |
|---|---|---|---|---|---|---|
| 32 mm | 32 mm | 106 mm | 100-240VAC | 0...25 bar | 8 s | 8E033004-11/4" |
| Female thread | DN | Length | Voltage | Pressure range | Operating time | Type |
|---|---|---|---|---|---|---|
| RP 2" | 50 mm | 135 mm | 100-240VAC | 0...64 bar | 8 s | 8E003004-2" |
Ball valve with electrical actuator Series 8E033
Butt weld ends; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C
| Butt weld ends | DN | Length | Voltage | Pressure range | Operating time | Type | Sequence |
|---|---|---|---|---|---|---|---|
| 40 mm | 40 mm | 116 mm | 24VAC/DC | 0...25 bar | 9 s | 8E033002-11/2" | 25510016 |
| 40 mm | 40 mm | 116 mm | 100-240VAC | 0...25 bar | 9 s | 8E033004-11/2" | 25510017 |
