Ball valves - automatically operated

STASTO Allgemeine Preisliste (EUR)

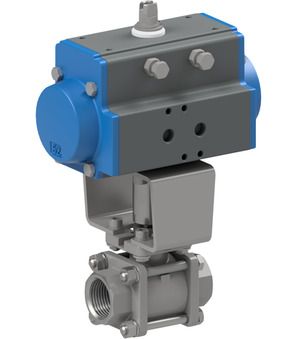

BA033-12-S0-P1-01
Ball valve with pneumatic actuator; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator ; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 1/2"; Nominal diameter 15mm; Pressure range 0…64bar; Length 65mm; Actuator PAS0525; Mounted pilot valve; NAMUR; Standard coil MA22; Connector size 22mm; 3/2-way solenoid valve - NAMUR type (MNH-310-701-01); 24VDC; Incl. Technical valve passport RU According to TR CU 032/2013; Incl. TR CU 032/2013 (Incl. Strength calculation), TR CU 010/2011; Incl. EAC-Certificate
BA033-20N-0F-C-01
Ball valve with electrical actuator; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; Thread 2"NPT; DN 50mm; Pressure range 0-25bar; Length 136mm; Operating time 15s; Voltage 100-240VAC; Actuator: Protection class IP68; CSA-Certified; With emergency hand wheel
BA033-212-D0-01
Ball valve with pneumatic actuator; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 21/2"; Nominal diameter 65mm; Pressure range 0-16bar; Length 153mm; Actuator PAD085; Table height 120mm
BA033-212-D0-02
Ball valve with pneumatic actuator; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 21/2"; Nominal diameter 65mm; Pressure range 0-16bar; Length 153mm; Actuator PAD085; Table height 120mm; Table And Bolt 1.4301
BA033-212-D0-A-01
Ball valve with pneumatic actuator; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; NC; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 21/2"; Nominal diameter 65mm; Pressure range 0-16bar; Length 153mm; Actuator PAD085; ATEX-Antistatic; Mounted pilot valve; NAMUR; 24VDC; ATEX-ExmbIIT5; Cable length 3m
BA033-34N-0E-C-01
Ball valve with electrical actuator; Female thread; Body Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; Thread 3/4"NPT; DN 20mm; Pressure range 0-40bar; Length 76mm; Operating time 15s; Voltage 24VAC/DC; Actuator: Protection class IP67; CSA-Certified; With emergency handwheel
BA033-34N-0F-C-01
Ball valve with electrical actuator; Female thread; Body Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; Thread 3/4"NPT; DN 20mm; Pressure range 0-40bar; Length 76mm; Operating time 15s; Voltage 100-240VAC; Actuator: Protection class IP68; CSA-Certified; With emergency handwheel

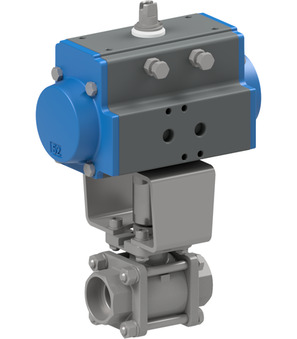

BA035-32-S2
Ball valve with pneumatic actuator; Socket weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator; Control pressure 4...8bar; Medium temperature -20...+160°C; Nominal diameter 32mm; Pressure range 0-25bar; Length 106mm; Actuator PAS1151
BA036-10-0N
Ball valve with electrical actuator; For steam; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Medium temperature -20...+198°C; RP 1"; DN 25mm; Pressure range 0…15bar; Length 92mm; Operating time 22s; Voltage 15-30V/50-60Hz; 12-48VDC; Protection class IP66; With Accumulator for safety position NC; 2 potential-free contacts for end position feedback; Incl. manual emergency override; For a maximum of 100 operations a day
BA036-112-S0-02
Ball valve with pneumatic actuator; Female thread; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+198°C; RP 11/2"; Nominal diameter 40mm; Pressure range 0-25bar; Length 116mm; Actuator PAS1005; Compensation hole at the inlet; NC
BA036-112-T0-01
Ball valve with pneumatic actuator; Female thread; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+198°C; RP 11/2"; Nominal diameter 40mm; Pressure range 0-25bar; Length 116mm; Actuator PAS1005; Compensation hole at the inlet; NO
BA036-114-S0-01
Ball valve with pneumatic actuator; Female thread; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+198°C; RP 11/4"; Nominal diameter 32mm; Pressure range 0-25bar; Length 106mm; Actuator PAS0855; Compensation hole at the inlet; NC
BA036-114-T0-01
Ball valve with pneumatic actuator; Female thread; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+198°C; RP 11/4"; Nominal diameter 32mm; Pressure range 0-25bar; Length 106mm; Actuator PAS0855; Compensation hole at the inlet; NO
BA036-12-S0-01
Ball valve with pneumatic actuator; Female thread; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+198°C; RP 1/2"; Nominal diameter 15mm; Pressure range 0-65bar; Length 65mm; Actuator PAS0635; Compensation hole at the inlet; NC
BA036-20-D0-02
Ball valve with pneumatic actuator; Female thread; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Double acting actuator; Control pressure 5,5...8bar; For steam Medium temperature -20...+198°C; RP 2"; Nominal diameter 50mm; Pressure range 0-15bar; Length 136mm; Actuator PAD085; Special-Mounting bracket, Height 120mm
BA036-20-T0
Ball valve with pneumatic actuator; For steam; Female thread; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator; Control pressure 5,5...8bar; Pressure range Steam 0...15bar; Medium temperature -20...+198°C; RP 2"; Nominal diameter 50mm; Length 136mm; Actuator PAS1005; Safety position Open

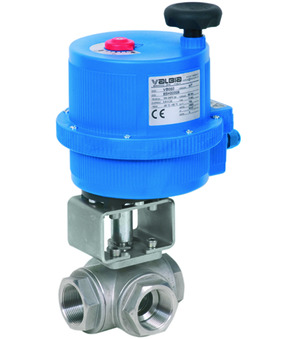

BA037-10-SP0L-01
Ball valve with electrical actuator; 3-way-type; Sealing on three ports; Body, Ball 1.4401; Seals PTFE; Reduced bore; Medium temperature -20...+160°C; G 1"; DN 20mm; Pressure range 0-64bar; Length 102,4mm; Operating time 8s; Voltage 24VAC/DC; Ball L; Electrical actuator 180° Rotation angle; Flow path 05; Additional All Closed
BA037-20-SP-0L-01
Ball valve with electrical actuator; 3-way-type; Sealing on three ports; Body, Ball 1.4401; Seals PTFE/EPDM; Reduced bore; Medium temperature -20...+160°C; G 2"; DN 38mm; Pressure range 0-64bar; Length 149mm; Voltage 24VAC/DC; Ball L; Flow path 06-07; 3 Positions 0°-90°-180°
BA037-20-SPCE-01
Ball valve with electrical actuator PSQ203; 3-way-type; Sealing on three ports; Body, Ball 1.4401; Seals PTFE/EPDM; Reduced bore; Medium temperature -20...+160°C; G 2"; DN 38mm; Pressure range 0-64bar; Length 149mm; Voltage 24VAC/DC; Ball L; Flow path 06-07; Operating time 60-120s; Outlet signal 0(4)-20mA bzw. 0(2)-10V; Fault relay; 3 Positions 0°-90°-180°
BA037-34-SP0L-01
Ball valve with electrical actuator; 3-way-type; Sealing on three ports; Body, Ball 1.4401; Seals PTFE; Reduced bore; Medium temperature -20...+160°C; G 3/4"; DN 15mm; Pressure range 0-64bar; Length 88,6mm; Operating time 8s; Voltage 24VAC/DC; Ball L; Electrical actuator 180° Rotation angle; Flow path 05; Additional All Closed
