Ball valves - automatically operated

SQ05.2-0M16-Q11-01

Electrical actuator; AUMA NORM SQ05.2; Flange: F05-F07; AF11; Voltage 400V/50Hz; 3-phase; Protection class IP68; Operating time 16 Seconds; 50-150Nm; Connection plan 00R1AA-101-000

SQ05.2-0M16-Q17-01

Electrical actuator; AUMA NORM SQ05.2; Flange: F05-F07; AF17; Voltage 400V/50Hz; 3-phase; Protection class IP68; Operating time 16 Seconds; 50-150Nm; Connection plan 00R1AA-101-000

BADA-100-IITV-S0

Ball valve with pneumatic rotary actuator 125 single-acting, body and ball 1.4301, flange PN 16 connection DN100

Ball valve with electrical actuator; Female thread; Body, Ball Brass; Seals PTFE/FKM/EPDM; Medium temperature 0...+100°C; RP 4"; DN 100mm; Pressure range 0-16bar; Length 225mm; Operating time 27s; Voltage 24VAC/DC; NC-Accumulator for safety position

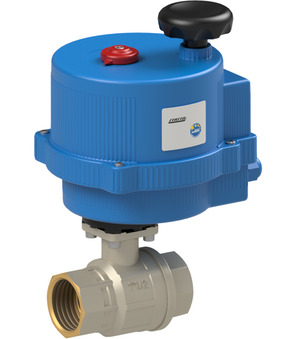

BAB1-012-BLTV-CL

Motorised ball valve, 24VAC/DC incl. positioner 4-20mA/0-10V connection RP4", 0-16 bar body brass, seal PTFE/FKM temperature range 0-100°C

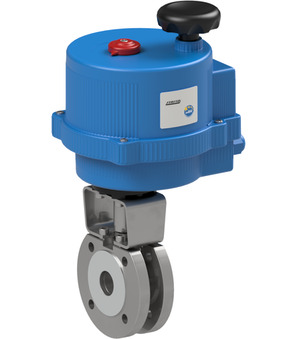

BA044-50-0Q-A

Flanged ball valve with electrical actuator; Length According to EN558−1 R27; Body Zinc plated steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; DN 50mm; Pressure range 0-40bar; Flange PN40; Length 150mm; Operating time 20s; Voltage 100-240V/50-60Hz; 100-350VDC; Actuator VRX75; Protection class IP68; ATEX II2GD ExdIIBT6Gb ExtbIIICT80°CDb; 2 potential-free contacts for end position feedback; Incl. manual emergency override

BA162-40-S0-A-01

ball valve with pneumatic actuator; ATEX II 2G/D c T3; fire-safe; TA-Luft; length according to EN558−1R101; flange PN100; full bore; body stainless steel AISI 316, ball AISI 316L; seals PTFE/FKM/graphite; pressure range 0...100bar; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 40mm; pressure range 0...100bar; length 85mm; actuator PAS1155; Oil and grease-free design for hydrogen and oxygen; ATEX II 2G Ex h IIC T6...T1 Gb and II 2D Ex h IIIC T85°C...T450°C Db

BA162-40-S0-AH

Ball valve with pneumatic actuator; ATEX II 2G/D c T3; Fire-safe; TA-Luft; Length According to EN558−1R101; Flange PN100; Full bore; Body Stainless steel AISI 316, Ball 1.4404; Seals PTFE/FKM/Graphite; Pressure range 0...100bar; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 40mm; Pressure range 0...100bar; Length 85mm; Actuator PAS1155; Free of oil and grease for hydrogen

BA051-D25-0Q-A

Flanged ball valve with electrical actuator; D-Flanges; Protection class IP68; ATEX II2GD ExdIIBT6Gb ExtbIIICT80°CDb; Length According to EN558−1 R27; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Medium temperature -20...+160°C; DN 25mm; Pressure range 0-40bar; Flange PN40; Length 125mm; Operating time 15s; Voltage 100-240V/50-60Hz; 100-350VDC

BA549-40-D0

Flanged ball valve with pneumatic actuator; 3-way-type; Sealing on three ports; Body, Ball 1.4401; Seals PTFE/EPDM Special; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -45...+150°C; Nominal diameter 40mm; Length 200mm; Pressure range 0-40bar; Flange PN40; Actuator PAD075; Ball T

BA162-40-S0-AH3C

BA038-20-2S0-01-EC0-001-EB0X03

BA038-20-2S0-01
Ball valve with pneumatic actuator; Inverse direction of rotation; Flow path 02; 3-way-type; Sealing on three ports; Body, Ball 1.4401; Seals PTFE; Single acting actuator; Reduced bore; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...64bar; G 2"; Nominal diameter 38mm; Length 149mm; Actuator PAS1155; Ball T
EC0-001
Mounted pilot valve; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 3/2-way solenoid valve - NAMUR type (NM32W1S-PR); Incl. coil and connector 24VDC; Actuator PAS052-270
EB0X03
Mounted limit switch box; IP65; 2 Micro switches; Suitable for Actuators PAD/PAS052-270; Switching capacity 4A/230VAC-1A/24VDC; Switch type Crouzet 83.161.301; Contact material Silver-nickel; Material of case Plastic; Cover Aluminum

BA465-65-S0-A-01

Flanged ball valve with pneumatic actuator; ATEX II 2 G/D; Fire-safe; TA-Luft; Body, Ball 1.4401; Seals PTFE-Graphite reinforced; Stem sealing V-Pack; V-Ball 90°; Compensation hole; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -40...+180°C; Nominal diameter 65mm; Pressure range 0-16bar; Flange PN16; Length 105mm; Actuator PAS1255

BA049-80-PL

Flanged ball valve with electrical actuator; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; DN 80mm; Pressure range 0-16bar; Length 122mm; Operating time 27s; Voltage 24VAC/DC; NC-Accumulator for safety position

BA143-100-S0

Flanged ball valve with pneumatic actuator; Fire-safe; TA-Luft; Length According to EN558−1R27; Body Zinc plated steel; Ball 1.4301; Seals PTFE/Graphoil/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; Nominal diameter 100mm; Pressure range 0-16bar; Flange PN16; Length 190mm; Actuator PAS1255; With additional compensation hole in the ball

BA541-20-0L-01

Ball valve with electrical actuator; 3-way-type; Sealing on three ports; Body 1.4404 Polished, Ball 1.4404; Seals PTFE/FKM; Full bore; Medium temperature 0...+100°C; G 2"; DN 50mm; Pressure range 0-25bar; Length 144mm; Operating time 27s; Voltage 24VAC/DC; Ball T Special version: Actuator VB110

AS80-0B30-01

Electrical actuator; Suitable for Valves with 90° operation; For a maximum of 30 operations a day; 2 potential-free contacts for end position feedback; 2 Torque switches; Incl. manual emergency override; Torque 800Nm; Operating time 30Seconds; Flange ISO5211-F12; Voltage 230V50Hz; Protection class IP67; Without bushing

PFQ80-0F32-Q17

Electrical actuator; Max. torque 80Nm; Operating time 32...160 Seconds; Flange ISO5211-F05/F07/F10; AF 17mm; Voltage 100...240VAC; Protection class IP67; S2-15min.; S4-50%

BA045-100-0L

Flanged ball valve with electrical actuator; Flange PN40; Body Steel; Ball 1.4301; Seals Fibre-glass-reinforced PTFE/FKM; Medium temperature -10...+160°C; DN 100mm; Pressure range 0…40bar; Length 152mm; Operating time 50s; Voltage 24VAC/DC
