Ball valves - automatically operated

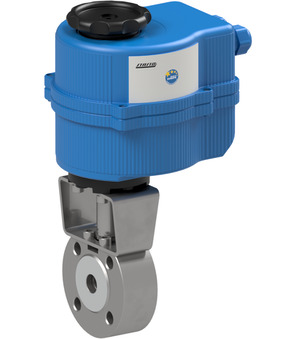

Flanged ball valve with electrical actuator; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; DN 32mm; Pressure range 0-16bar; Length 54mm; Operating time 8s; Voltage 24VAC/DC; NC-Accumulator for safety position

BA185-40-0H-01

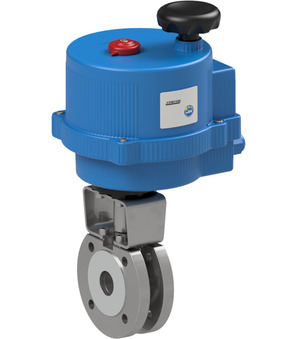

Flanged ball valve with electrical actuator; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; DN 40mm; Pressure range 0-16bar; Length 63,5mm; Operating time 9s; Voltage 100-240VAC; Free of oil and grease for oxygen

BA119-114-D0-01

Ball valve with pneumatic actuator; 3-way-type; Sealing on four ports; Body, Ball 1.4404; Seals PTFE/EPDM Special; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -45...+140°C; RP 11/4"; Nominal diameter 32mm; Pressure range 0-40bar; Length 118mm; Actuator PAD075; Ball T; Incl. Mounting bridge Height 60mm

BA688-25-D0-01

Ball valve with pneumatic actuator; Butt weld ends; Body, Ball, Stem Stainless steel; Seals Fibre-glass-reinforced PTFE/FFKM; Double acting actuator; Control pressure 5,5...8bar; Nominal diameter 25mm; Pressure range 0…400bar; Actuator PAD063-H (High temperature design)

BA080-20-0F-C

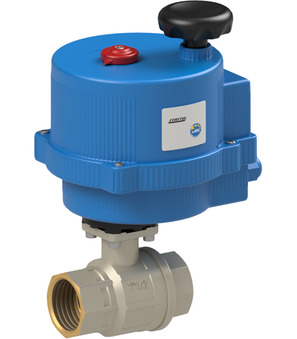

Ball valve with electrical actuator; Female thread; Body, Ball Brass; Seals PTFE/FKM; Medium temperature 0...+100°C; RP 2"; DN 50mm; Pressure range 0-40bar; Length 138mm; Operating time 7s; Voltage 100-240VAC; Electrical actuator CSA-Certified

BA080-20-H8

ball valve with hydraulic actuator; housing, ball brass; seals PTFE/FKM/EPDM; double acting actuator; control pressure 20...120bar; medium temperature -20...+160°C; RP 2"; nominal diameter 50mm; pressure range 0-40bar; length 138mm; actuator HAD28

BA069-212-S0

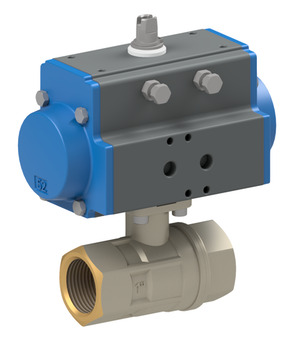

Ball valve with pneumatic actuator; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 21/2"; Nominal diameter 65mm; Pressure range 0...25bar; Length 159mm; Actuator PAS1255

BA081-20-0F-C

Ball valve with electrical actuator; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; RP 2"; DN 50mm; Pressure range 0-64bar; Length 135mm; Operating time 7s; Voltage 100-240VAC; Electrical actuator CSA-Certified

BAC1-010-SSTV-D0A

Ball valve with pneumatic rotary actuator 85 double-acting, body and ball 1.4401, thread i/i ATEX antistatic connection RP21/2"

BA413-50-S0-A3C

Flanged ball valve with pneumatic actuator; ATEX II 2 G/D c T3; Fire-safe; TA-Luft; Length According to ANSI B16.10; Flange ANSI150; Full bore; Body 1.4408; Ball 1.4401; Seals TFM-MPTFE/Graphoil/V-Pack PTFE; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -40...+180°C; Pressure range 0...20bar; Nominal diameter 50mm; Length 178mm; Actuator PAS1005; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness

PAD085-SS

Pneumatic actuator; Double acting; ATEX II 2 G/D; Completely made of stainless steel; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Torque at 5,5bar 96Nm

BA049-32-CL

BA262-25-S2-A

Flanged ball valve with pneumatic actuator API608; ATEX II 2 G/D c T3; Fire safe/anitstatic according to ATEX/TA-Luft certification; Length According to ASME B16.10; Full bore; Flange ANSI 150; Body, Ball 1.4408; Seals Reinforced PTFE/FKM; Single acting actuator; Control pressure 4...8bar; Medium temperature -20...+180°C; Pressure range 0...20bar; Nominal diameter 25mm; Length 127mm; Actuator PAS1003

SQ4-0B6

Electrical actuator; Suitable for Valves with 90° operation; For a maximum of 30 operations a day; Limit switch-off; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 45Nm; Operating time 6s; Duty cycle 30%; Flange ISO5211 F05/F07; Bushing unmachined; Voltage 230V/50Hz; Protection class IP67

BA052-50-0L

Flanged ball valve with electrical actuator; Flange PN40; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; DN 50mm; Pressure range 0-40bar; Length 82mm; Operating time 9s; Voltage 24VAC/DC

BA261-40-S0-A-01

Flanged ball valve with pneumatic actuator; ATEX II 2G Ex h IIC T6...T1 Gb / II 2D Ex h IIIC T85°C...T450°C Db Fire-Safe; TA-Luft; Body, Ball 1.4408; Seals PTFE/FKM; Single acting actuator; ATEX II 2G Ex h IIC T6 Gb / II 2D Ex h IIIC T85°C Db; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 40mm; Pressure range 0-40bar; Flange PN40; Length 79mm; Actuator PAS0855; Free of oil and grease for hydrogen

BA701-10-S0-01

Ball valve with pneumatic actuator; Female thread; Body, Ball 1.4571/1.4404; Seals PEEK/FKM; With erosion protection ring; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+200°C; Application for liquids, gaseous media and steam; G 1"; Nominal diameter 25mm; Pressure range 0...150bar; Length 113mm; Actuator PAS1255

BA162-25-S0-A-01

Ball valve with pneumatic actuator; ATEX II 2G/D c T3; Fire-Safe; TA-Luft; Overall length according to EN558−1R101; Flange PN100, Tongue and groove According to DIN EN 1092-1; Full bore; Body Stainless steel 1.4408, Ball 1.4404; Seals PTFE/FKM/Graphite; Pressure range 0...100bar; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 25mm; Pressure range 0...100bar; Length 65mm; Actuator PAS0855; Free of oil and grease for hydrogen

BA080-212-PL

Ball valve with electrical actuator; Female thread; Body, Ball Brass; Seals PTFE/FKM/EPDM; Medium temperature 0...+100°C; RP 21/2"; DN 65mm; Pressure range 0-25bar; Length 165mm; Operating time 9s; Voltage 24VAC/DC; NC-Accumulator for safety position

VB190M-0F27-Q17

Electrical actuator; Metal; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 190Nm; Operating time 27s; Flange ISO5211 F07/F10-star 17mm; Voltage 100...240VAC; Protection class IP68
