Ball valves - automatically operated

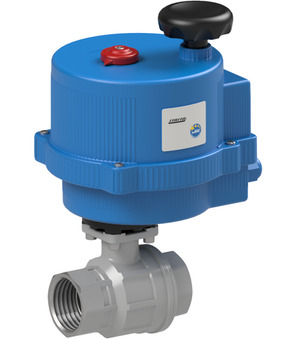

Ball valve with electrical actuator; Female thread; Body, Ball Brass; Seals PTFE/FKM; Medium temperature 0...+100°C; RP 1/2"; DN 15mm; Pressure range 0-40bar; Length 67mm; Operating time 10s; Voltage 100-240VAC; NC-Accumulator for safety position

BA740-25-S0-A

ball valve with pneumatic actuator; ATEX II 2 G/D c T3; welding ends; welding ends ISO 1127 33,7 x 2; three-parts type; housing, ball AISI 316; seals PTFE/FFKM; single acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 25mm; pressure range 0...40bar; length 118mm; actuator PAS0855

BA229-112-B-0

Ball valve; Female thread; Body, Ball Stainless steel; Seals PTFE/FPM; Medium temperature -10...+150°C; G1 1/2"; Nominal diameter 40mm; Pressure range 0-40bar; Flange ISO5211 F07; Square 17mm; Design TA-Luft For oxygen

BA081-10-D0-B-02

Ball valve with pneumatic actuator; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 1"; Nominal diameter 25mm; Pressure range 0-64bar; Length 90mm; Actuator PAD052SS-Stainless steel

BAC1-009-SSCV-D0Z03

Ball valve with mounted rotary actuator double-acting 85 material 1.4401, seal PTFE/carbo-graphite reinforced, 2" with mounted limit switch box EBOX03 connection RP2"

BA080-20-PH

Ball valve with electrical actuator; Female thread; Body, Ball Brass; Seals PTFE/FKM; Medium temperature 0...+100°C; RP 2"; DN 50mm; Pressure range 0-40bar; Length 138mm; Operating time 8s; Voltage 100-240V50-60Hz; NC-Accumulator for safety position

BA066-12-T0

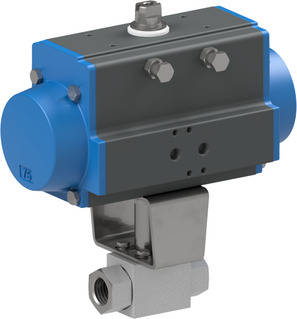

Ball valve with pneumatic actuator; Female thread; Body, Ball 1.4571; Seals PEEK/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; For hydraulic liquids; G 1/2"; Nominal diameter 13mm; Pressure range 0-400bar; Length 85mm; Actuator PAS0855; Safety position NO

BA074-50-S0

Flanged ball valve with pneumatic actuator; Flange Acc. to ANSI 150; Body Steel; Ball 1.4301; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+160°C; Pressure range 0...20bar; Nominal diameter 50mm; Length 82mm; Actuator PAS1005

BA052-32-S0-A

flanged ball valve with pneumatic actuator; ATEX II 2 G/D; flange PN40; housing, ball AISI 316; seals PTFE-reinforced/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0…40bar; nominal diameter 32mm; length 54mm; actuator PAS0855

BA396-10-S0-0

Ball valve with pneumatic actuator; Ball valve; Female thread; Body, Ball Stainless steel; Seals PTFE-glasfaserverstärkt/FKM; Single acting actuator; NC; Control pressure 5,5...8bar; -10...+150°C; G1"; Nominal diameter 25mm; Pressure range 0-40bar; Length 90mm; Design TA-Luft; Free of oil and grease for oxygen; Actuator PAS0855

BA081-10-PL

ball valve with electrical actuator; female thread; housing, ball AISI 316; seals PTFE/FKM; medium temperature 0...+100°C; RP 1"; DN 25mm; pressure range 0-64bar; length 90mm; operating time 10s; voltage 24VAC/DC; incl. accumulator for safety position NC

BAC1-009-SSCV-S0

Ball valve with pneumatic actuator; Female thread; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+198°C; RP 2"; Nominal diameter 50mm; Pressure range 0-15bar; Length 136mm; Actuator PAS1005

BA040-40-0L

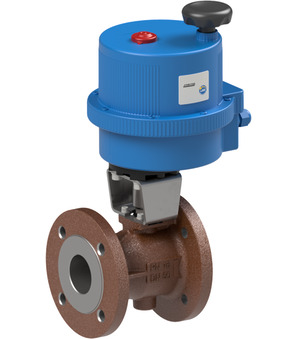

Flanged ball valve with electrical actuator; Length According to EN558−1R24; Flansch PN16; Body Cast iron EN-GJL-250; Ball 1.4301; Seals PTFE/NBR; Medium temperature -10...+120°C; Pressure range 0…16bar; DN 40mm; Length 140mm; Operating time 9s; Voltage 24VAC/DC

BA080-34-PH

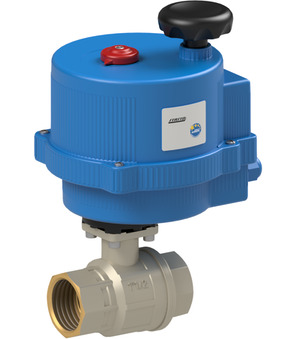

Ball valve with electrical actuator; Female thread; Body, Ball Brass; Seals PTFE/FKM/EPDM; Medium temperature 0...+100°C; RP 3/4"; DN 20mm; Pressure range 0-40bar; Length 76mm; Operating time 8s; Voltage 100-240VAC; NC-Accumulator for safety position

BA081-12-CL

BA081-12-B
Ball valve made of stainless steel Series BA081; Full bore; Two-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; Connection G 1/2"; Nominal diameter 15mm; Pressure range 0...64bar; Length 67mm
VB030-L-P0S
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Incl. Positioner 4-20mA/0-10V; Torque 30Nm; Operating time 8s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 24VAC/DC; Protection class IP67
VK1109
Square adapter Series VK; 11X9; Length 10mm; Material Stahl

BA196-25-S0-A

Flanged ball valve with pneumatic actuator; ATEX II 2 G/D; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Without dead space; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 25mm; Length 46mm; Actuator PAS0855; ATEX II 2 G/D c T6

BA-679-50-S0

Flanged ball valve with pneumatic actuator; Flange PN16; Body steel; Seals PTFE/FPM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+60°C; Pressure range 0...16bar; Length EN558 R27; DVGW-gas-approved; Nominal diameter 50mm; Length 150mm; Actuator PAS1005

VB110-H-P0T

Electrical actuator; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 110Nm; Operating time 27s; Flange ISO5211 F07/F10-star 17mm; Voltage 100-240VAC; Protection class IP67; Feedback via potentiometer

BA701-38-S0-0

ball valve with pneumatic actuator; female thread; housing AISI 316Ti; ball AISI 316Ti hard chrome plated; seals PEEK/FKM; with erosion protection ring; for gases; single acting actuator; control pressure 5,5...8bar; medium temperature -40...+200°C; G 3/8"; nominal diameter 10mm; pressure range 0...500bar; length 72mm; actuator PAS1005; free of oil and grease for oxygen
