Ball valves - automatically operated

STASTO Allgemeine Preisliste (EUR)

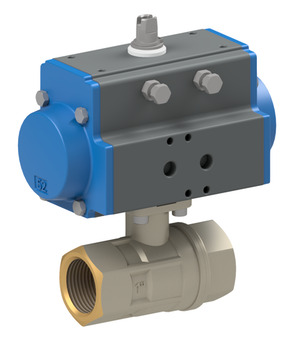

BA125-34-S0-01
Ball valve with pneumatic actuator; Female thread; Body, Ball 1.4401; Seals PTFE/EPDM-Perox; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -45...+150°C; RP 3/4"; Nominal diameter 20mm; Pressure range 0-64bar; Length 72mm; Actuator PAS0755; Incl. Mounting bridge Height 50mm
BA125-34-T0-01
Ball valve with pneumatic actuator; Female thread; Body, Ball 1.4401; Seals PTFE/EPDM-Perox; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -45...+150°C; RP 3/4"; Nominal diameter 20mm; Pressure range 0-64bar; Length 72mm; Actuator PAS0755; Incl. Mounting bridge Height 50mm; Safety position NO
EB0X79
Mounted limit switch box ; IP66-67; Aluminum; Black RAL9005; 2 Micro switches SPDT; Exd; Suitable for Actuators PAD/PAS052-270; Display Yellow/Red; MS48-120M06; CSA-Certified
BA036-10-S0-02
ball valve with pneumatic actuator; for steam; ATEX II 2 G/D; female thread; housing, ball AISI 316; seals PTFE-reinforced/FKM; single acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; pressure range steam 0...14bar; medium temperature -20...+198°C; RP 1"; nominal diameter 25mm; length 92mm; V-ball 30-60°; actuator PAS0635
RI4578
Mounting bracket; FXX-FXX, XX-XX
BA081-10-0R
Ball valve with electrical actuator; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; RP 1"; DN 25mm; Pressure range 0-64bar; Length 90mm; Operating time 9s; Voltage 24...240VAC / 24...135VDC
BAT1-006-BLTV-D001
Ball valve with pneumatic rotary actuator 52 double-acting, brass ball valve, 3-way T-port version with mounted valve ABS51, 24VDC connection RP1"
BA049-15-T0-A
Flanged ball valve with pneumatic actuator; ATEX II 2 G/D c T3; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator; ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 15mm; Length 35mm; Actuator PAS0635; Safety position NO
BA080-114-S0-01
Ball valve with pneumatic actuator; Body, Ball Brass; Seals PTFE/FKM; Single acting actuator; NC; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 11/4"; Nominal diameter 32mm; Pressure range 0-40bar; Length 102mm; Actuator PAS0525; Mounted pilot valve; NAMUR; 24VDC; Mounted limit switch box EB0X01

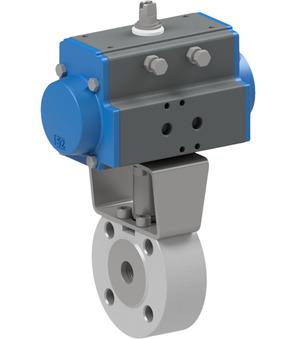

BA137-15-S0-A
Flanged ball valve with pneumatic actuator; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Antistatic design; ATEX; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 15mm; Length 35mm; Actuator PAS0635
BAEB-015-UITV-S0A
Ball valve with pneumatic rotary actuator 52 single-acting, body 1.0619, ball 1.4401, flange PN40 ATEX antistatic connection DN15
BA380-25S-B
High pressure ball valve; 3-way-type; Pressure inlet All sides; Male thread according to ISO 8434-1 (DIN 2353); Body made of zinc plated steel; Ball Hard chrome plated steel; Seals POM/EPDM; L-bore; Pressure range 0...315bar; Maximum switchable differential pressure 0bar; Medium temperature -20...+100°C; Connection 25S/M36X2; Nominal diameter 20mm; Length 109mm; Drilled for mounting an actuator; 4xM6-F05
BA080-20-S0
Ball valve with pneumatic actuator; Body, Ball Brass; Seals PTFE/FKM/EPDM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 2"; Nominal diameter 50mm; Pressure range 0-40bar; Length 138mm; Actuator PAS0635
BA080-20-T0
Ball valve with pneumatic actuator; Body, Ball Brass; Seals PTFE/FKM/EPDM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 2"; Nominal diameter 50mm; Pressure range 0-40bar; Length 138mm; Actuator PAS0635, Safety position NO
BAB1-009-BLTV-T0
Ball valve with pneumatic actuator; Body, Ball Brass; Seals PTFE/FKM/EPDM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 2"; Nominal diameter 50mm; Pressure range 0-40bar; Length 138mm; Actuator PAS0635; Safety position NO
PAS1155-HA
Pneumatic actuator; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 115mm; Flange ISO5211 F07/F10; Torque at 5,5bar 71,1Nm; With FKM o-rings; High temperature design 150°C; Inverse direction of rotation
BA446-15-S0-01
ball valve with pneumatic actuator; housing, ball AISI 316; seals PTFE/EPDM-peroxid; single acting actuator; control pressure 5,5...8bar; medium temperature -30...+150°C; connection butt weld ends according to ISO 1127; nominal diameter 15mm; pressure range 0…100bar; length 92mm; actuator PAS0755
PAS1255-A
Pneumatic actuator; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Inverse direction of rotation; Diameter 125mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 88,1Nm
ER35-0E7-Q22
Electrical actuator; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 35Nm; Operating time 7sec; Flange ISO5211 F05/F07-star 22mm; Voltage 24V AC/DC; Protection class IP65
ER35-0Q7-Q22
Electrical actuator; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 35Nm; Operating time 7sec; Flange ISO5211 F05/F07-star 22mm; Voltage 100-240VAC, 100-350VDC; Protection class IP65
