Ball valves - automatically operated

STASTO Allgemeine Preisliste (EUR)

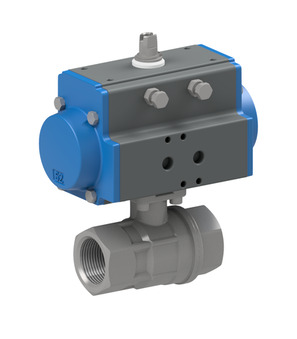

BA081-12-T0
Ball valve with pneumatic actuator; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 1/2"; Nominal diameter 15mm; Pressure range 0-40bar; Length 67mm; Actuator PAS0525; Safety position NO
BA081-12-T0-01
Ball valve with pneumatic actuator; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 1/2"; Nominal diameter 15mm; Pressure range 0-40bar; Length 67mm; Actuator PAS0525; Safety position NO; Pinion turned by 90°
PAD085-U
Pneumatic actuator; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; ATEX II 2 G/D; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 96Nm; NPT/UNC
BA350-12-B
High pressure ball valve; Body 1.4571; Ball 1.4571 Hard chrome plated; Seals PEEK With erosion protection ring/FKM Low temperature equipment; Medium temperature -30...+200°C; Connection G1/2"; Nominal diameter 13mm; Pressure range 0...500bar; Length 83mm; Drilled for mounting an actuator; Mounting flange F03; Square 9mm
VB015-L-12-180
Electric actuator VB015, 12VAC/DC rotation angle 0-180°, flange F03/05, SW 11, rated torque 15Nm
VB015-L-24-180
Electric actuator VB015, 24VAC/DC rotation angle 0-180°, flange F03/05, SW 11, rated torque 15Nm
RI3554-F12/F12
Mounting bracket; F12-F10/F14; 27-30; Changed by F10/F14 Open F12
BA298-25-D0
Flanged ball valve with pneumatic actuator; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+180°C; Pressure range 0...16bar; Nominal diameter 25mm; Length 43mm; Actuator PAD052
BA452-S025-S0
Ball valve with pneumatic actuator; Material PVC; Seals PTFE/FPM; Single acting actuator; Control pressure 5,5...8bar; Solvent cement socket 32mm; Nominal diameter 25mm; Pressure range 0-16bar; Actuator PAS0525-F04
BA678-10-S0
Ball valve with pneumatic actuator; Material PVC; Seals PTFE/FPM; Single acting actuator; Control pressure 5,5...8bar; Female thread G1"; Nominal diameter 25mm; Pressure range 0-16bar; Actuator PAS0525-F04
BAH1-004-UCPE-D0A
Ball valve with pneumatic rotary actuator, 1/2" double-acting, body steel zinc-plated seal POM/EPDM, PN 500, ATEX connection G1/2"
BA168-12-L-AH-01
Ball valve made of stainless steel; With spring return; ATEX II 2 G/D T4; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/FKM; Medium temperature -20...+160°C; G 1/2"; Nominal diameter 15mm; Pressure range 0...100bar; Length 62mm; Free of oil and grease for hydrogen
BA152-10-S0-A-01
Ball valve with pneumatic actuator; Body Brass; Ball Stainless steel AISI 304; Seals PTFE/EPDM/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 1"; Nominal diameter 25mm; Pressure range 0-40bar; Length 90mm; Actuator PAS0525-H; High temperature design; ATEX-design
BA790-14-B-AH
ball valve made of stainless steel; 3-way-type; ATEX II 2 G/D T4; female thread; body, ball AISI 316L; seals PTFE stainless steel reinforced/FKM; medium temperature -20...+200°C; connection 1/4"; DN 10mm; pressure range 0-250bar; length 70mm; free of oil and grease for hydrogen; flange ISO5211 F03/F04; square 9/11mm; ball L
BA790-14-B-AH-3C
ball valve made of stainless steel; 3-way-type; ATEX II 2 G/D T4; female thread; body, ball AISI 316L; seals PTFE stainless steel reinforced/FKM; medium temperature -20...+200°C; connection 1/4"; DN 10mm; pressure range 0-250bar; length 70mm; free of oil and grease for hydrogen; flange ISO5211 F03/F04; square 9/11mm; ball L; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness
BA081-34-T0
Ball valve with pneumatic actuator; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 3/4"; Nominal diameter 20mm; Pressure range 0-40bar; Length 78mm; Actuator PAS0525; Safety position NO
RKH-G3/8-104465G-DFA
Ball valve with cover for actuator F03-SW9 PN 350, thread f/f, 3/8", DN10, body 1.4571 seal PEEK/FKM, for neutral gases
BA078-15-S0
Ball valve with pneumatic actuator; For steam; Butt weld ends; Body Carbon steel A216-WCB; Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator; Control pressure 5,5...8bar; ; Medium temperature -20...+198°C; Pressure range Steam 0...15bar; Nominal diameter 15mm; Length 65mm; Actuator PAS0525
PAS0752-L
Pneumatic actuator; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals Silicone; Temperature range -40...+85°C; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 13,3Nm
BA036-12-D0B
Ball valve with pneumatic actuator; Female thread; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Double acting actuator; Control pressure 5,5...8bar; For steam Medium temperature -20...+198°C; RP 1/2"; Nominal diameter 15mm; Pressure range 0-15bar; Length 65mm; Actuator PAD052
