flanged ball valve with pneumatic actuator series BA048-D-3C; flange PN16; body, ball AISI 304; seals PTFE/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...16bar; nominal diameter 80mm; length 122mm; actuator PAD085; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness

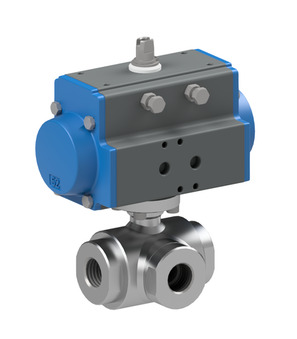

ball valve with pneumatic actuator series BA541, BA542; 3-way-type; sealing on three ports; body AISI 316L polished; ball AISI 316L; seals MPTFE/FKM; single acting actuator; full bore; control pressure 5,5...8bar; medium temperature -20...+170°C; G 1"; nominal diameter 25mm; pressure range 0…64bar; length 102mm; actuator PAS1005; ball T

ball valve with pneumatic actuator series BA541, BA542; 3-way-type; sealing on three ports; body AISI 316L polished; ball AISI 316L; seals MPTFE/FKM; single acting actuator; full bore; control pressure 5,5...8bar; medium temperature -20...+170°C; G 11/4"; nominal diameter 32mm; pressure range 0…64bar; length 118mm; actuator PAS1005; ball T

BA541-10-S0-A
ball valve with pneumatic actuator series BA541, BA542; 3-way-type; sealing on three ports; body AISI 316L polished; ball AISI 316L; seals MPTFE/FKM; single acting actuator; full bore; control pressure 5,5...8bar; medium temperature -20...+170°C; G 1"; nominal diameter 25mm; pressure range 0…64bar; length 102mm; actuator PAS1005; ball T
ABS53
mounted pilot valve series ABS; NAMUR; silencer; standard coil C001; connector size 22mm; 3/2-way-NAMUR-solenoid valve (NM32W1S-PR); actuator PAS052-270
EPC02400-1
mounted coil type EPC; ATEX- II 2G Ex mb IIC T5 Gb / II 2D Ex tb IIIC T95°C IP66 Db; cable length 3m; voltage 24VDC

BA541-114-S0-A
ball valve with pneumatic actuator series BA541-A, BA542-A; ATEX II 2 G/D T4;3-way-type; sealing on three ports; body AISI 316L polished; ball AISI 316L; seals MPTFE/FKM; single acting actuator; full bore; control pressure 5,5...8bar; medium temperature -20...+170°C; G 11/4"; nominal diameter 32mm; pressure range 0…64bar; length 118mm; actuator PAS1005; ball T
ABS53
mounted pilot valve series ABS; NAMUR; silencer; standard coil C001; connector size 22mm; 3/2-way-NAMUR-solenoid valve (NM32W1S-PR); actuator PAS052-270
EPC02400-1
mounted coil type EPC; ATEX- II 2G Ex mb IIC T5 Gb / II 2D Ex tb IIIC T95°C IP66 Db; cable length 3m; voltage 24VDC

BA541-112-S0-A
ball valve with pneumatic actuator; ATEX II 2 G/D T4; 3-way-type; sealing on three ports; body AISI 316L polished; ball AISI 316L; seals MPTFE/FKM; single acting actuator; full bore; control pressure 5,5...8bar; medium temperature -20...+170°C; G 11/2"; nominal diameter 40mm; pressure range 0…64bar; length 134mm; actuator PAS1155; ball T
ABS53
mounted pilot valve series ABS; NAMUR; silencer; standard coil C001; connector size 22mm; 3/2-way-NAMUR-solenoid valve (NM32W1S-PR); actuator PAS052-270
EPC02400-1
mounted coil type EPC; ATEX- II 2G Ex mb IIC T5 Gb / II 2D Ex tb IIIC T95°C IP66 Db; cable length 3m; voltage 24VDC

BA055-50-S0-A
flanged ball valve with pneumatic actuator series BA055, BA056; ATEX II 2 G/D T4; 3-way-type; sealing on three ports; body AISI 316L polished; ball AISI 316L; seals PTFE/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 50mm; length 220mm; pressure range 0...40bar; flange PN40; actuator PAS1155; ball L
ABS53
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 3/2-way-NAMUR-Solenoid valve (NM32W1S-PR); Actuator PAS052-270
EPC02400-1
Mounted coil Type EPC; ATEX- II 2G Ex mb IIC T5 Gb / II 2D Ex tb IIIC T95°C IP66 Db; Cable length 3m; Voltage 24VDC
EB0X05X-T3A3
Mounted limit switch box; IP65; 2 Micro switches; Suitable for Actuators PAD/PAS052-100; Switching capacity 4A/250VAC-1A/24VDC; Switch type Crouzet 831391 - ATEX; Contact material Silber-Nickel; Material of case Plastic; Mounting bridge T3A3

ball valve; 3-way-type; sealing on four ports; full bore; body, ball AISI 316L; seals PTFE/FKM; medium temperature -20...+170°C; Tri-Clamp connection 2" DIN 32676 TAB.2 row A; nominal diameter 50mm; pressure range 0...40bar; ball T; flow path 03; length 182mm; flange ISO5211 F07; square 17mm; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness; FDA-approval for seals

BA221-TCA20-3D0-3E
ball valve with pneumatic actuator; 3-way-type; sealing on four ports; full bore; body, ball AISI 316L; seals PTFE/FKM; medium temperature -20...+170°C; Tri-Clamp connection 2" DIN 32676 TAB.2 REIHE A;nominal diameter 50mm; pressure range 0-40bar; ball T; flow path 03; length 182mm; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness; FDA-approval; PAD075
ABS54-C001-03-C002-31-LV-2
ABS54
mounted pilot valve series ABS; speed control; suitable for pneumatically operated butterfly valve; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD/PAS052-270
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-LV-2
connector; connector size 22mm; with integrated LED-yellow and VDR; voltage 24VAC/DC
EB0X01-01
mounted limit switch box; IP65; 2 micro switches; suitable for actuators PAD/PAS052-270; switching capacity 0,1A/250VAC; switch type Crouzet 83.161.801; contact material alloy of gold; material of case Kunststoff

inspection certificate EN-10204-3.1; for material, pressure, function and tightness; FDA-certification

ball valve with electrical actuator; 3-way-type; sealing on three ports; body AISI 316L polished; ball AISI 316L; seals PTFE/FKM; medium temperature -20...+160°C; nominal diameter 125mm; length 325mm; pressure range 0…16bar; flange PN16; ball T; operating time 27s; voltage 100-240VAC

ball valve with pneumatic actuator series BA459-D0-A-01; ATEX II 2 G/D c T3; flange PN63; full bore; body steel A350-LF2; ball AISI 304; seals PTFE-reinforced with carbographite/Graphoil/HNBR; double acting actuator; control pressure 5,5...8bar; medium temperature -40...+160°C; pressure range 0...63bar; nominal diameter 25mm; length 65mm; actuator PAD063-L

flanged ball valve with pneumatic actuator; flange PN16; body, ball AISI 316; seals PTFE/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...16bar; nominal diameter 25mm; length 46mm; actuator PAS0635; safety position NO

High pressure ball valve; 3-way-type; Sealing on two sides; Pressure inlet just in front; Female thread; Body 1.4571; Ball 1.4571 Hard chrome plated; Seals PEEK/FPM; With erosion protection ring; Pressure range 0...500bar; Medium temperature -20...+200°C; G 3/8"; Nominal diameter 10mm; Length 72mm; Drilled for mounting an actuator; 4xM5-F03; SW9

ball valve with pneumatic actuator series BA459-D0-A; flange PN63; ATEX II 2 G/D; body steel A350-LF2; ball AISI 304; seals PTFE-reinforced with carbographite/Graphoil/HNBR; double acting actuator; control pressure 5,5...8bar; medium temperature -40...+160°C; pressure range 0...63bar; nominal diameter 80mm; length 150mm; actuator PAD115

ball valve with pneumatic actuator series BA459-D0-A-01; flange PN63; ATEX II 2 G/D; body steel A350-LF2; ball AISI 304; seals PTFE-reinforced with carbographite/Graphoil/HNBR; double acting actuator; control pressure 5,5...8bar; medium temperature -40...+160°C; pressure range 0...63bar; nominal diameter 80mm; length 150mm; actuator PAD115-L

ball valve with pneumatic actuator series BA459-D-A; flange PN63; ATEX II 2 G/D; body steel A350-LF2; ball AISI 304; seals PTFE-reinforced with carbographite/Graphoil/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...63bar; nominal diameter 80mm; length 150mm; actuator PAD115

ball valve with pneumatic actuator series BA179-D0-A; ATEX II 2 G/D c T3; fire-safe; TA-Luft; length according to EN558−1R101; flange PN100; full bore; body steel A350-LF2; ball AISI 304; seals PTFE-metal reinforced/Graphoil/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...100bar; nominal diameter 25mm; length 65mm; actuator PAD063

Ball valve with pneumatic actuator Series BA403-D0-A; ATEX II 2 G/D c T3; Fire-safe; TA-Luft; Length According to EN558−1R101; Flange PN100; Full bore; Body steel A350-LF2; Ball 1.4301; Seals PTFE-metal reinforced/HNBR; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -40...+160°C; Pressure range 0...100bar; Nominal diameter 25mm; Length 65mm; Actuator PAD063

ball valve with pneumatic actuator series BA403-D0-A-01; ATEX II 2 G/D c T3; fire-safe; TA-Luft; length according to EN558−1R101; flange PN100; full bore; body steel A350-LF2; ball AISI 304; seals PTFE-metal reinforced/HNBR; double acting actuator; control pressure 5,5...8bar; medium temperature -40...+160°C; pressure range 0...100bar; nominal diameter 25mm; length 65mm; actuator PAD063-L
