Armatures

RI4637

seal kit silicone; suitable for pneumatic actuator PAD, PAS; diameter 125mm

Diameter	Type
125 mm	RI4637

BA080-38-T0-ABS53-C001-03-C002-31-LV-2

BA080-38-T0

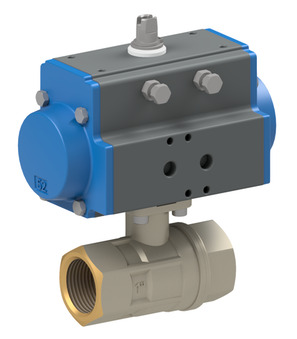

ball valve with pneumatic actuator series BA080; body, ball brass; seals PTFE/FKM/EPDM; single acting actuator; safety position NO control pressure 5,5...8bar; medium temperature -20...+160°C; RP 3/8"; nominal diameter 10mm; pressure range 0-40bar; length 67mm; actuator PAS0525
ABS53
mounted pilot valve series ABS; NAMUR; silencer; standard coil C001; connector size 22mm; 3/2-way-NAMUR-solenoid valve (NM32W1S-PR); actuator PAS052-270
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-LV-2
connector; connector size 22mm; with integrated LED-yellow and VDR; voltage 24VAC/DC

To Series: Ball valve with pneumatic actuator Series BAB1.BL.ABS

Female thread	DN	Length	Function	Pressure range	Voltage	Design	Type
-	-	-	-	-	24VDC / 48V/50-60Hz	With integrated LED-yellow and VDR	BA080-38-T0-ABS53-C001-03-C002-31-LV-2

Ball valve with pneumatic actuator Series BAH1-UCPN-D0

Female thread; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C

To Series: Ball valve with pneumatic actuator Series BAH1-UCPN-D0

Grundversion

Female thread	DN	Length	Pressure range	Voltage	Design	Switch type	Contact material	Material of case	Type	Sequence
G 1/2"	13 mm	85 mm	0...500 bar	-	-	-	-	-	BAH1-004-UCPN-D0	25690000
G 3/4"	20 mm	96 mm	0...400 bar	-	-	-	-	-	BAH1-005-UCPN-D0	25690005
G 1"	24 mm	113 mm	0...350 bar	-	-	-	-	-	BAH1-006-UCPN-D0	25690009
G 1 1/4"	25 mm	121 mm	0...350 bar	-	ATEX	-	-	-	BAH1-007-UCPN-D0	25690012
G 1 1/2"	25 mm	124 mm	0...350 bar	-	ATEX	-	-	-	BAH1-008-UCPN-D0	25690013

Varianten

Female thread	DN	Length	Pressure range	Voltage	Design	Switch type	Contact material	Material of case	Type	Sequence
G 1/2"	13 mm	85 mm	0...500 bar	12VDC / 24V/50-60Hz	Standard	-	-	-	BAH1-004-UCPN-D0-ABS54-C001-04-C002-31-6	25690002
G 1/2"	13 mm	85 mm	0...500 bar	24VDC / 48V/50-60Hz	With integrated LED-yellow and VDR	-	-	-	BAH1-004-UCPN-D0-ABS54-C001-03-C002-31-LV-2	25690003
G 3/4"	20 mm	96 mm	0...400 bar	115V/50-60Hz	Standard	-	-	-	BAH1-005-UCPN-D0-ABS51-C001-23-C002-31-6	25690007

Ball valve with pneumatic actuator Series BAH1-UCPN-S0

Female thread; Body Zinc plated steel; Ball Steel; Seals POM/NBR; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C

To Series: Ball valve with pneumatic actuator Series BAH1-UCPN-S0

Grundversion

Female thread	DN	Length	Pressure range	Type	Sequence
G 1/2"	13 mm	85 mm	0...500 bar	BAH1-004-UCPN-S0	25700001
G 3/4"	20 mm	96 mm	0...400 bar	BA818-34-S0	25700004
G 3/4"	20 mm	96 mm	0...400 bar	BA818-34-T0	25700005
G 3/4"	20 mm	96 mm	0...400 bar	BAH1-005-UCPN-S0	25700006
G 1"	24 mm	113 mm	0...350 bar	BAH1-006-UCPN-S0	25700009

Ball valve with pneumatic actuator Series BAH7-D0

Male thread According to ISO 8434-1 (DIN 2353); Body Zinc plated steel; Ball Steel; Seals POM/NBR; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C

To Series: Ball valve with pneumatic actuator Series BAH7-D0

Grundversion

Connection	DN	Length	Pressure range	Type	Sequence
15L/M22x1,5	13 mm	84 mm	0...500 bar	BAH7-15L-UCPN-D0	25710000
16S/M24x1,5	13 mm	87 mm	0...500 bar	BAH7-16S-UCPN-D0	25710003
18L/M26x1,5	15 mm	83 mm	0...500 bar	BAH7-18L-UCPN-D0	25710006
20S/M30X2	15 mm	90 mm	0...500 bar	BAH7-20S-UCPN-D0	25710009
22L/M30x2	20 mm	102 mm	0...400 bar	BAH7-22L-UCPN-D0	25710012
