BULY-100-DSV-S22

Name: BULY-100-DSV-S22
Brand: STASTO
SKU: BULY-100-DSV-S22
Price: 1049.2 EUR
Availability: InStock

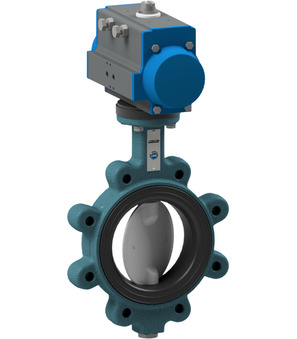

butterfly valve with pneumatic actuator series BULY-S, lug type; length according to EN558−1R20; housing ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+200°C; pressure range 0...10bar; DN 100mm; length 52mm; flange ANSI150; actuator PAS1155

Intrastat No.: 84818085
Country of origin: Italy
Weight: 17.73 Kg
Short Itemnumber: BULY100DSVS22

1.049,20 € 1049.2 EUR 1.049,20 €

DN
- 100 mm
Length
- 52 mm
Flange
- PN10/16
Pressure range
- 0...10 bar
Actuator
- PAS1155

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	100 mm
Length	52 mm
Flange	PN10/16
pressure
Pressure range	0...10 bar
characteristics
Actuator	PAS1155

BULY-100-DSV-B-3C x 1.0

Butterfly valve with bare shaft BULY-100-DSV-B-3C

Butterfly valve with bare shaft Series BUL-DSV-B-3C; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15; Disc 1.4408; Shaft 1.4016; Liner FKM; Medium temperature -10...+200°C; DN 100mm; Length 52mm; Pressure range 0…16bar; Nominal flange pressure ANSI150; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

Add to Cart

PAS1155 x 1.0

Pneumatic actuator PAS1155

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 115mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 71,1Nm

Add to Cart

MFFALFUAL09733 x 1.0
