BULG-150-DSN-S22-01

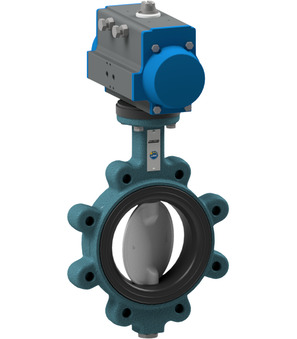

butterfly valve with pneumatic actuator series BULG-S, BULC-S; lug type; length according to EN558−1R20; housing ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+100°C; pressure range 0...10bar; DN 150mm; length 56mm; flange PN10/16; actuator MT45-5EAE12S100
Intrastat No.: 84818085
Country of origin: Italy
Short Itemnumber: BULG150DSNS2201
Country of origin: Italy
Short Itemnumber: BULG150DSNS2201
butterfly valve with pneumatic actuator series BULG-S, BULC-S; lug type; length according to EN558−1R20; housing ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner NBR; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+100°C; pressure range 0...10bar; DN 150mm; length 56mm; flange PN10/16; actuator MT45-5EAE12S100
| dimension | |
|---|---|
| DN | 150 mm |
| Length | 56 mm |
| Flange | PN10/16 |
| pressure | |
| Pressure range | 0...10 bar |
| characteristics | |
| Actuator | PAS1605 |
No spare parts are available for this product.
