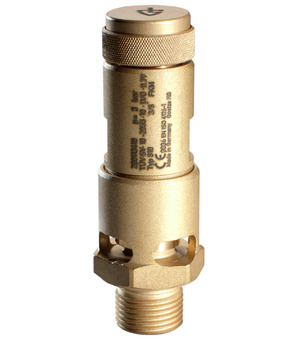

SV01-10-20-14-3E
Safety valve Series SV01; With twist lifting; Body Brass; Compression spring Stainless steel; Application: Compressed air, Non-toxic and non-inflammable gases, which are allowed to flow freely; Medium temperature -20…200°C; Seal FKM; Connection G 1"; DN 20mm; Set pressure 14bar; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness
Intrastat No.: 84814090
Country of origin: Germany
Short Itemnumber: SV011020143E
Country of origin: Germany
Short Itemnumber: SV011020143E
safety valve series SV01; with twist lifting; body brass; compression spring stainless steel; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; medium temperature -20…200°C; seal PTFE; connection G 1"; DN 20mm; set pressure 24bar
| dimension | |
|---|---|
| Male thread | G 1" |
| DN | 20 mm |
| materials | |
| Seal | PTFE |
| characteristics | |
| Set pressure | 24 bar |
No spare parts are available for this product.
