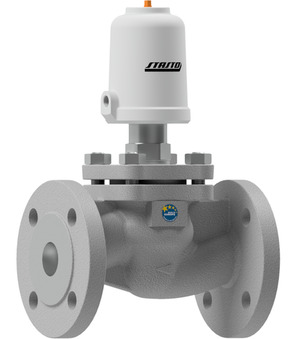

Pneumatically operated seat valve SE25-15-SE51-01
pneumatically operated seat valve series SE25-SE; NC; housing stainless steel AISI 316; seal EPDM; flange PN40; for gaseous media; closing with flow; medium temperature -30...+170°C; DN 15mm; operating pressure 0...40bar; control pressure 5…10bar; diameter actuator 50mm; free of PTFE according to drawing R0116
Intrastat No.: 84818079
Country of origin: Germany
Short Itemnumber: SE2515SE5101
Country of origin: Germany
Short Itemnumber: SE2515SE5101
pneumatically operated seat valve series SE25-SE; NC; housing stainless steel AISI 316; seal EPDM; flange PN40; for gaseous media; closing with flow; medium temperature -30...+170°C; DN 15mm; operating pressure 0...40bar; control pressure 5…10bar; diameter actuator 50mm; free of PTFE according to drawing R0116
| dimension | |
|---|---|
| DN | 15 mm |
| Flange | PN40 |
| Diameter Actuator | 50 mm |
| design | |
| Design | ATEX |
| pressure | |
| Operating pressure | 0...40 bar |
| Control pressure | 5...10 bar |
No spare parts are available for this product.
