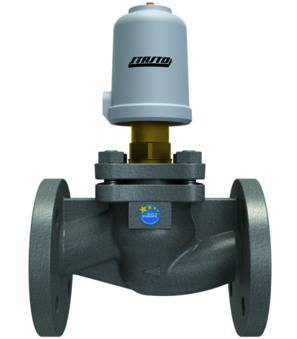

Pneumatically operated seat valve 50-0-16-3,5-10-80
pneumatically operated seat valve series SE09-GT; NC; body cast iron EN-GJL-250; seal PTFE; flange PN16; pressure compensated cone for high pressure; medium temperature -10...+170°C; DN 50mm; operating pressure 0-16bar; control pressure 3,5-10bar; diameter actuator 80mm
Weight: 0.61 Kg
Short Itemnumber: SE0950GT81
pneumatically operated seat valve series SE09-GT; NC; body cast iron EN-GJL-250; seal PTFE; flange PN16; pressure compensated cone for high pressure; medium temperature -10...+170°C; DN 50mm; operating pressure 0-16bar; control pressure 3,5-10bar; diameter actuator 80mm
This product is no longer available.
| dimension | |
|---|---|
| DN | 50 mm |
| Diameter Actuator | 80 mm |
| pressure | |
| Operating pressure | 0...16 bar |
| Control pressure | 3,5...10 bar |
| characteristics | |
| Medium temperature | -10...+170 °C |
No spare parts are available for this product.
