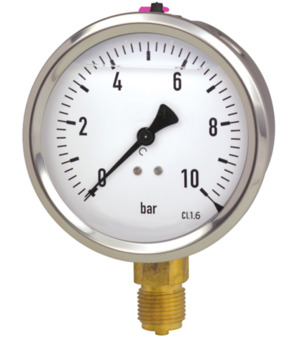

MA009-63B-V
Glycerin manometer Series MA009-B; Bourdon tube manometer; Body Stainless steel; Front ring Stainless steel Bright; Measuring unit, Motion work Copper based alloy; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection Below; Class 1,6; G 1/4"; Diameter 63mm; Indicating range -1/0; Unit bar
Intrastat No.: 90262040
Country of origin: Poland
Weight: 0.201 Kg
Short Itemnumber: MA00963BV
Country of origin: Poland
Weight: 0.201 Kg
Short Itemnumber: MA00963BV
glycerin manometer series MA009-B; bourdon tube manometer; body stainless steel; front ring stainless steel bright; measuring unit, motion work copper based alloy; front glass acryl; ambient temperature -20...+60°C; medium temperature max. +60°C; connection below; class 1,6; G 1/4"; diameter 63mm; indicating range 0...6; unit bar/psi
| dimension | |
|---|---|
| Diameter | 63 mm |
| Connection | G 1/4" |
| characteristics | |
| Indicating range | -1...0 |
| Unit | bar |
No spare parts are available for this product.
