STASTO Allgemeine Preisliste (EUR)
Knife gate valve with double acting actuator Series L1N Store
  1. Products
  2. Armatures
  3. Valves, butterfly valves and gate valves - automatically operated
  4. Other materiales - A05
  5. Knife gate valve with double acting actuator Series L1N

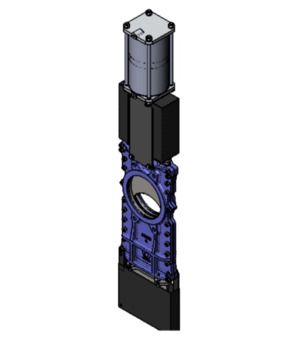

  6. L1N4I1-B-150-PI01-MSU03/2
A1V2H2-5-250-PIB-MSU03/2

A1V2H2-5-250-PIB-MSU03/2

L1N4I1-B-150-PI01
Knife gate valve with double-acting, oversized pneumatic actuator Series L1N4; Wafer type; Body 1.4408; Gate 1.4401 Hard chrome plated; Metal sealing; Incl. Abrasion protection; Packing PTFE-Synthetic; Nominal flange pressure PN10/16; Sealed in both directions; Control pressure 5,5...8bar; Medium temperature -5...+90°C; DN 150mm; Length 60mm; Pressure range 0...10bar; prepared for 2 limit switches with thread M18x1; Reinforced seat retaining rings
MSU03/2
electrical position indication series MSU; suitable for knife gate valve; mounted inductive proximity switch, 10...30VDC (2 pieces); cable length 2m

Intrastat No.: 84818061
Country of origin: Spain
Short Itemnumber: L1N4I1B150PI01MSU032
https://www.stasto.eu/web/image/product.template/249828/image_1920?unique=a67d802

A1V2H2-5-250-PIB
knife gate valve with handwheel series A1V-PIB; wafer type; rising stem; body body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; medium temperature -5...+90°C; prepared for 2 inductive switches MSU03, MSU04, MSU05; DN 250mm; length 70mm; pressure range 0...6bar
MSU03/2
electrical position indication series MSU; suitable for knife gate valve; mounted inductive proximity switch, 10...30VDC (2 pieces); cable length 2m

5.537,80 € 5537.8 EUR 5.537,80 €

price on request

  • Connection
  • DN
  • Length
  • Cable length
  • Function
  • Actuation
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Switch design
  • Coil
  • Flow rate
  • Medium temperature
  • Brand
  • Suitable silencer

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 150 mm
Length 60 mm
Cable length 2m
function
Function NO PNP
Electrical key figures
Voltage 10-30VDC
pressure
Pressure range 0...10 bar
characteristics
Switch design Inductive proximity switch (2 Pieces)
Medium temperature -5...+90 °C
Others
Brand STASTO

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Electrical position indication Series MSU_EN.pdf
MSU03/2
Download
Declarations of Conformity
1
Declaration of conformity_Electrical position indication Series MSU_EN.pdf
MSU03/2
Download

ZIP
Datové listy
1
Datový list_elektrické ukazatele polohy série MSU_CS.pdf
MSU03/2
Download
Prohlášení o shodě
1
Prohlášení o shodě_elektrické ukazatele polohy série MSU_CS.pdf
MSU03/2
Download

ZIP
Data Sheets
1
Datablad_Elektrisk stillingsindikator Serie MSU_DA_DK.pdf
MSU03/2
Download

ZIP
Datenblätter
1
Datenblatt_elektrische Stellungsanzeige Serie MSU_DE.pdf
MSU03/2
Download
Konformitätserklärungen
1
Konformitätserklärung_elektrische Stellungsanzeige Serie MSU_DE.pdf
MSU03/2
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Ηλεκτρική ένδειξη θέσης Σειρά MSU_EL_GR.pdf
MSU03/2
Download

ZIP
CAD / 3D
1
Ficha técnica_Indicador eléctrico de posición Serie MSU_ES.pdf
MSU03/2
Download

ZIP
Data Sheets
1
Tietolehti_Sähköinen asennonosoitin Sarja MSU_FI.pdf
MSU03/2
Download

ZIP
Data Sheets
1
Fiche technique_Indicateur de position électrique Série MSU_FR.pdf
MSU03/2
Download

ZIP
Data Sheets
1
Podatkovni list_Električni pokazivač položaja Serija MSU_HR.pdf
MSU03/2
Download

ZIP
Adatlapok
1
Adatlap_elektromos állapotjelző sorozat MSU_HU.pdf
MSU03/2
Download
Megfelelőségi nyilatkozatok
1
Megfelelőségi nyilatkozat_elektromos állapotjelző sorozat MSU_HU.pdf
MSU03/2
Download

ZIP
Data Sheets
1
Scheda tecnica_Indicatore di posizione elettrico Serie MSU_IT.pdf
MSU03/2
Download

ZIP
Data Sheets
1
Datablad_Elektrisk stillingsindikator Serie MSU_NB_NO.pdf
MSU03/2
Download

ZIP
Data Sheets
1
Datasheet_Elektrische standaanwijzer Serie MSU_NL.pdf
MSU03/2
Download

ZIP
Karty katalogowe
1
Arkusz danych_elektryczny wskaźnik położenia Seria MSU_PL.pdf
MSU03/2
Download
Deklaracje zgodności
1
Deklaracja zgodności_elektryczny wskaźnik położenia Seria MSU_PL.pdf
MSU03/2
Download

ZIP
Data Sheets
1
Fișă de date_Indicator electric de poziție serie MSU_RO.pdf
MSU03/2
Download

ZIP
Podatkovni listi
1
Podatkovni list_električni kazalnik pozicije serija MSU_SL.pdf
MSU03/2
Download
Izjave o skladnosti
1
Izjava o skladnosti_električni kazalnik pozicije serija MSU_SL.pdf
MSU03/2
Download

ZIP
Data Sheets
1
Tehnički list_elektro indikacija položaja serije MSU_SRLATIN.pdf
MSU03/2
Download
Declarations of Conformity
1
Deklaracija o usklađenosti_elektro indikacija položaja serije MSU_SRLATIN.pdf
MSU03/2
Download

ZIP
Data Sheets
1
Datablad_Elektrisk lägesindikering Serie MSU_SV.pdf
MSU03/2
Download
L1N4I1-B-150-PI01
L1N4I1-B-150-PI01 x 1.0 Pcs
L1N4I1-B-150-PI01
Knife gate valve with double-acting, oversized pneumatic actuator Series L1N4; Wafer type; Body 1.4408; Gate 1.4401 Hard chrome plated; Metal sealing; Incl. Abrasion protection; Packing PTFE-Synthetic; Nominal flange pressure PN10/16; Sealed in both directions; Control pressure 5,5...8bar; Medium temperature -5...+90°C; DN 150mm; Length 60mm; Pressure range 0...10bar; prepared for 2 limit switches with thread M18x1; Reinforced seat retaining rings
Electrical position indication MSU03/2
MSU03/2 x 2.0 Pcs
Electrical position indication MSU03/2
electrical position indication series MSU; suitable for knife gate valve; mounted inductive proximity switch, 10...30VDC (2 pieces); cable length 2m
