Way-valves - electrically / pneumatically

KIT-PV-110/50

Pilot valve to series VEM; including coil and device socket; voltage 115V/50-60Hz

KIT-PV-220/50

Pilot valve to series VEM; including coil and device socket; voltage 220-240V/50-60Hz-110VDC

KIT-PV-24/50

Pilot valve to Series VEM; Including coil and device socket; Voltage 24V/50-60HZ

KIT-PV-24/DC

Pilot valve to series VEM; including coil and device socket; voltage 24VDC-48V/50-60HZ

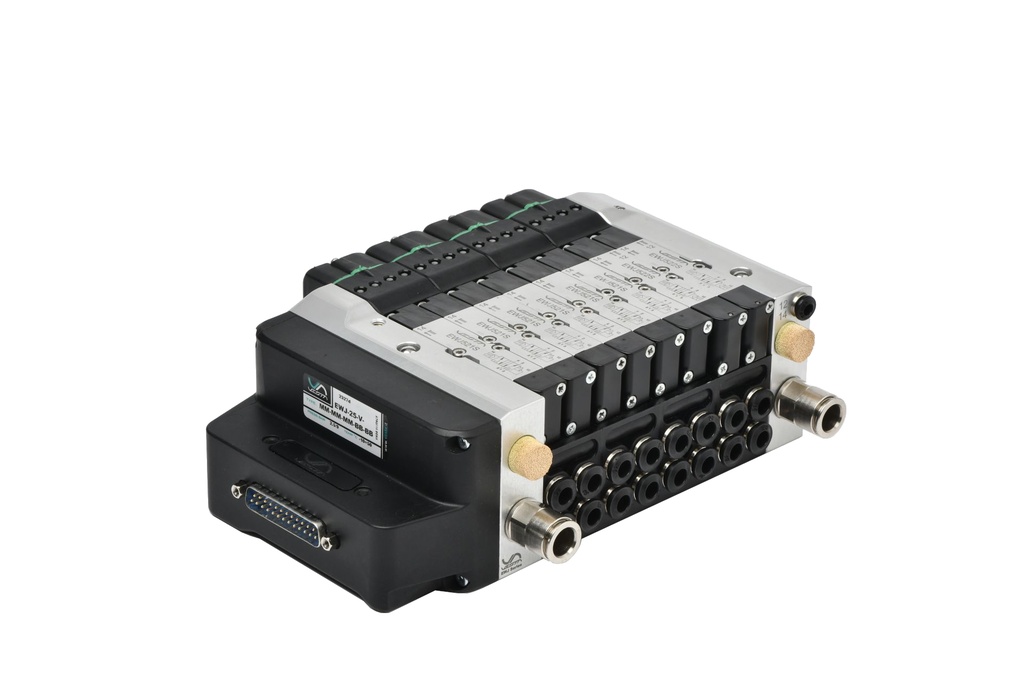

PS157 valve island; 12-fold; 6x double 3/2-way valve electrical/spring; NC; 5x 5/2-way valve electrical/spring; 1x free space for solenoid valve; flow rate 500 Nl/min; voltage 24VDC; pressure range 3...7bar; pressure connection 1/4"; working ports: 6mm; electrical connection SUB-D-25; protection class IP65

MH-311-012

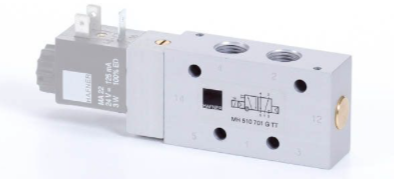

3/2-way valve, directly operated; actuation electrical/spring; body aluminum; pressure range -0,9...10bar connector size 22mm; connection M5; function NC; type of coil MA 22; with manual emergency override

PS101-18-C-01

3/2-way valve; pilot-operated; pressure range 2,5...9bar; actuation electrical/spring; external control air connection; type of coil CS; connector size 16mm; connection 1/8"; nominal diameter 6mm; function NC; flow rate 1300Nl/min; suitable silencer all

PS128-14N-C-02

3/2-way valve Series PS128; According to NAMUR; Pilot-operated; Actuation Electrical/internal control air; Body Aluminium; High temperature design; Temperature range -10...+80°C; Standard coil MA22 D; Connector size 22mm; Connection 1/4"NPT; Function NC; Pressure range 2...10bar; Flow rate 1250Nl/min

PS136-I3-PS-C001-03-C002-31-LV-2

PS136-I3-PS
5/2-way valve series PS136; monostable; according to ISO 5599/1; pilot-operated; pressure range 3...10bar; actuation electrical/internal control air; standard coil C001; connector size 22mm; size ISO3; flow rate 5500Nl/min
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-LV-2
connector; connector size 22mm; with integrated LED-yellow and VDR; voltage 24VAC/DC

PS157-6-1446-DD-DD-DD-ET-03

PS157 valve island; 6-fold; 6x double 3/2-way valve electrical/spring; NC; flow rate 500 Nl/min; voltage 24VDC; pressure range 3...7bar; pressure connection 1/4"; working ports: 6mm; electrical connection Ethernet IP protection class IP65

PS157-12-1446-DD-DD-DV-BV-BB-BV-ET-03

PS157 valve island; 12-fold; 5 x double 3/2-way valve electrical/spring; NC; 4 x 5/2-way valve electrical/spring; NC; 2 x free space for solenoid valve; flow rate 500 Nl/min; voltage 24VDC; pressure range 3...7bar; pressure connection 1/4"; working ports: 6mm; electrical connection Ethernet IP protection class IP65

NM52W1S-SR-C001-22-C002-31-6

NM52W1S-SR
5/2-way valve; According to NAMUR; Pilot-operated; Actuation Electrical/spring; Standard coil C001; Connector size 22mm; Connection 1/4"; Nominal diameter 8mm; Pressure range 2,5-10bar; Flow rate 1080Nl/min
C001-22
Coil Type C001; Connector size 22mm; Voltage 230V/50-60Hz
C002-31-6
Connector; Connector size 22mm; Standard; Voltage 0-250VAC/DC

PS128-14-C-03

3/2-way valve; According to NAMUR; Pilot-operated; Actuation Electrical/internal control air; Standard coil MA22; Connector size 22mm; Connection 1/4"; Function NC; Materials 100% REACH-Conform

PS106-12-0-01

3/2-way valve Series PS106.; Pilot-operated; Actuation Electrical/spring; Standard coil C001; Connector size 22mm; Connection 1/2"; Nominal diameter 15mm; Function NO; Pressure range 2,5-10bar; Flow rate 3500Nl/min; Seals FKM; Ambient temperature -10...+80°C

PS107-12-01

5/2-way valve Series PS107.; Pilot-operated; Actuation Electrical/spring; Standard coil C001; Connector size 22mm; Connection 1/2"; Nominal diameter 15mm; Pressure range 2,5...10bar; Flow rate 3500Nl/min; Seals FKM; Ambient temperature -10...+80°C

PS109-12-0-01

5/3-way valve Series E5.; Pilot-operated; Pressure range 3...10bar; Actuation Electrical/electrical; Standard coil C001; Connector size 22mm; Connection 1/2"; Nominal diameter 15mm; Central position Opened; Flow rate 3000Nl/min Seals FKM; Ambient temperature -10...+80°C

PS109-12-C-01

5/3-way valve Series PS109; Pilot-operated; Pressure range 3...10bar; Actuation Electrical/electrical; Standard coil C001; Connector size 22mm; Connection 1/2"; Nominal diameter 15mm; Central position Closed; Flow rate 3000Nl/min Seals FKM; Ambient temperature -10...+80°C
