coil type MH52 Ex d; voltage 230VAC; temperature range -40...+50°C; IP67; cable inlet M20x1,5; Pilot head stainless steel; ATEX II 2G Ex db IIC T6 Gb / II 2D Ex tb IIIC T80°C Db

coil type MH52 Ex d; voltage 230VAC; temperature range -40...+50°C; IP67; cable inlet 1/2"NPT; Pilot head stainless steel; ATEX II 2G Ex db IIC T6 Gb / II 2D Ex tb IIIC T80°C Db

E52W1SM14-AB-AS-VV
5/2-way valve; pilot-operated; actuation electrical/spring; type of coil C001; connector size 22mm; connection 1/4"; nominal diameter 8mm; pressure range 2,5-10bar; flow rate 1080Nl/min; spacer and cover aluminum; seals FKM; ambient temperature -10...+100°C
C001-22
coil type C001; connector size 22mm; voltage 230V/50-60Hz
C002-31-LVCV20-1
connector; connector size 22mm; with integrated LED-yellow, VDR and PVC-cable (2 m); voltage 230VAC/DC

3/2-way solenoid valve unit; 21-fold; connection: 1/8"; nominal diameter: 1,2 mm; actuation: electric/spring; NC; 24VDC; fully assembled and tested

MS-2P-052100-IFM001
mounted inductive dual proximity switch; 10...36VDC; 2 NO contact PNP; with M12 connection; IFM-IN5225; suitable for actuators PAD/PAS052-100
PAD075
pneumatic actuator series PAD; ATEX II 2 G/D c T6; double acting; rotation angle 90°; according to ISO 5211/NAMUR; operating pressure range max. 8bar; diameter 75mm; flange ISO5211 F05/F07; female square 17mm; torque at 5,5bar 66Nm
E70143
Cable plug with cable; M12x1 connection; connector size 22mm; form B; Cable length 0,3m
ABS54
mounted pilot valve series ABS; speed control; suitable for pneumatically operated butterfly valve; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD/PAS052-270
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-6
connector; connector size 22mm; Standard; voltage 0-250VAC/DC

distance plate; suitable for NAMUR 1/4"; material aluminum; height 8mm

3/2-way valve; according to NAMUR; pilot-operated; actuation electrical/internal control air; standard coil MA22 EEX M; connection G 1/4"; function NC; body Aluminium; temperature range -10...+50°C; pressure range 2-10bar; flow rate 1250Nl/min; ATEX Ex II 2G Ex h IIC T6 Gb / Ex II 2D Ex h IIIC T80°C Db

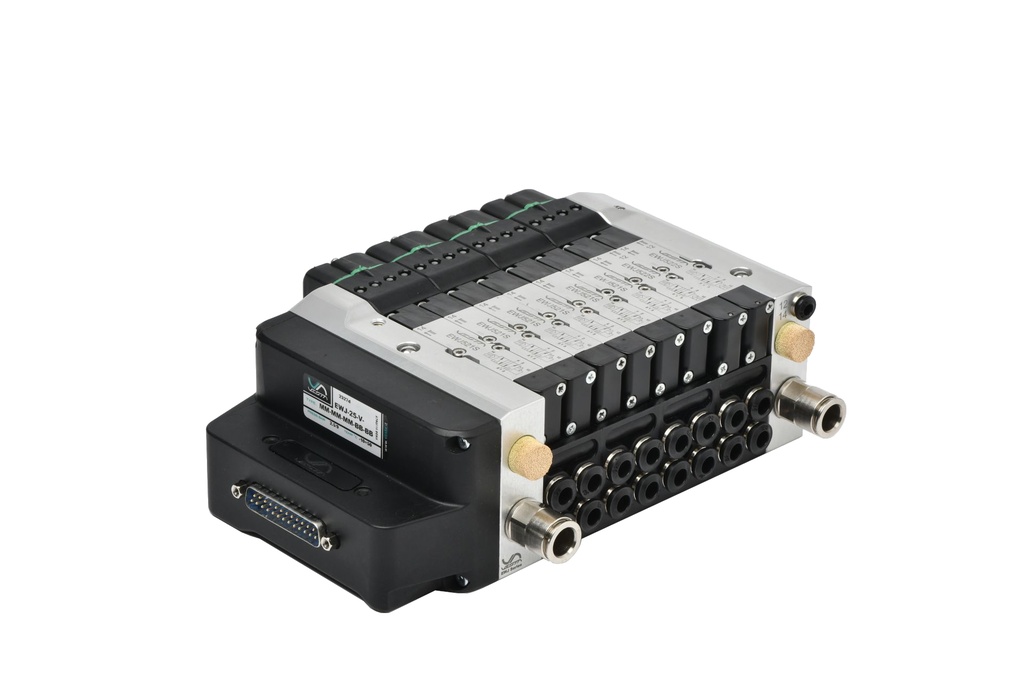

PS157 valve island; 4-fold; 3x Double 3/2-way valve electrical/spring; 1x 5/2-way valve electrical/spring; NC; flow rate 500 Nl/min; voltage 24VDC; pressure range 3...7bar; pressure connection 1/4"; working ports: 6mm; electrical connection SUB-D-25; protection class IP65

spare spring filter diaphragm valve VEM/VNP-214/216; stainless steel

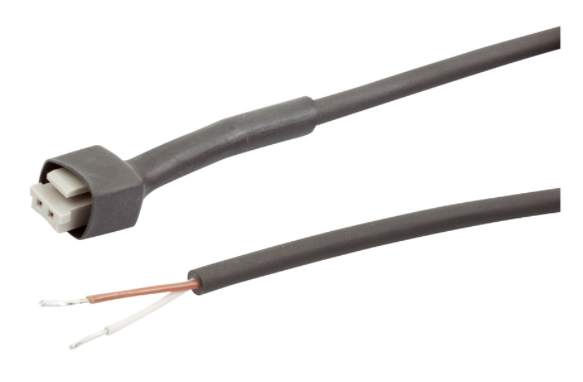

Connector plug; for solenoid valve; cable 3m; type Mini/Compact

3/2-way valve; according to NAMUR; pilot-operated; actuation electrical/spring; standard coil EPC; connection 1/4"; nominal diameter 8mm; pressure range 2,5-10bar; flow rate 1080Nl/min; ATEX II 2G Ex mb IIC T5 Gb / II 2D Ex tb IIIC T5 IP65 Db

PS157 valve island; 8-fold; NC; 6x 5/2-way valve; 2 x free places; flow rate 500 Nl/min; voltage 24VDC; pressure range 3...7bar; pressure connection 1/4"; working ports: 6mm; electrical connection SUB-D-25; protection class IP65

4/2-way spool valve with bistable special manual override; pilot-operated; 2,5-8bar; materials: brass; aluminum; low temperature design -18...+50°C; connector size 16mm; voltage 24VDC; flanged type; coil Industry Form C; power consumption 2W

5/2-way valve; pilot-operated; actuation electrical/spring; standard coil MA22; connector size 22mm; connection 1/4"; nominal diameter 8mm; pressure range 2-10bar; flow rate 1250Nl/min; manual emergency override metal MF

PS132-12-01
5/2-way valve; Pilot-operated; Actuation Electrical/spring; Standard coil MA22; Connector size 22mm; Connection 1/4"; Nominal diameter 8mm; Pressure range 2-10bar; Flow rate 1250Nl/min; Manual emergency override Metal MF
MA22-24VDC
Coil; Connector size 22mm; Voltage 24VDC
C002-31-6
Connector; Connector size 22mm; Standard; Voltage 0-250VAC/DC

PS157 valve island; 20-fold; 19x Double 5/2-way valve electrical/spring; NC; 1x free space for solenoid valve; flow rate 500 Nl/min; voltage 24VDC; pressure range 3...7bar; pressure connection 1/4"; working ports: 6mm; electrical connection SUB-D-25; protection class IP65

PS157 valve island; 16-fold; 15x Double 5/2-way valve electrical/spring; NC; 1x free space for solenoid valve; flow rate 500 Nl/min; voltage 24VDC; pressure range 3...7bar; pressure connection 1/4"; working ports: 6mm; electrical connection SUB-D-25; protection class IP65

PS157 valve island; 8-fold; 8x Double 5/2-way valve electrical/spring; NC; flow rate 500 Nl/min; voltage 24VDC; pressure range 3...7bar; pressure connection 1/4"; working ports: 6mm; electrical connection SUB-D-25; protection class IP65

PS157 valve island; 4-fold; 11x 5/3-way valve electrical/electrical central position closed; 3x free space for electrical/electrical valve flow rate 500 Nl/min; voltage 24VDC; pressure range 3...7bar; pressure connection 1/4"; working ports: 6mm; electrical connection SUB-D-25; protection class IP65

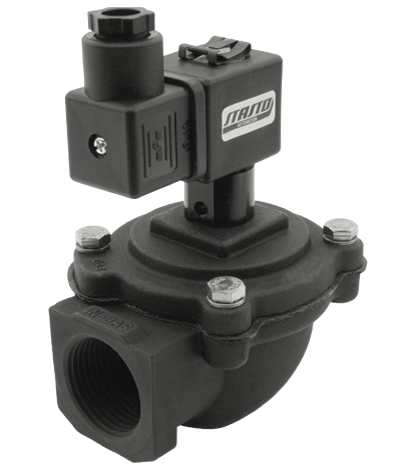

2/2-way filter diaphragm valve; NC; actuation electrical/internal control air; application: cleaning of filter systems; connection G1"; nominal diameter 30mm; pressure range 0,5-7,5bar; Tension 24VDC; number of diaphragms 1
