Bourdon tube manometer; Body Stainless steel; Front ring Stainless steel Bright; Measuring unit, Motion work Copper based alloy; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection 1/4" Rear; Class 1,6

2-fold Spiral hose Series PU-02W-SP

Axial; Material Polyurethane; Multiplier for operating pressure 30°C = 0,86 / 60°C = 0,62; Without fittings; Temperature range -35...60°C; Colour Black/Blue

Zinc plated steel

1-ear hose clip Series HC01

Stainless steel AISI 304

1-ear hose clip Series HC01

Fixed pressure set; Inlet pressure Max. 12bar; Male thread; Flow at 12bar/Δp=0,5bar 350 Nl/min

Pressure regulators for blow guns Series PR28

Manometer adapter, Extension; Material Brass

Manometer adapter, Extension

AF27

Impact absorber for manometers

Connection spigot; Pressure tap horizontal only; Clamping sleeve According to DIN 16283, AF27; Operating pressure max. 100bar at 120°C at siphon inlet, max. 80bar at 300°C at siphon inlet, max. 63bar at 400°C at siphon inlet

Siphon in U-shape

Welding connection; Pressure tap horizontal only; Clamping sleeve According to DIN 16283, AF27; Operating pressure max. 100bar at 120°C at siphon inlet, max. 80bar at 300°C at siphon inlet, max. 63bar at 400°C at siphon inlet

Siphon in U-shape

Connection spigot; Pressure tap vertical only; Clamping sleeve According to DIN 16283, AF27; Operating pressure max. 100bar at 120°C at siphon inlet, max. 80bar at 300°C at siphon inlet, max. 63bar at 400°C at siphon inlet

Siphon in ring-shape

Welding connection; Pressure tap vertical only; Clamping sleeve According to DIN 16283, AF27; Operating pressure max. 100bar at 120°C at siphon inlet, max. 80bar at 300°C at siphon inlet, max. 63bar at 400°C at siphon inlet

Siphon in ring-shape

According to DIN 16281; For wall mounting of stop valves for manometers

Holder for measuring instruments

According to DIN 16281

Adapter for holder of measuring instruments

Female thread/Female thread; Temperature Max. 50°C; Drain hole

Female thread/Spigot; Temperature Max. 50°C; Drain hole

Female thread/Swivel sleeve; Temperature Max. 50°C; Drain hole

Spigot/Swivel sleeve; Temperature Max. 50°C; Drain hole

Spigot/Clamping sleeve; Temperature Max. 50°C; Drain hole

Manometer push button valve

Pressure measuring at pressed button only, after releasing valve closes automatically; Manometer is depressurized in normal position; Pressure range Max. 25bar, DVGW-certification Max. 4bar

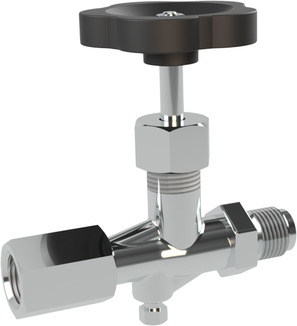

According to DIN 16270; Spigot/Clamping sleeve; Seal PTFE

According to DIN 16270; Spigot/Swivel sleeve, Shank for holder of measuring instruments; Seal PTFE

According to DIN 16271; Spigot/Tension sleeve with test spigot M20x1,5; Seal PTFE

According to DIN 16271; Spigot/Swivel sleeve, Shaft for holder of measuring instruments with test spigot M20x1,5; Seal PTFE

According to DIN 16271; Spigot/Tension sleeve with test flange 60x25x10; Seal PTFE

Standard air-nozzle; Operating pressure 2…8bar; Material Anodized aluminum; Continous air control by hand lever

Blow gun Series BG01R

Silent air-nozzle; Operating pressure 2…8bar; Material Anodized aluminum; Continous air control by hand lever

Nozzle with protection shield; Operating pressure 2…8bar; Material Anodized aluminum; Continous air control by hand lever

Stream nozzle (Venturi nozzle) Operating pressure 2…8bar; Material Anodized aluminum; Continous air control by hand lever

Extension air-nozzle Curved

Jet hole 3mm; Suitable for Pistols Series S-26, S-23

Jet hole 3mm; Suitable for Pistols Series S-26, S-23

Extension air-nozzle Straight

Other materiales - P06

Safety and silent air nozzle; Operating pressure 2…8bar; Material Anodized aluminum; Continous air control by hand lever

Manometer - digital type Series MA054

Material Aluminum painted black; 3 Inlets with femal thread; Outlets Female thread; One-sided

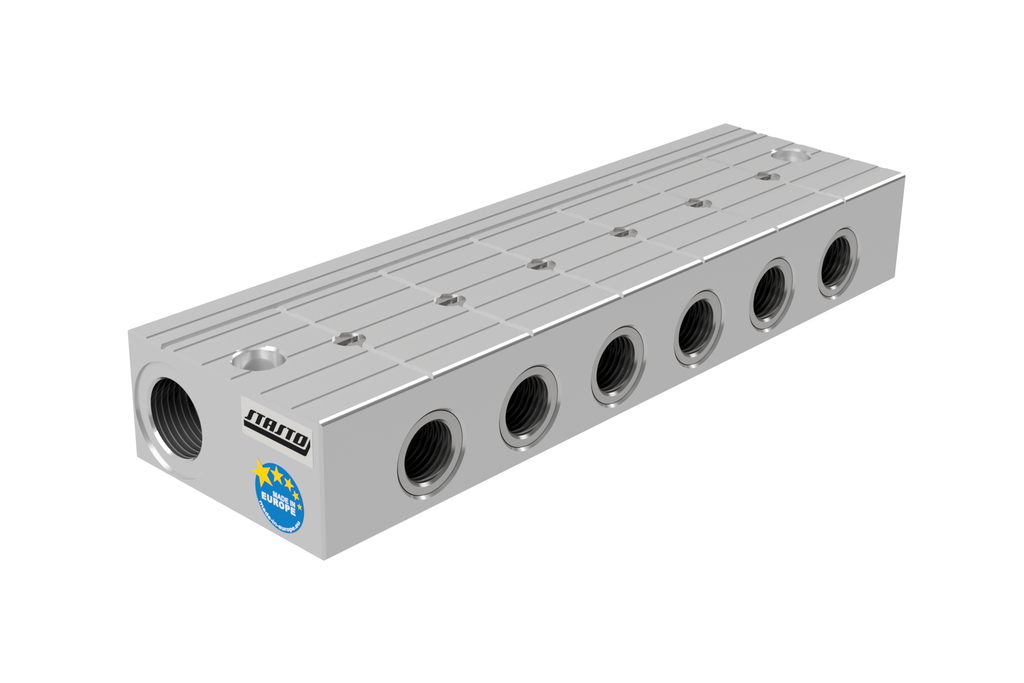

Distributor Series DI19

Ø 80mm; Accuracy 0,5% of full pressure range; Connection 1/4" Below; Capturing pressure peaks; Battery life time cycle 4000 Hours; Seal NBR

Body Stainless steel; Measuring unit, Motion work Stainless steel 1.4571; Front glass Flat instrument glass; Ambient temperature -20...+60°C; Medium temperature Max. +100°C; Connection Below; Class 1,6

Capsule manometer Series MA046-B

Capsule manometer Series MA046-R

Body Stainless steel 1.4301; Measuring unit 1.4404; Front glass Flat instrument glass; Ambient temperature -40...+60°C; Medium temperature Max. +200°C; Connection Rear

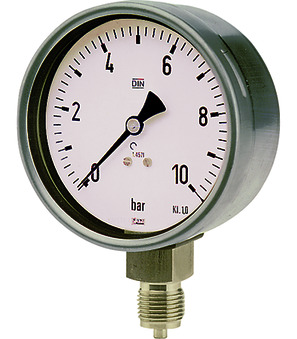

Bourdon tube manometer Series MA029-R

Body Stainless steel 1.4301; Measuring unit 1.4404; Front glass Flat instrument glass; Ambient temperature -40...+60°C; Medium temperature Max. +200°C; Connection Below

Bourdon tube manometer Series MA029-B

Body 1.4301; Measuring unit, Motion work Brass; Front glass Mineral glass; Front ring; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection Below; Class 1,0

Bourdon tube manometer Series MA050

Body 1.4301; Measuring unit, Motion work Brass; Front glass Mineral glass; Front ring; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection Rear; Class 1,0; Diameter 100mm; Indicating range 0-400; Unit bar; Connection 1/2"

Bourdon tube manometer Series MA050

For wall mounting of stop valves for manometers

Holder for measuring instruments According to DIN 16281 Series HMI

According to DIN 16281

Adapter for holder of measuring instruments Series A-HMI

Body Sheet steel; Measuring unit, Motion work Copper based alloy; Front glass Glass; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection Below; Class 1,6

Body Sheet steel; Measuring unit, Motion work Copper based alloy; Front glass Glass; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection Rear; Class 1,6

Bourdon tube manometer; Body Stainless steel 1.4301; Measuring unit 1.4404; Front glass Flat instrument glass; Ambient temperature -20...+60°C; Medium temperature Max. +100°C; Connection Rear

Glycerin manometer Series MA030-R

Bourdon tube manometer; Body Stainless steel 1.4301; Measuring unit 1.4404; Front glass Flat instrument glass; Ambient temperature -20...+60°C; Medium temperature Max. +100°C; Connection Below

Glycerin manometer Series MA030-B

Bourdon tube manometer; Body Stainless steel; Front ring Stainless steel Bright; Measuring unit, Motion work Copper based alloy; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection rear

Glycerin manometer Series MA038-R

Body Stainless steel AISI 304; Measuring unit, Motion work Copper based alloy; Front glass Mineral glass; Connection Below; Ambient temperature -40...+60°C; Medium temperature Max. +60°C; Class 1,0

Bourdon tube manometer Series MA036-B

Measuring unit, Motion work Copper based alloy; Front glass Mineral glass; Connection Rear; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Class 1,0

Bourdon tube manometer Series MA036-R

Zinc plated steel Bandwidth 9mm

Jaw clamp Series SBS

Material: 1.4016; Screw Zinc plated steel

Hinge bolt clamp Series SSB-ES

Body Sheet steel; Measuring unit, Motion work Copper based alloy; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection Below

Bourdon tube manometer Series MA081

Safety version EN837-1 S3; Break-proofed separating plate; Blow-out back; Body Stainless steel Measuring unit, Motion work Stainless steel 1.4571; Front glass Laminated safety glass; Ambient temperature -40...+60°C; Medium temperature Max. +200°C; Connection Below

Bourdon tube manometer Series MA073

Body Stainless steel; Measuring unit, Motion work Brass; Front glass Mineral glass; Ambient temperature -20...+60°C; Medium temperature Max. +100°C; Connection 1/2" Below; Class 1,6

Capsule manometer Series MA031

Material: 1.4301; Screw Zinc plated steel

Hinge bolt clamp Series SSB-ES-2A

Bourdon tube manometer; Electrical indicator (Magnetic spring contact); Body Stainless steel 1.4301; Measuring unit, Motion work Copper based alloy; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Magnetic spring contact for open/close of electric circuits depending on pointer position; Connection 1/2" Below; Class 1,0

Bourdon tube manometer; Measuring unit, Motion work Copper based alloy; Front glass Mineral glass; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Class 1,0; Connection below

Glycerin manometer Series MA038-B

Material 1.4301; Operating pressure Max. 16Bar

Distributor Series DI24

Bourdon tube manometer; Body, Front ring Stainless steel 1.4301; Measuring unit 1.4404; Front glass Mineral glass; Ambient temperature -40...+60°C; Medium temperature Max. +100°C; Connection Rear; Class 1,6

Bourdon tube manometer; Safety version EN837-1 S3; Break-proofed separating plate; Blow-out back; Body Stainless steel AISI 304; Measuring unit Stainless steel AISI 316L; Motion work Stainless steel 1.4571; Front glass Laminated safety glass; Ambient temperature -20...+60°C; Medium temperature Max. +100°C; Connection Below

Glycerin manometer Series MA082-B

; Series MA087; Bourdon tube manometer; Body, Ring Stainless steel AISI 304; Measuring unit, Motion work Copper based alloy; Front glass Flat instrument glass; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Parallel connection 1/2" Below; Class 1,6

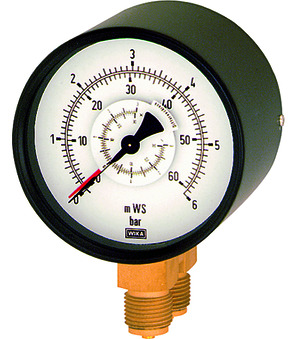

Differential pressure manometer

Body, Ring Stainless steel; Front glass Flat instrument glass; Stem Ø 8mm, Stainless steel 1.4571; Connection Below; Flat with spigot ø 15mm; Class 1,0

Bimetallic thermometer Series TH010

Bourdon tube manometer; Safety version EN837-1 S3; Break-proofed separating plate; Blow-out back; Body Stainless steel AISI 304; Measuring unit Stainless steel AISI 316L; Motion work Stainless steel 1.4571;Front glass Laminated safety glass; Ambient temperature -20...+60°C; Medium temperature Max. +100°C; Connection Rear

Glycerin manometer Series MA082-B

Bourdon tube manometer; Body Stainless steel 1.4301; Measuring unit 1.4404; Front glass Polycarbonat; Ambient temperature -20...+60°C; Medium temperature Max. +100°C; Connection Rear; Class 1,6

Glycerin manometer Series MA030-R

Bourdon tube manometer; Body Stainless steel 1.4301; Measuring unit 1.4404; Front glass Polycarbonat; Ambient temperature -20...+60°C; Medium temperature Max. +100°C; Connection Below; Class 1,6

Glycerin manometer Series MA030-B

Body Stainless steel 1.4301; Measuring unit 1.4404; Front glass Flat instrument glass; Ambient temperature -40...+60°C; Medium temperature Max. +200°C; Connection Rear

Bourdon tube manometer Series MA029-R

Material Aluminum; Outlets One-sided

Distributor Series DI25

Material Polyamide; Multiplier for operating pressure 30°C = 0,87 / 80°C = 0,47; Vacuum -0,87bar; Temperature range -60...100°C

Plastic hose Series PA

Bourdon tube manometer with glycerin filling ; Body, Bajonet ring Stainless steel; Measuring unit, Motion work Copper based alloy; Front glass Mineral glass; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection 1/2" Below

Manometer - sensitive type Series MA043-B

Material PFA; Multiplier for operating pressure 100°C = 0,60 / 200°C = 0,35; Temperature Max. 250°C; Colour Transparent-White

Plastic hose Series PFA

Body Stainless steel AISI 304; Front ring 3-square; Mounting clamp; Measuring unit Stainless steel AISI 316; Motion work Stainless steel AISI 316Ti; Front glass Flat instrument glass; Ambient temperature -40...+60°C; Medium temperature Max. +200°C

Bourdon tube manometer Series MA091-R

Body, Ring Stainless steel; Measuring unit Stainless steel; Front glass Laminated safety glass; Ambient temperature -20...+60°C; Medium temperature Max. +100°C; Overload 5 x Value of scale, Max. 40bar; Seal FKM; Connection 1/2" Below; Test flange Ø 100mm; Class 1,6

Manometer - chemical diaphragm type

Material Polyamide; Multiplier for operating pressure 30°C = 0,87 / 80°C = 0,43; Vacuum -0,87bar; Temperature range -60...130°C; Delivered on drum

Plastic hose Series PA-D

According to DIN 2391/C; EN 10305-4; Outside Galvanic zinc plated; Blue chromium plated; Inside Bright; Eddy current approved; Material St37.4 White-zinc plated; Incl. Inspection certificate EN-10204-3.1; For material

Seamless steel pipe White-zinc plated

Material PTFE; Multiplier for operating pressure 100°C = 0,65 / 200°C = 0,35; Temperature range -60...250°C

Plastic hose Series PT

Bourdon tube manometer; Electrical indicator (Magnetic spring contact); Body Stainless steel 1.4301; Measuring unit 1.4404; Motion work , Connection Stainless steel 1.4571; Front glass Flat instrument glass; Ambient temperature -40...+60°C; Medium temperature Max. +200°C; Contact M21, 2 Magnetic spring contact for open/close of electric circuits depending on pointer position; Connection 1/2" Below; Class 1,0; Filled with silicone oil

To screw for high quality type; Connection 1/2"; Seal collar Ø 15mm;

Material Polyurethane; Multiplier for operating pressure 30°C = 0,9 / 60°C = 0,65; Vacuum -0,87bar; Temperature range -35...60°C; Delivered on drum

Plastic hose Series PU

Protecting tube

Material Polyurethane; Operating pressure at 23°C 12bar; Multiplier for operating pressure 60°C = 0,47; Swivel fittings on both sides; Antikink; Incl. Coupling, Coupling plug DN 7,2; Brass; Temperature range -40...60°C; Colour Blue

Spiral hose Series PU-SPAC72

Body Steel Painted; Mounting position Standing

Compressed air tank Series AT04

Material PA6 HL; Multiplier for operating pressure 30°C = 0,83 / 80°C = 0,48; Vacuum -0,87bar; Temperature range -60...130°C

Plastic hose Series PA6R

Material Silicone; Temperature range -60...200°C; For the pressureless passage of liquids and gases

Plastic hose Series SI

According to DIN 2391/C; DIN 2445-2/DIN 1630; EN 10305-4; Phosphated; Eddy current approved; Material St37.4; Incl. Inspection certificate EN-10204-3.1; For material

Seamless steel pipe Bright

High flexible; Oil resistant; Material Soft-PVC; Operating pressure at 23°C 16bar; Multiplier for operating pressure 90°C = 0,375; Temperature range -20...90°C; Colour Blue; Antistatic

Fabric hose for compressed air Series PV07-S

High flexible; Material Soft-PVC; Operating pressure at 23°C 15bar; Temperature range -20...60°C; Colour Blue

Fabric hose for compressed air Series PV05

Material Soft-PVC; Temperature range -15...60°C

Fabric hose, material PVC Series PV08

According to EN ISO 1127 DIN 17456/58; Heat treated; Pickled; Tolerance class D4/T3, According to DIN 2391 Suitable for Fittings; Material 1.4571; Incl. Inspection certificate EN-10204-3.1 For material

Seamless stainless steel pipe

Glycerin manometer Series MA009-B

Body Stainless steel; Measuring unit, Motion work Brass; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +80°C; 10 times overload; Connection Below; Class 1,6

Capsule manometer Series MA035-B

Body Sheet steel, Front ring 3-square Chromium-plated; Mounting clamp; Measuring unit, Motion work Copper based alloy; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection Rear; Class 1,6

Body Stainless steel; Measuring unit, Motion work Brass; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +80°C; 10 times overload; Connection Rear; Class 1,6

Capsule manometer Series MA035-R

Material Soft-PVC; Temperature range -15...60°C

Fabric hose, material PVC Series PV10

Body Stainless steel 1.4301; Measuring unit 1.4404; Front glass Flat instrument glass; Ambient temperature -40...+60°C; Medium temperature Max. +200°C; Connection Below

Bourdon tube manometer Series MA029-B

Water hose; Temperature range -20...60°C

Fabric hose, material PVC Series PV13

Material Brass; Outlets Female thread; 4 Outlets, One-sided

Distributor Series VT

Body Stainless steel AISI 304; Operating pressure Max. 11bar; According to Directive 2014/68/EU (pressure equipment directive, PED); Mounting position Horizontal

Compressed air tank Series AT03

Bourdon tube manometer; Body Stainless steel 1.4301; Measuring unit Stainless steel AISI 316; Connection Stainless steel AISI 316Ti; Front glass Flat instrument glass; Ambient temperature -20...+60°C; Medium temperature Max. +200°C; Connection below; Contact I21, 2 Inductive proximity switches; Namur Ex II 2 G EEx ia IIC T6; 1. Contact opens, 2. Contact closes Depending on the pointer position; Switch amplifier required

Diaphragm type; Body Stainless steel 1.4305; Measuring unit, Connection Stainless steel AISI 316Ti; Front glass Flat instrument glass; Ambient temperature -20...+60°C; Medium temperature Max. +100°C; Overload 5 x Value of scale, Max. 40bar; Seal NBR; Connection 1/2" Below; Class 1,6; Contact I21, 2 Inductive proximity switches; Namur Ex II 2 G EEx ia IIC T6; 1. Contact opens, 2. Contact closes Depending on the pointer position; Switch amplifier required

Body Stainless steel AISI 303; Measuring unit, Connection Stainless steel AISI 316Ti; Front glass Flat instrument glass; Ambient temperature -20...+60°C; Medium temperature Max. +100°C; Overload 5 x Value of scale, Max. 40bar; Seal NBR; Connection 1/2" Below; Test flange Diameter 100mm; Class 1,6

Manometer - chemical diaphragm type

Material Polyethylene; Multiplier for operating pressure 30°C = 0,83 / 60°C = 0,57; Vacuum -0,87bar; Temperature range -10...60°C

Plastic hose Series PE

Bourdon tube manometer; Body Brass, Front ring Steel Polished; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection Rear

Glycerin manometer Series MA075

Body Sheet steel; Measuring unit, Motion work Copper based alloy; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection Rear; Class 1,6; Free of oil and grease for oxygen

Bourdon tube manometer Series MA001-Oxygen

Body Plastic; Measuring unit, Motion work Copper based alloy; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection Rear

Body, Front ring Stainless steel AISI 304; Measuring unit Stainless steel AISI 316L, Motion work, Connection Stainless steel AISI 316Ti; Front glass Flat instrument glass; Ambient temperature -40...+60°C; Medium temperature Max. +200°C; Connection Rear; Class 1,6
