Hoses, Tubes, Manometer and accessories

STASTO Allgemeine Preisliste (EUR)
MA053-100B-400-01
manometer with electrical contact; bourdon tube manometer; electrical indicator (magnetic spring contact); 3 contacts M221; 2 x opening, 1 x close; housing stainless steel AISI 304; measuring unit, motion work copper based alloy; front glass mineral glass; ambient temperature -40...+60°C; medium temperature max. +60°C; connection 1/2" below; class 1,0; diameter 100mm; indicating range 0-400; unit bar
MA036-100B-0,6-03
bourdon tube manometer series MA036-B; body stainless steel AISI 304; measuring unit, motion work copper based alloy; front glass mineral glass; connection below; ambient temperature -40...+60°C; medium temperature max. +60°C; class 1,0; diameter 100mm; indicating range 0...0,6; unit bar; connection 1/2"; incl. factory calibration certificate and Inspection sticker
CFC-MA036-100B-0,6-03
factory calibration certificate; accuracy class 1.0...4.0
TH004-109R-00120-02
bimetallic thermometer; body stainless steel AISI 304; front glass flat instrument glass; diameter 100mm; stem length 400mm; stem stainless steel AISI 316Ti diameter 7mm; connection rear; indicating range 0...+120°C; connection 1/2"
TH004-109R-00120-03
bimetallic thermometer; body stainless steel AISI 304; front glass flat instrument glass; diameter 100mm; stem length 500mm; stem stainless steel AISI 316Ti diameter 7mm; connection rear; indicating range 0...+120°C; connection 1/2"

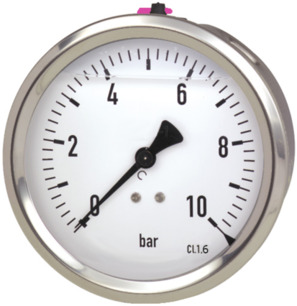

MA009-63R-10
Glycerin manometer; Bourdon tube manometer; Body Stainless steel; Front ring Stainless steel Bright; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection 1/4" Rear; Class 1,6; Diameter 63mm; Indicating range 0-10; Unit bar/psi
6X1WV-2
Seamless steel pipe White-zinc plated; According to DIN 2391/C; EN 10305-4; Outside Galvanic zinc plated; Blue chromium plated; Inside Bright; Eddy current approved; Material St37.4 White-zinc plated; Diameter Tube Outside 6mm; Material thickness 1mm; Max. operating pressure 418bar; Cut to 2m
PU-4/2-BK-1-E
spark erosion protected plastic hose; inner tube polyurethane colour blue outside diameter 4mm; inside diameter 2mm; with coating colour black; operating pressure at 23°C 20bar; multiplier for operating pressure 66°C = 0,41; temperature range -40...+70°C
HC03-8/12-7-S
hose clip series HC03-S; screw flight; stainless steel AISI 316; bandwidth 7mm; clamping range 8-12mm
HC03-8/16-9-S
Hose clip Series HC03-S; Screw flight; Stainless steel 1.4401; Bandwidth 9mm; Clamping range 8...16mm
HC03-12/22-9-S
hose clip series HC03-S; screw flight; stainless steel AISI 316; bandwidth 9mm; clamping range 12-22mm
HC03-16/27-12-S
hose clip series HC03-S; screw flight; stainless steel AISI 316; bandwidth 12mm; clamping range 16-27mm
TH93-12N-12-B
manometer adapter; extension; male thread 1/2"NPT; female thread G 1/2"; material brass; pressure rating PN250
CMA-GA050-2000-2000-0M-02
Hydrostatic calculation
MA001-40R-4-YA
bourdon tube manometer series MA001; body sheet steel; measuring unit, motion work copper based alloy; front glass plastic; ambient temperature -20...+60°C; medium temperature max. +60°C; connection rear; class 1,6; diameter 40mm; indicating range 0-4; unit bar; connection 1/8"
MA081-63B-4-02
bourdon tube manometer series MA081; body sheet steel; measuring unit, motion work copper based alloy; front glass acryl; ambient temperature -20...+60°C; medium temperature max. +60°C; connection below; diameter 63mm; indicating range 0...4; unit bar; connection 1/4"; class 1,6; green mark of 1,5...2,5bar; brand indicator of 2,5
MA030-100B-V5-01
Manometer with single scale bar; Bourdon tube manometer; Body Stainless steel 1.4301; Measuring unit 1.4404; Front glass Mineral glass; Glycerine filling; Ambient temperature -40...+60°C; Medium temperature Max. +60°C; Connection Below; Diameter 100mm; Indicating range -1...+5bar; Class 1,0; Incl. Diaphragm pressure transformer Stainless steel 1.4571 PTFE-lined; Connection G1/2"
MA030-100B-10-04
manometer with single scale bar; bourdon tube manometer; body stainless steel AISI 304; measuring unit AISI 316L; front glass mineral glass; Glycerine filling; ambient temperature -40...+60°C; medium temperature max. +60°C; connection below; diameter 100mm; indicating range -1...+5bar; class 1,0; incl. diaphragm pressure transformer stainless steel AISI 316Ti PTFE-lined; connection G1/2"
MA030-100B-6-02
manometer with single scale bar; bourdon tube manometer; body stainless steel AISI 304; measuring unit AISI 316L; front glass mineral glass; Glycerine filling; ambient temperature -40...+60°C; medium temperature max. +60°C; connection below; diameter 100mm; indicating range -1...+5bar; class 1,0; incl. diaphragm pressure transformer stainless steel AISI 316Ti PTFE-lined; connection G1/2"
CFC-MA030-100B-V5-01
factory calibration certificate; accuracy class 1.0...4.0
