Hoses, Tubes, Manometer and accessories

STASTO Allgemeine Preisliste (EUR)

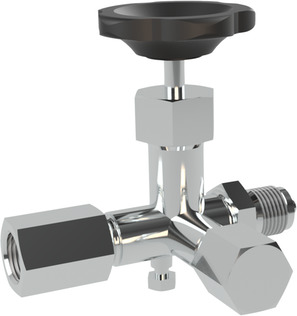

MSV01-M20X1,5-W-01
Manometer stop-valve; According to DIN 16270; Spigot/Clamping sleeve; Connection M20x1,5; Nominal pressure 400bar; Material Stainless steel AISI 316Ti; Max. medium temperature 200°C; Seal PTFE; Oil and grease-free for oxygen
MSV01-M20X1,5-W-3C
Manometer stop-valve; According to DIN 16270; Spigot/Clamping sleeve; Connection M20x1,5; Nominal pressure 400bar; Material Stainless steel AISI 316Ti; Max. medium temperature 200°C; Seal PTFE; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness (Steel/Stainless steel)

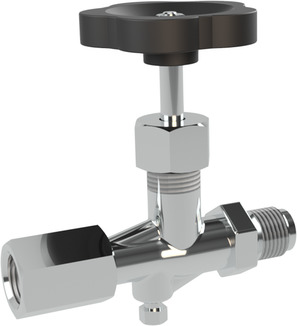

MSV02-12N-W
Manometer stop-valve; According to DIN 16270; Spigot/Swivel sleeve, Shank for holder of measuring instruments; Connection 1/2"NPT; Nominal pressure 400bar; Material Stainless steel AISI 316Ti; Max. medium temperature 200°C; Seal PTFE
MSV02-12-W-01
Manometer stop-valve; According to DIN 16270; Spigot/Swivel sleeve, Shank for holder of measuring instruments; Connection 1/2"; Nominal pressure 400bar; Material Stainless steel AISI 316Ti; Max. medium temperature 60°C; Seal PTFE; Free of oil and grease for oxygen
MSV03-12-W-3K
Manometer stop-valve; According to DIN 16271; Spigot/Tension sleeve with test spigot M20x1,5; Connection 1/2"; Nominal pressure 400bar; Material Stainless steel AISI 316Ti; Max. medium temperature 200°C; Seal PTFE; Free of oil and grease; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
MSV03-M20X1,5-W-3K
Manometer stop-valve; According to DIN 16271; Spigot/Tension sleeve with test spigot M20x1,5; Connection M20x1,5; Nominal pressure 400bar; Material Stainless steel AISI 316Ti; Max. medium temperature 200°C; Seal PTFE; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
MSV03-M20X1,5-W-3K-01
Manometer stop-valve; According to DIN 16271; Spigot/Tension sleeve with test spigot M20x1,5; Connection M20x1,5; Nominal pressure 400bar; Material Stainless steel AISI 316Ti; Medium temperature -30...+200°C; Seal PTFE; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
MSV04-M20X1,5-W-3K
Manometer stop-valve; According to DIN 16271; Spigot/Swivel sleeve, Shaft for holder of measuring instruments with test spigot M20x1,5; Connection M20x1,5; Nominal pressure 400bar; Material Stainless steel AISI 316Ti; Max. medium temperature 200°C; Seal PTFE; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
MSV04-M20X1,5-W-3K-01
Manometer stop-valve; According to DIN 16271; Spigot/Swivel sleeve, Shaft for holder of measuring instruments with test spigot M20x1,5; Connection M20x1,5; Nominal pressure 400bar; Material Stainless steel AISI 316Ti; Medium temperature -30...+200°C; Seal PTFE; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
ND111A3D100KA
Mano-vacuum gauge with plastic case dia. 63 mm, pressure: -0.6 to 0 bar, connection 1/4" bottom, single scale bar, with Greiner/STASTO logo
ND111C3D100KA
Mano-vacuum gauge with plastic housing, dia. 63 mm, pressure: -0.6 to 0 bar, connection 1/4" rear, single scale bar, with Greiner/STASTO logo
PAR-8/6-BK-1
Plastic hose; Material Polyamide; Multiplier for operating pressure 30°C = 0,81 / 80°C = 0,34; Vacuum -0,87bar; Temperature range -60...130°C; Outside diameter 8mm; Inside diameter 6mm; Operating pressure at 23°C 38bar; Colour Black
PASE-6/4-BU-1
Plastic hose; Material Polyamide; Multiplier for operating pressure 30°C = 0,70 / 40°C = 0,65 / 50°C = 0,52 / 60°C = 0,45; Vacuum -0,87bar; Temperature range -60...130°C; Outside diameter 6mm; Inside diameter 4mm; Operating pressure at 23°C 32bar; Colour Blue; Self-extinguishing; UL94 V2 Certified
PAV2-10/8-BU-0050
Plastic hose; Material Polyamide; Multiplier for operating pressure 30°C = 0,70 / 40°C = 0,75 / 50°C = 0,65 / 60°C = 0,55; Temperature range -20...80°C; Outside diameter 10mm; Inside diameter 8mm; Operating pressure at 23°C 16bar; Colour Blue; Self-extinguishing; UL94 V2 Certified
PAV2-12/10-BU-0050
Plastic hose; Material Polyamide; Multiplier for operating pressure 30°C = 0,70 / 40°C = 0,75 / 50°C = 0,65 / 60°C = 0,55; Temperature range -20...80°C; Outside diameter 12mm; Inside diameter 10mm; Operating pressure at 23°C 12bar; Colour Blue; Self-extinguishing; UL94 V2 Certified
PAV2-6/4-BU-0100
Plastic hose; Material Polyamide; Multiplier for operating pressure 30°C = 0,70 / 40°C = 0,75 / 50°C = 0,65 / 60°C = 0,55; Temperature range -20...80°C; Outside diameter 6mm; Inside diameter 4mm; Operating pressure at 23°C 28bar; Colour Blue; Self-extinguishing; UL94 V2 Certified
PAV2-8/6-BU-0100
Plastic hose; Material Polyamide; Multiplier for operating pressure 30°C = 0,70 / 40°C = 0,75 / 50°C = 0,65 / 60°C = 0,55; Temperature range -20...80°C; Outside diameter 8mm; Inside diameter 6mm; Operating pressure at 23°C 20bar; Colour Blue; Self-extinguishing; UL94 V2 Certified
PC-12/8-CC-1
Plastic hose; Material PVC;Temperature range -40...100°C; Outside diameter 12mm; Inside diameter 8mm; Operating pressure at 23°C 33bar; Colour Transparent
PF-4/2,5-BK-0100-YA
Plastic hose; Material Polyamide high flexible; Multiplier for operating pressure 30°C = 0,77 / 50°C = 0,54; Vacuum -0,87bar; Outside diameter 4mm; Inside diameter 2,5mm; Operating pressure at 23°C 20bar; Colour Black
PF-4/2,5-BK-1
Plastic hose; Material Polyamide high flexible; Multiplier for operating pressure 30°C = 0,83 / 60°C = 0,55; Vacuum -0,87bar; Outside diameter 4mm; Inside diameter 2,5mm; Operating pressure at 23°C 20bar; Colour Black
