Fittings / Hose nozzlesHose fittings; Ferrules; Adapter |

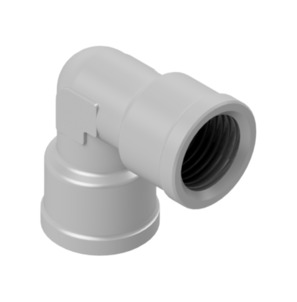

Elbow adapter Male thread/Female thread Series TH16C
Nickel plated brass; Conical thread
Grundversion
| Male thread | Female thread | Type | Sequence |
|---|---|---|---|
| R 1/8" | G 1/8" | TH16C-18-N | 6440000 |
| R 1/4" | G 1/4" | TH16C-14-N | 6440001 |
| R 1/4" | G 1/4" | TH16C-14-N-YA | 6440002 |
| R 3/8" | G 3/8" | TH16C-38-N | 6440003 |
| R 1/2" | G 1/2" | TH16C-12-N | 6440004 |
| R 3/4" | G 3/4" | TH16C-34-N-YA | 6440005 |
| R 1" | G 1" | TH16C-10-N-YA | 6440008 |

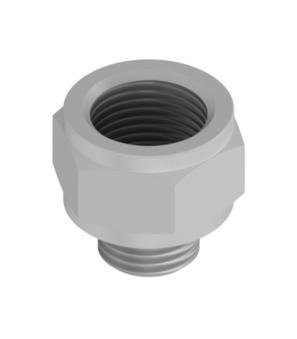

Female to male reducer adapter Series TH59
Nickel plated brass; Cylindrical thread
Grundversion
| Male thread | Female thread | Type | Sequence |
|---|---|---|---|
| M5 | 1/8" | TH59-M5-18-N | 6450000 |
| G 1/8" | 1/8" | TH59-18-N | 6450001 |
| G 1/8" | 1/4" | TH59-18-14-N | 6450002 |
| G 1/8" | 3/8" | TH59-18-38-N-YA | 6450003 |
| G 1/4" | 1/4" | TH59-14-N | 6450004 |
| G 1/4" | 3/8" | TH59-14-38-N | 6450005 |
| G 1/4" | 1/2" | TH59-14-12-N | 6450006 |
| G 3/8" | 3/8" | TH59-38-N | 6450007 |
| G 3/8" | 1/2" | TH59-38-12-N | 6450008 |
| G 1/2" | 1/2" | TH59-12-N | 6450009 |
T-adapter Female thread/Female thread/Male thread Series TH24C
Nickel plated brass; Conical thread
Grundversion
| Male thread | Female thread | Type | Sequence |
|---|---|---|---|
| R 1/8" | G 1/8" | TH24C-18-N | 6460000 |
| R 1/8" | G 1/8" | TH24C-18-N-YA | 6460001 |
| R 1/4" | G 1/4" | TH24C-14-N | 6460002 |
