Fittings and couplings

Nickel plated brass; Cylindrical thread

Grundversion

Diameter	Thread	Type	Sequence
6 mm	1/8"	PI85-06-18-N-0-360	10730000
8 mm	1/8"	PI85-08-18-N-0-360	10730001
6 mm	1/4"	PI85-06-14-N-0-360	10730002
8 mm	1/4"	PI85-08-14-N-0-360	10730003
10 mm	1/4"	PI85-10-14-N-0-360	10730004
10 mm	3/8"	PI85-10-38-N-0-360	10730005
12 mm	3/8"	PI85-12-38-N-0-360	10730006
12 mm	1/2"	PI85-12-12-N-0-360	10730007

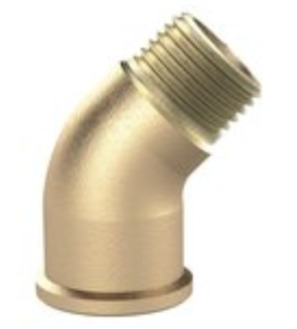

Elbow adapter 45° Male/female Series TH85-B; Brass; Cylindrical thread; Thread 1/2"

Thread	Type
1/2"	TH85-12-B-YA

Brass; Cylindrical thread

Grundversion

Diameter	Thread	Type	Sequence
6 mm	1/8"	DI14-06-18-B	10750000
8 mm	1/8"	DI14-08-18-B	10750001
6 mm	1/4"	DI14-06-14-B	10750002
14 mm	1/2"	DI14-14-12-B	10750003
5 mm	1/8"	DI14-05-18-B	10750004

Elbow adapter Female/male Series TH16-E; Polypropylen; Cylindrical thread; Thread 1/4"

Thread	Type
1/4"	TH16-14-E

Bulkhead union elbow Series C-WSV-X; Zinc plated steel; Without nut and die ring; Type 6-L

Type	Type
6-L	C-WSV06LX

Sealring Series USIT; Zinc plated steel-NBR; Thread 1/2" And M20

Thread	Type
1/2" And M20	USIT-R1/2"

Bulkhead union elbow Series C-WSV-X; Zinc plated steel; Without nut and die ring; Type 8-L

Type	Type
8-L	C-WSV08LX

Zinc plated steel-NBR

Grundversion

Thread	Type	Sequence
1/4"	USIT-R1/4"	10770001
1/8"	USIT-R1/8"	10770002
