Pneumatics
| Male thread | Female thread | Type | Sequence |
|---|---|---|---|
| R 3/8" | G 3/8" | TH59C-38-N | 6500006 |
| R 3/8" | G 1/2" | TH59C-38-12-N | 6500007 |
| R 1/2" | G 1/2" | TH59C-12-N | 6500008 |
| R 1/4" | G 3/8" | TH59C-34-S | 6500017 |
Reduction hex nipple Series TH38
Nickel plated brass; Cylindrical thread
Grundversion
| Male thread | Male thread 2 | Type | Sequence |
|---|---|---|---|
| M5 | G 1/8" | TH38-M5-18-N | 6510000 |
| G 1/8" | G 1/4" | TH38-18-14-N | 6510001 |
| G 1/8" | G 3/8" | TH38-18-38-N | 6510002 |
| G 1/4" | G 3/8" | TH38-14-38-N | 6510003 |
| G 1/4" | G 1/2" | TH38-14-12-N | 6510004 |
| G 3/8" | G 1/2" | TH38-38-12-N | 6510005 |

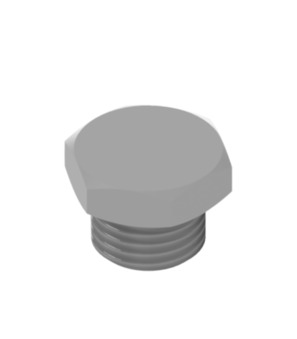

Plug screw Series TH50
Nickel plated brass; With o-ring NBR; Cylindrical thread; Hexagon socket
Grundversion
| Male thread | Type | Sequence |
|---|---|---|
| G 1/8" | TH50-18-N-0 | 6520000 |
| G 1/4" | TH50-14-N-0 | 6520001 |
| G 3/8" | TH50-38-N-0 | 6520002 |
| G 1/2" | TH50-12-N-0 | 6520003 |
Grundversion
| Female thread | Type | Sequence |
|---|---|---|
| G 1/8" | TH20-18-N | 6520003 |
| G 1/4" | TH20-14-N | 6520004 |
| G 3/8" | TH20-38-N | 6520005 |
| G 3/4" | TH20-34-B-YA | 6520006 |
| G 3/4" | TH20-34-N | 6520007 |
| Male thread | Type |
|---|---|
| M5 | TH67-M5-N |
