Valves, butterfly valves and gate valves - manually operated
| DN | Length | Design | Type | Sequence |
|---|---|---|---|---|
| 350 mm | 78 mm | - | BULC-350-DSN-G-3C | 27910009 |
| 400 mm | 102 mm | - | BULC-400-DSE-G | 27910010 |
| 450 mm | 114 mm | - | BULC-450-DSE-G | 27910011 |
| 500 mm | 127 mm | - | BULC-500-DSE-G | 27910012 |
Butterfly valve with hand lever Series BUW6-DSD-L
Wafer type; DVGW-gas-approved; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+60°C
Grundversion
| DN | Length | Pressure range | Type | Sequence |
|---|---|---|---|---|
| 40 mm | 33 mm | 0...16 bar | BUW6-040-DSD-L | 27920000 |
| 50 mm | 43 mm | 0...16 bar | BUW6-050-DSD-L | 27920001 |
| 65 mm | 46 mm | 0...16 bar | BUW6-065-DSD-L | 27920002 |
| 80 mm | 46 mm | 0...16 bar | BUW6-080-DSD-L | 27920003 |
| 100 mm | 52 mm | 0...16 bar | BUW6-100-DSD-L | 27920004 |
| 125 mm | 56 mm | 0...16 bar | BUW6-125-DSD-L | 27920005 |
| 150 mm | 56 mm | 0...16 bar | BUW6-150-DSD-L | 27920006 |
| 200 mm | 60 mm | 0...16 bar | BUW6-200-DSD-L | 27920007 |
| 250 mm | 68 mm | 0...10 bar | BUW4-250-DSD-L | 27920008 |
| 300 mm | 78 mm | 0...10 bar | BUW4-300-DSD-L | 27920009 |
| DN | Length | Pressure range | Type |
|---|---|---|---|
| 50 mm | 43 mm | 0...10 bar | BUW4-040-DSTS-L |

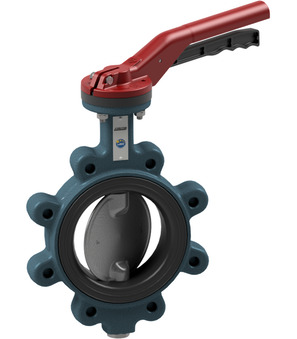

Butterfly valve with hand lever Series BULG-L, BULC-L
Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C
Grundversion
| DN | Length | Flange | Pressure range | Design | Type | Sequence |
|---|---|---|---|---|---|---|
| 40 mm | 33 mm | PN10/16 | 0...16 bar | - | BULG-040-DSE-L | 27930000 |
| 50 mm | 43 mm | PN10/16 | 0...16 bar | - | BULG-050-DNE-L | 27930001 |
Butterfly valve with hand lever Series BUW4-DSTS-L
Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc And Shaft 1.4408; Liner PTFE/silicone; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+190°C; Pressure range 0...10bar
Grundversion
| DN | Length | Pressure range | Type | Sequence |
|---|---|---|---|---|
| 50 mm | 43 mm | 0...10 bar | BUW4-050-DSTS-L | 27930001 |
| 65 mm | 46 mm | 0...10 bar | BUW4-065-DSTS-L | 27930002 |
| DN | Length | Flange | Pressure range | Design | Type |
|---|---|---|---|---|---|
| 50 mm | 43 mm | PN10/16 | 0...16 bar | - | BULG-050-DSE-L |
