Valves, butterfly valves and gate valves - manually operated

STASTO Allgemeine Preisliste (EUR)

Gate valve with handwheel For cryogenic applications -196°C Series GA029

Body 1.4401; Socket weld ends; 800lbs; Handwheel Steel; Packing gland PTFE; Rising stem
To Series: Gate valve with handwheel For cryogenic applications -196°C Series GA029
Grundversion
DN Length Type Sequence
15 mm 80 mm GA029-15-W 29030000
50 mm 127 mm GA029-50-W 29030001
Needle valve Series 110VA-NPT

Needle valve Series 110VA-NPT

Body Stainless steel 1.4571; Stem seal PTFE; Medium temperature -20...+250°C
To Series: Needle valve Series 110VA-NPT
Grundversion
DN Length NPT Pressure range Material handwheel Type Sequence
4 mm 50 mm 1/8" NPT 0...400 bar Polyamide 110VA-1/8NPT 29040000
5 mm 55 mm 1/4" NPT 0...400 bar Polyamide 110VA-1/4"-NPT 29040001
7 mm 65 mm 1/2" NPT 0...400 bar Polyamide 110VA-1/2"-NPT 29040002
12 mm 110 mm 1" NPT 0...200 bar Steel 110VA-1"NPT 29040003

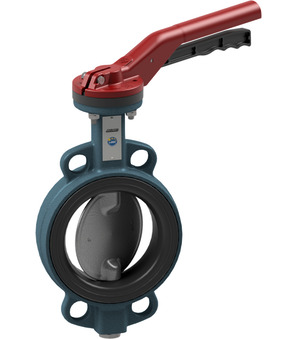

Butterfly valve with hand lever Series BUW6-DV-L

Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+200°C; Pressure range 0...16bar
To Series: Butterfly valve with hand lever Series BUW6-DV-L
Grundversion
DN Length Pressure range Disc Type Sequence
50 mm 43 mm 0...16 bar Zinc plated steel BUW6-050-DUV-L 29050000
65 mm 46 mm 0...16 bar Zinc plated steel BUW6-065-DUV-L 29050001
80 mm 46 mm 0...16 bar Zinc plated steel BUW6-080-DUV-L 29050003
100 mm 52 mm 0...16 bar Zinc plated steel BUW6-100-DUV-L 29050004
150 mm 56 mm 0...16 bar GGG40 Zinc plated BUW6-150-DPV-L 29050005

Butterfly valve with bare shaft Series BUW6-DV-B

Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+200°C; Pressure range 0...16bar
To Series: Butterfly valve with bare shaft Series BUW6-DV-B
Grundversion
DN Length Disc Type Sequence
50 mm 43 mm Zinc plated steel BUW6-050-DUV-B 29060000
65 mm 46 mm Zinc plated steel BUW6-065-DUV-B 29060001
80 mm 46 mm Zinc plated steel BUW6-080-DUV-B 29060002
100 mm 52 mm Zinc plated steel BUW6-100-DUV-B 29060003
150 mm 56 mm GGG40 Zinc plated BUW6-150-DPV-B 29060004
200 mm 60 mm GGG40 Zinc plated BUW6-200-DPV-B 29060005
300 mm 78 mm GGG40 Zinc plated BUW6-300-DPV-B 29060006
400 mm 102 mm GGG40 Zinc plated BUW6-400-DPV-B 29060007
BUW6-040-DSE-L-3C
Butterfly valve with hand lever Series BUW6-DSE-L-3C; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; DN 40mm; Length 33mm
To Series: Butterfly valve with hand lever Series BUW6-DSE-L-3C
DN Length Pressure range Type
40 mm 33 mm - BUW6-040-DSE-L-3C
