Valves, butterfly valves and gate valves - manually operated

STASTO Allgemeine Preisliste (EUR)
BUW6-065-DSE-G

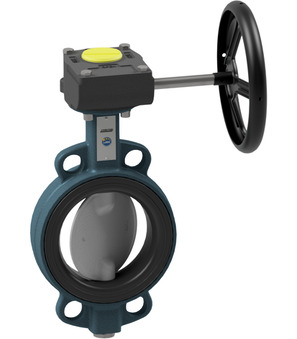

Butterfly valve with manual gear box Series BUW6-DSE-G; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 65mm; Length 46mm
To Series: Butterfly valve with manual gear box Series BUW6-DSE-G
DN Length Pressure range Type
65 mm 46 mm 0...16 bar BUW6-065-DSE-G
BUW6-250-DPE-G

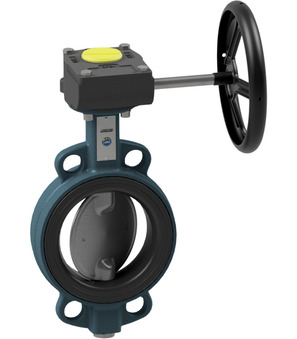

Butterfly valve with manual gear box Series BUW6-DPE-G; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc Ductile iron EN-GJS-400-15 Zinc plated; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 250mm; Length 68mm
To Series: Butterfly valve with manual gear box Series BUW6-DPE-G
DN Length Pressure range Type
250 mm 68 mm 0...16 bar BUW6-250-DPE-G
BUW6-050-DSE-L
Butterfly valve with hand lever Series BUW6-DSE-L; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 50mm; Length 43mm
To Series: Butterfly valve with hand lever Series BUW6-DSE-L
DN Length Pressure range Design Type
50 mm 43 mm 0...16 bar - BUW6-050-DSE-L
BUW6-150-DSE-G
Butterfly valve with manual gear box Series BUW6-DSE-G; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 150mm; Length 56mm
To Series: Butterfly valve with manual gear box Series BUW6-DSE-G
DN Length Pressure range Type
150 mm 56 mm 0...16 bar BUW6-150-DSE-G
BUW6-300-DPE-G
Butterfly valve with manual gear box Series BUW6-DPE-G; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc Ductile iron EN-GJS-400-15 Zinc plated; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 300mm; Length 78mm
To Series: Butterfly valve with manual gear box Series BUW6-DPE-G
DN Length Pressure range Type
300 mm 78 mm 0...16 bar BUW6-300-DPE-G
BUW6-065-DSE-L
Butterfly valve with hand lever Series BUW6-DSE-L; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 65mm; Length 46mm
To Series: Butterfly valve with hand lever Series BUW6-DSE-L
DN Length Pressure range Design Type
65 mm 46 mm 0...16 bar - BUW6-065-DSE-L
BUW6-350-DPE-G
Butterfly valve with manual gear box Series BUW6-DPE-G; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc Ductile iron EN-GJS-400-15 Zinc plated; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 350mm; Length 78mm
To Series: Butterfly valve with manual gear box Series BUW6-DPE-G
DN Length Pressure range Type
350 mm 78 mm 0...16 bar BUW6-350-DPE-G
BUW6-200-DSE-G
Butterfly valve with manual gear box Series BUW6-DSE-G; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 200mm; Length 60mm
To Series: Butterfly valve with manual gear box Series BUW6-DSE-G
DN Length Pressure range Type
200 mm 60 mm 0...16 bar BUW6-200-DSE-G
BUW6-080-DSE-L
Butterfly valve with hand lever Series BUW6-DSE-L; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 80mm; Length 46mm
To Series: Butterfly valve with hand lever Series BUW6-DSE-L
DN Length Pressure range Design Type
80 mm 46 mm 0...16 bar - BUW6-080-DSE-L
BUW6-400-DPE-G
Butterfly valve with manual gear box Series BUW6-DPE-G; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc Ductile iron EN-GJS-400-15 Zinc plated; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 400mm; Length 102mm
To Series: Butterfly valve with manual gear box Series BUW6-DPE-G
DN Length Pressure range Type
400 mm 102 mm 0...16 bar BUW6-400-DPE-G
BUW6-250-DSE-G
Butterfly valve with manual gear box Series BUW6-DSE-G; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 250mm; Length 68mm
To Series: Butterfly valve with manual gear box Series BUW6-DSE-G
DN Length Pressure range Type
250 mm 68 mm 0...16 bar BUW6-250-DSE-G
BUW6-100-DSE-L
Butterfly valve with hand lever Series BUW6-DSE-L; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 100mm; Length 52mm
To Series: Butterfly valve with hand lever Series BUW6-DSE-L
DN Length Pressure range Design Type
100 mm 52 mm 0...16 bar - BUW6-100-DSE-L
BUW6-450-DPE-G
Butterfly valve with manual gear box Series BUW6-DPE-G; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc Ductile iron EN-GJS-400-15 Zinc plated; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 450mm; Length 114mm
To Series: Butterfly valve with manual gear box Series BUW6-DPE-G
DN Length Pressure range Type
450 mm 114 mm 0...16 bar BUW6-450-DPE-G
BUW6-300-DSE-G
Butterfly valve with manual gear box Series BUW6-DSE-G; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 300mm; Length 78mm
To Series: Butterfly valve with manual gear box Series BUW6-DSE-G
DN Length Pressure range Type
300 mm 78 mm 0...16 bar BUW6-300-DSE-G
BUW6-125-DSE-L
Butterfly valve with hand lever Series BUW6-DSE-L; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 125mm; Length 56mm
To Series: Butterfly valve with hand lever Series BUW6-DSE-L
DN Length Pressure range Design Type
125 mm 56 mm 0...16 bar - BUW6-125-DSE-L
BUW6-500-DPE-G
Butterfly valve with manual gear box Series BUW6-DPE-G; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc Ductile iron EN-GJS-400-15 Zinc plated; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 500mm; Length 127mm
To Series: Butterfly valve with manual gear box Series BUW6-DPE-G
DN Length Pressure range Type
500 mm 127 mm 0...16 bar BUW6-500-DPE-G
BUW6-350-DSE-G
Butterfly valve with manual gear box Series BUW6-DSE-G; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 350mm; Length 78mm
To Series: Butterfly valve with manual gear box Series BUW6-DSE-G
DN Length Pressure range Type
350 mm 78 mm 0...16 bar BUW6-350-DSE-G
Butterfly valve with hand lever Series BUW6-DSE-L

Butterfly valve with hand lever Series BUW6-DSE-L

Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar

Absperrklappe mit Handhebel Serie BUW6-DSE-L Absperrklappe mit Handhebel Serie BUW6-DSE-L
To Series: Butterfly valve with hand lever Series BUW6-DSE-L
Grundversion
DN Length Pressure range Design Type Sequence
150 mm 56 mm 0...16 bar - BUW6-150-DSE-L 27850006
Varianten
DN Length Pressure range Design Type Sequence
150 mm 56 mm 0...16 bar ATEX BUW6-150-DSE-L-EB0X39-40150 27850007
BUW6-400-DSE-G
Butterfly valve with manual gear box Series BUW6-DSE-G; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 400mm; Length 102mm
To Series: Butterfly valve with manual gear box Series BUW6-DSE-G
DN Length Pressure range Type
400 mm 102 mm 0...16 bar BUW6-400-DSE-G
