Valves, butterfly valves and gate valves - manually operated

Butterfly valve with bare shaft Series BULZ-CSEK-B-3C; Lug type; Length According to EN558−1R20; Body Carbon steel A216-WCB Epoxy coated; Disc 1.4408; Shaft 1.4305; Liner EPDM; Medium temperature -10...+130°C; DN 700mm; Length 165mm; Pressure range 0...10bar; Nominal flange pressure PN16; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

BULZ-700-CSEK-G

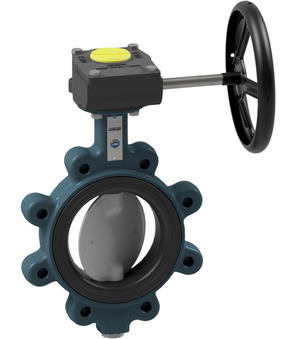

Butterfly valve with manual gear box Series BULZ-CSEK-G; Lug type; Length According to EN558−1 R20; Body Carbon steel A216-WCB Epoxy coated; Disc 1.4408; Shaft 1.4305; Liner EPDM; Medium temperature -10...+130°C; DN 700mm; Length 165mm; Pressure range 0...10bar; Nominal flange pressure PN16

C3J-BULZ-600-CSEK

Inspection certificate EN-10204-3.1; For material, pressure and tightness

BULZ-600-CSEK-B-3C

Butterfly valve with bare shaft Series BULZ-CSEK-B-3C; Lug type; Length According to EN558−1R20; Body Carbon steel A216-WCB Epoxy coated; Disc 1.4408; Shaft 1.4305; Liner EPDM; Medium temperature -10...+130°C; DN 600mm; Length 154mm; Pressure range 0...10bar; Nominal flange pressure PN16; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

BUW1-100-DSE-L

Butterfly valve with hand lever Series BUW1-DSE-L; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN6; Medium temperature -10...+130°C; Pressure range 0...6bar; DN 100mm; Length 52mm

149G088446

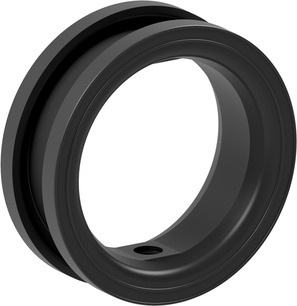

Liner; Suitable for Series Sylax; Material EPDM; Nominal diameter 150mm; Pressure range 0...16bar; Medium temperature -10...+110°C

C3J-BULZ-700-CSEK-01

Inspection certificate EN-10204-3.1; For material, pressure and tightness

C3Q-BULZ-700-CSEK

Notch impact test -29°C; Inspection certificate EN-10204-3.1

C3Q-BULZ-700-CSEK-01

Notch impact test -29°C; Inspection certificate EN-10204-3.1

BULZ-700-CSEK-B-3E

Butterfly valve with bare shaft Series BULZ-CSEK-B-3E; Lug type; Length According to EN558−1R20; Body Carbon steel A216-WCB Epoxy coated; Disc 1.4408; Shaft 1.4305; Liner EPDM; Medium temperature -29...+130°C; DN 700mm; Length 165mm; Pressure range 0...10bar; Nominal flange pressure PN16; Notch impact test -29°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

BULZ-700-CSEK-B-01

Butterfly valve with bare shaft Series BULZ-CSEK-B-01; Lug type; Length According to EN558−1R20; Body Carbon steel A216-WCB Epoxy coated RAL9005 C5-High According to EN-ISO 12944; Disc 1.4408; Shaft 1.4305; Liner EPDM; Medium temperature -10...+130°C; DN 700mm; Length 165mm; Pressure range 0...10bar; Nominal flange pressure PN16; Stainless steel nameplate; Stainless steel screws

BULZ-700-CSEK-B-3E01

Butterfly valve with bare shaft Series BULZ-CSNK-B-3E01; Lug type; Length According to EN558−1R20; Body Carbon steel A216-WCB Epoxy coated RAL9005 C5-High According to EN-ISO 12944; Disc 1.4408; Shaft 1.4305; Liner EPDM; Medium temperature -29...+130°C; DN 700mm; Length 165mm; Pressure range 0...10bar; Nominal flange pressure PN16; Stainless steel nameplate; Stainless steel screws; Notch impact test -29°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

BULZ-700-CSNK-B-3C01

Butterfly valve with bare shaft Series BULZ-CSNK-B-3C01; Lug type; Length According to EN558−1R20; Body Carbon steel A216-WCB Epoxy coated RAL9005 C5-High According to EN-ISO 12944; Disc 1.4408; Shaft 1.4305; Liner NBR; Medium temperature -10...+100°C; DN 700mm; Length 165mm; Pressure range 0...10bar; Nominal flange pressure PN16; Stainless steel nameplate; Stainless steel screws; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

BULZ-700-CSEK-B-3C01

Butterfly valve with bare shaft Series BULZ-CSEK-B-3C01; Lug type; Length According to EN558−1R20; Body Carbon steel A216-WCB Epoxy coated RAL9005 C5-High According to EN-ISO 12944; Disc 1.4408; Shaft 1.4305; Liner EPDM; Medium temperature -10...+130°C; DN 700mm; Length 165mm; Pressure range 0...10bar; Nominal flange pressure PN16; Stainless steel nameplate; Stainless steel screws; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

BULZ-700-CSEK-G-3E

Butterfly valve with manual gear box Series BULZ-CSEK-G-3E; Lug type; Length According to EN558−1 R20; Body Carbon steel A216-WCB Epoxy coated; Disc 1.4408; Shaft 1.4305; Liner EPDM; Medium temperature -29...+130°C; DN 700mm; Length 165mm; Pressure range 0...10bar; Nominal flange pressure PN16; Notch impact test -29°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

BULZ-700-CSEK-G-3E01

Butterfly valve with manual gear box Series BULZ-CSEK-G-3E01; Lug type; Length According to EN558−1 R20; Body Carbon steel A216-WCB Epoxy coated RAL9005 C5-High According to EN-ISO 12944; Disc 1.4408; Shaft 1.4305; Liner EPDM; Medium temperature -29...+130°C; DN 700mm; Length 165mm; Pressure range 0...10bar; Nominal flange pressure PN16; Stainless steel nameplate; Stainless steel screws; Notch impact test -29°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

C3J-BULZ-600-CSEK-01

Inspection certificate EN-10204-3.1; For material, pressure and tightness

C3Q-BULZ-600-CSEK

Notch impact test -29°C; Inspection certificate EN-10204-3.1

C3Q-BULZ-600-CSEK-01

Notch impact test -29°C; Inspection certificate EN-10204-3.1

BULZ-600-CSEK-B-01

Butterfly valve with bare shaft Series BULZ-CSEK-B-01; Lug type; Length According to EN558−1R20; Body Carbon steel A216-WCB Epoxy coated RAL9005 C5-High According to EN-ISO 12944; Disc 1.4408; Shaft 1.4305; Liner EPDM; Medium temperature -10...+130°C; DN 600mm; Length 154mm; Pressure range 0...10bar; Nominal flange pressure PN16; Stainless steel nameplate; Stainless steel screws
