Valves, butterfly valves and gate valves - manually operated

STASTO Allgemeine Preisliste (EUR)
BUUG-500-DXV-G
Butterfly valve with manual gear box; Double flange type; Length According to EN 558-1 Base row 13; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4469; Shaft 1.4021; Liner FKM; Nominal flange pressure PN10/16; Medium temperature -10...+125°C; Pressure range 0...16bar; DN 500mm
BUUG-500-DXV-G-3C
Butterfly valve with manual gear box; Double flange type; Length According to EN 558-1 Base row 13; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4469; Shaft 1.4021; Liner FKM; Nominal flange pressure PN10/16; Medium temperature -10...+125°C; Pressure range 0...16bar; DN 500mm; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
C3J-BUUG-500-DXV
inspection certificate EN-10204-3.1; for material, pressure and tightness
GB04-07/17-01
Gear box; Body Cast aluminium; Protection class IP65; Torque 250Nm; Flange ISO5211 F07; Female square 17mm; prepared For Locking device
C3M-FK1N1I1-6-200-PI01
inspection certificate EN-10204-3.1 for material, pressure, function and tightness
C3J-BULY-200-DSE-02
inspection certificate EN-10204-3.1; for material, pressure and tightness

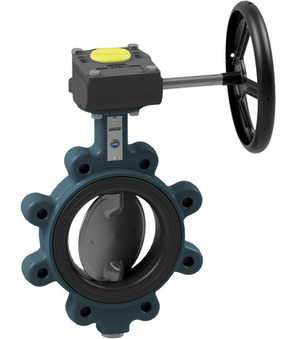

BULY-200-DSE-G-3C02
butterfly valve with manual gear box series BULY-DSE-G-3C02; lug type; incl. padlock; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; medium temperature -10...+130°C; pressure range 0...16bar; DN 200mm; length 60mm; nominal flange pressure ANSI150; flange thread UNC; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness

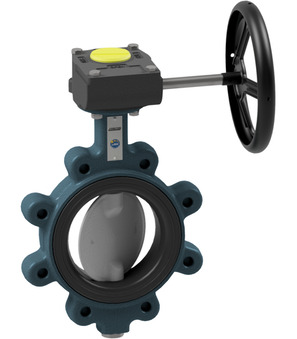

BULY-300-DSE-G-3C02
butterfly valve with manual gear box series BULY-DSE-G-3C02; lug type; incl. padlock; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; medium temperature -10...+130°C; pressure range 0...16bar; DN 300mm; length 78mm; nominal flange pressure ANSI150; flange thread UNC; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness
BDH2-300-S-004-EP0S10PZZ
BDH2-300-S-004
ring-butterfly damper with pneumatic actuator DN300, PN10; body; disc AISI 316Ti according to DIN EN 10028-2; shaft AISI 309 according to DIN EN 10095; packing gland adjustable graphite sealing cord; mounting bracket stainless steel; 180mm height; temperature range max. 550°C; operating pressure max. 500mbar; leakage rate 1%; length 45mm; actuator single acting PAS1605; control pressure 5,5-8bar
EP0S10PZZ
mounted positioner; digitaler I/P-Stellungsregler, 4-20 mA; actuator PAS052-270; position feedback 4-20mA
C3J-BUW6-050-DSN
Inspection certificate EN-10204-3.1; For material, pressure and tightness For BUW6-080-SSES-3C
C3J-BUW6-050-SSNS
Inspection certificate EN-10204-3.1; For material, pressure and tightness
GL161-300-W
globe valve; PN16; body cast iron EN-GJL-250; seat stainless steel AISI 410; cone, stem stainless steel AISI 420; handwheel cast iron EN-GJL-250; packing gland graphite; rising stem; medium temperature -10...+300°C; pressure range 0...16bar; DN 300mm
BULV-150-DSV-B
Butterfly valve with bare shaft Series BULV-DSE-B; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Medium temperature -10...+130°C; DN 150mm; Length 56mm; Pressure range 0…25bar; Nominal flange pressure PN25
GL115-80-W
globe valve; PN25/40; body steel; seat, cone, stem stainless steel AISI 420; handwheel steel; packing gland graphite; back seal; metal sealing; rising stem; medium temperature -10...+400°C; pressure range 0...40bar; DN 80mm; length 310mm
BULY-150-SSNS-B-01
butterfly valve with bare shaft series BUL-SSNS-B-01; lug type; length according to EN558−1 R20; body, disc and shaft AISI 316; liner NBR; medium temperature -10...+100°C; DN 150mm; length 56mm; pressure range 0…16bar; nominal flange pressure ANSI150; flange thread UNC
C3J-BULY-150-SSNS-01
inspection certificate EN-10204-3.1; for material, pressure and tightness
BUW6-065-DNE-B-A
Butterfly valve with bare shaft Series BUW6-DNE-B-A; ATEX II 2 G/D Ex h; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc Aluminium-bronze; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 65mm; Length 46mm
SS-AZ1N5H2-5-80-PIB
seat seal; suitable for knife gate valve series AZ; DN 80mm; material EPDM
GA-F1V2I6W-E-250-PIE
gate; AISI 316; DN250mm; for knife gate valve F1V2I6W-E-250-PIE
PS-F1V2I6W-E-250-PIE
packing; suitable for knife gate valve series F; DN 250mm; material PTFE/silicone FDA-approved
