Valves, butterfly valves and gate valves - manually operated

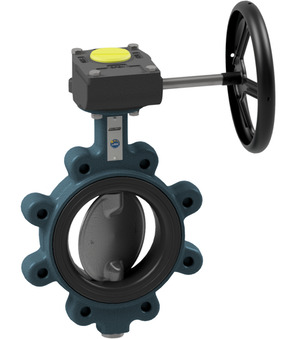

butterfly valve with manual gear box series BULY-DSE-G-3C01; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; medium temperature -10...+130°C; pressure range 0...16bar; DN 200mm; length 60mm; nominal flange pressure ANSI150; flange thread UNC; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness

AC-A1M2I2-B-400-B01

actuator; for knife gate valve; series A; DN400; electrical actuator AUMA SAR 10.2; voltage 400V/3PH./50Hz; RWG 4-20mA outlet signal

BULB-250-DSV-B

butterfly valve with bare shaft; lug type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner FKM; nominal flange pressure PN10; medium temperature -10...+200°C; pressure range 0...6bar; DN 250mm; length 68mm

BUL5A-200-SSRQ-B-A

butterfly valve with bare shaft; series BUL-SSR-B-A; ATEX Ex II 2GD c TX; lug type; double eccentric; length according to EN558−1R20; body, disc AISI 316; shaft AISI 630; seat RTFE; medium temperature -10...+230°C; pressure range 0...25bar; DN 200mm; length 61mm; nominal flange pressure PN10

APKTGB0201

mounting bracket for butterfly valve; DN600-F16; diameter 60;key 18; actuator F16-55

F1P2A2-BS-150-01

knife gate valves with lever; wafer type; body WCB; gate AISI 304 polished;; soft sealed EPDM; packing PTFE/copper; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; medium temperature -5...+90 °C; DN 150mm; length 76mm; pressure range 0-10bar; with reinforced fixing ring;

C3J-BULY-300-DSE-01

inspection certificate EN-10204-3.1; for material, pressure and tightness

BULY-300-DSE-G-3C01

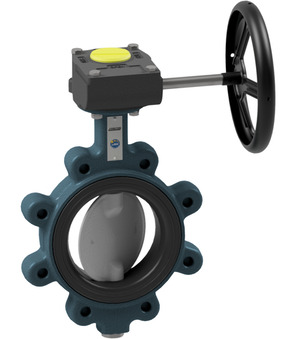

butterfly valve with manual gear box series BULY-DSE-G-3C01; lug type; length according to EN558−1R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; medium temperature -10...+130°C; pressure range 0...16bar; DN 300mm; length 78mm; nominal flange pressure ANSI150; flange thread UNC; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness

C3J-BULY-250-DSN-01

Inspection certificate EN-10204-3.1; For material, pressure and tightness

BULY-250-DSN-G-3C01

Butterfly valve with manual gear box; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; Pressure range 0...16bar; DN 250mm; Length 68mm; Nominal flange pressure ANSI150; Flange thread UNC; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

C3J-BULY-250-DSN-02

inspection certificate EN-10204-3.1; for material, pressure and tightness

BULY-250-DSN-G-3C02

Butterfly valve with manual gear box Series BULY-DSN-G-3C02; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated RAL5009 C5-High According to EN-ISO 12944; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; Pressure range 0...16bar; DN 250mm; Length 68mm; Nominal flange pressure ANSI150; Flange thread UNC; Stainless steel nameplate; Stainless steel screws; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

F1EX1H1-BS-300-B

knife gate valve with electric actuator; wafer type; rising stem; body cast iron EN-GJL-250; gate AISI 304; metal sealing; packing synthetic-PTFE with copper-scraper; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; voltage 100V/1/600Hz; DN 300mm; length 114mm; pressure range 0-3bar; actuator AUMA SAR10.2

RIG0038

Inconel-seat + packing for butterfly valve BUW9-150-CSIS-B; Inconel

BUUG-500-DXE-G

butterfly valve with manual gear box; double flange type; length according to EN 558-1 Base row 13; body ductile iron EN-GJS-400-15 epoxy coated; disc 1.4469; shaft AISI 420; liner EPDM; nominal flange pressure PN10/16; medium temperature -10...+125°C; pressure range 0...16bar; DN 500mm

GL177-14-12-K

globe valve series GL177; body brass; knurled screw; drain port hose nozzle 12mm; medium temperature -10...+90°C; pressure range 0...25bar; R 1/4"; DN 5mm; length 43,5mm

C3J-CH009-50-N

Inspection certificate EN-10204-3.1; For material, pressure and tightness

CTB-SEC20-I20-STW-01

Certificate according to EN 10204-2.2

GL177-18-12-K

globe valve series GL177; body brass; knurled screw; drain port hose nozzle 12mm; medium temperature -10...+90°C; pressure range 0...25bar; R 1/8"; DN 5mm; length 43,5mm

BWZ1VN2H2-5-150-BK01

knife gate valve with handwheel; wafer type; non rising stem; body cast iron EN-GJL-250; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; sealed in both directions; medium temperature -5...+90°C; DN 150mm; length 60mm; pressure range 0...10bar; Stainless steel mudguards; Special height: E = 800mm
